ASROCK H81M-VG4 R4.0 User Manual

H81M-VG4 R4.0
1
English

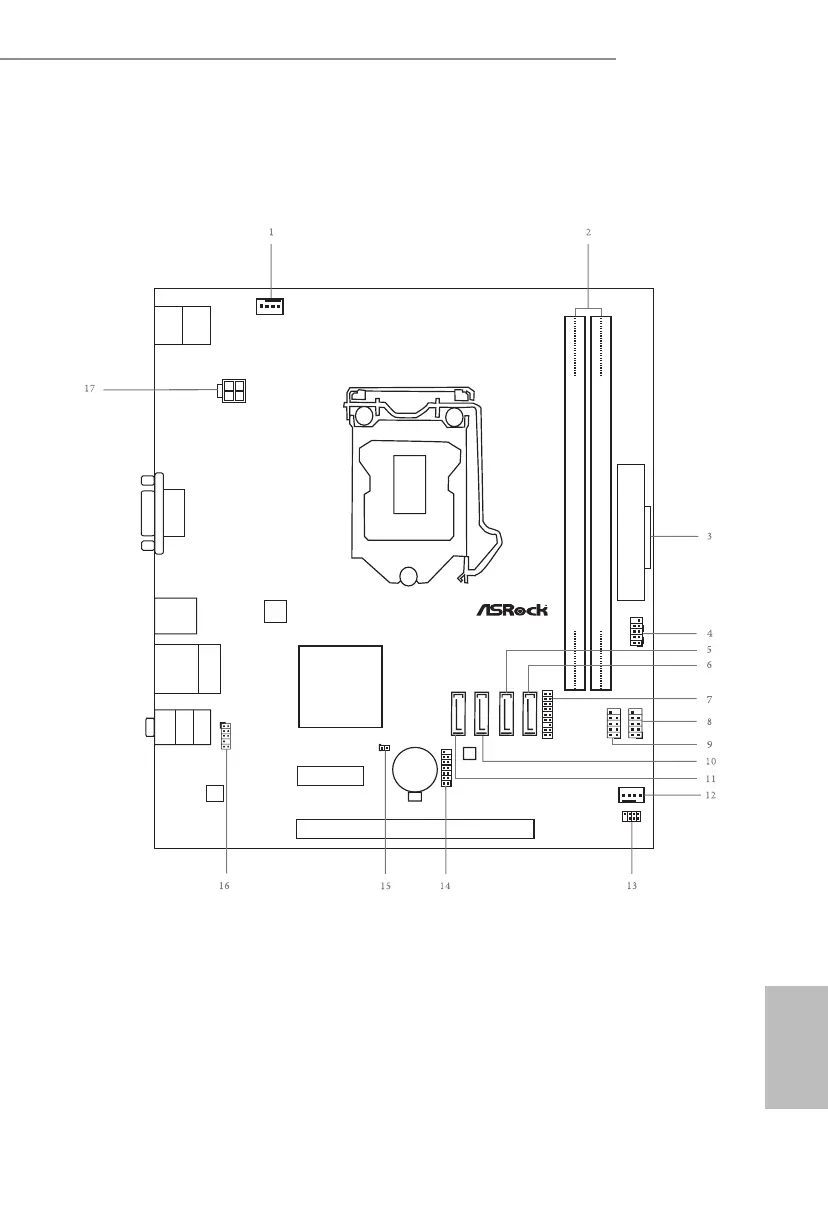

Motherboard Layout
Intel
H81
DDR3_B1 (64 bit, 240-pin module)
DDR3_A1 (64 bit, 240-pin module)
ATXPWR1
LAN
Top:
RJ-45
USB 2.0
T: USB2
B: USB3
1
1
USB 6_7 USB 4_5
H81M-VG4
CHA_FAN1
RoHS
CPU_ FAN 1
BIO S
ROM
Aud io
COD EC
PCIE2
PCIE1
USB 3. 2 Gen 1
T: USB3_ 0
B: USB 3_1
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
ATX1 2V 1
HDLE D RES ET
PLED PWRB TN
PANEL 1
1
1
HD_ AUDIO 1
TPM S1
1
SATA_ 0 SATA_ 2
CMOS
Battery
SATA_ 1 SATA_ 3
PS2
Keybo ard
PS2
Mouse
VGA1
1
SPK _CI1
CLRM OS1
1
SPI _TPM_ J1
1

ASROCK H81M-VG4 R4.0 Specifications

General

Form Factor	Micro ATX
Chipset	Intel H81
Socket	LGA 1150
Maximum Memory	16GB
Storage Interface	2 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s
Audio	Realtek ALC662 Audio Codec
Memory Standard	DDR3 1600/1333
Expansion Slots	1 x PCI Express 2.0 x16, 1 x PCI Express 2.0 x1
LAN	Realtek RTL8111GR
Video Outputs	1 x D-Sub (VGA)
Memory Slots	2 x DIMM
