ASROCK J3455-ITX User Manual

15
English
J4205-ITX
J3455-ITX

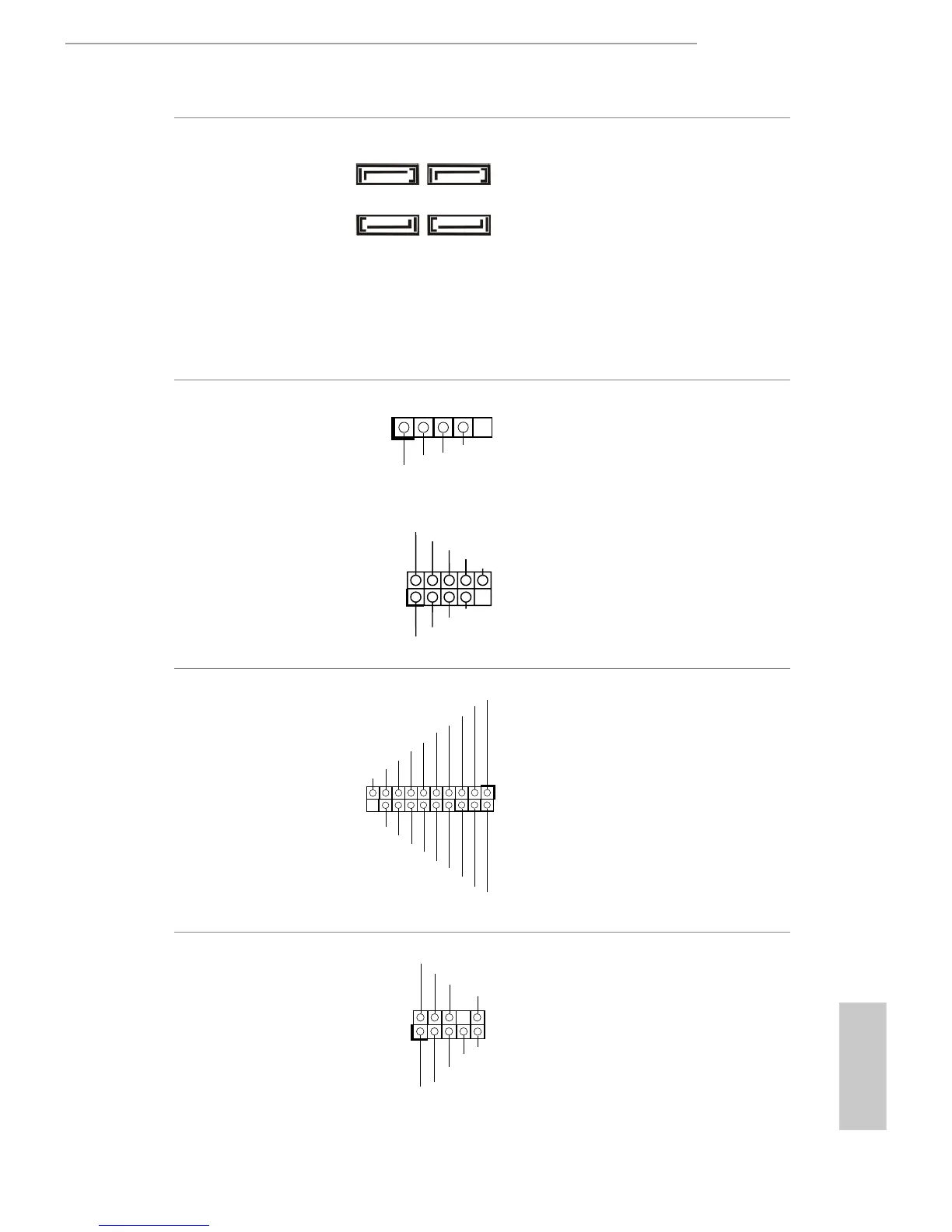

Serial ATA3 Connectors
(SATA3_1:
see p.5, No. 13)
(SATA3_2:
see p.5, No. 14)
(SATA3_A1:
see p.5, No. 16)
(SATA3_A2:
see p.5, No. 15)
ese four SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Headers
(4-pin USB6)
(see p.5, No. 12)
(9-pin USB_0_1)
(see p.5, No. 9)
Besides two USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard.
USB 3.0 Header
(19-pin USB3_0_1)
(see p.5, No. 11)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.5, No. 17)
is header is for
connecting audio devices
to the front audio panel.
1
ID
IntA_P_D +
IntA_P_D -
GN D
IntA_P_SSTX+
IntA_P_SSTX-
GN D
IntA_P_SSRX +
Vbu s
IntA_P_D +
IntA_P_D -
GN D
IntA_P_SSTX+
IntA_P_SSTX-
GN D
IntA_P_SSRX +
IntA_P_SSRX -
Vbu s
I
ntA_P_SSRX -
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
J_SENSE
OUT2_L
1
MIC_RET
PRESENCE#
GND
OUT2_R
MIC2_R
MIC2_L
OUT_RET
SATA3_A1 SATA3_1
SATA3_A2 SATA3_2
1
USB_PWR
P-
P+
GND

ASROCK J3455-ITX Specifications

General

Non-ECC	Yes
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor cores	4
Processor model	J3455
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Number of SATA II connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Supported storage drive interfaces	M.2
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Graphics card	HD Graphics 500
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
BIOS type	UEFI AMI
Trial software	AntiVirus
Bundled software	ASRock Power Gear ASRock XFast LAN Google Chrome Browser and Toolbar
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
