ASROCK J3455-ITX User Manual

46
English

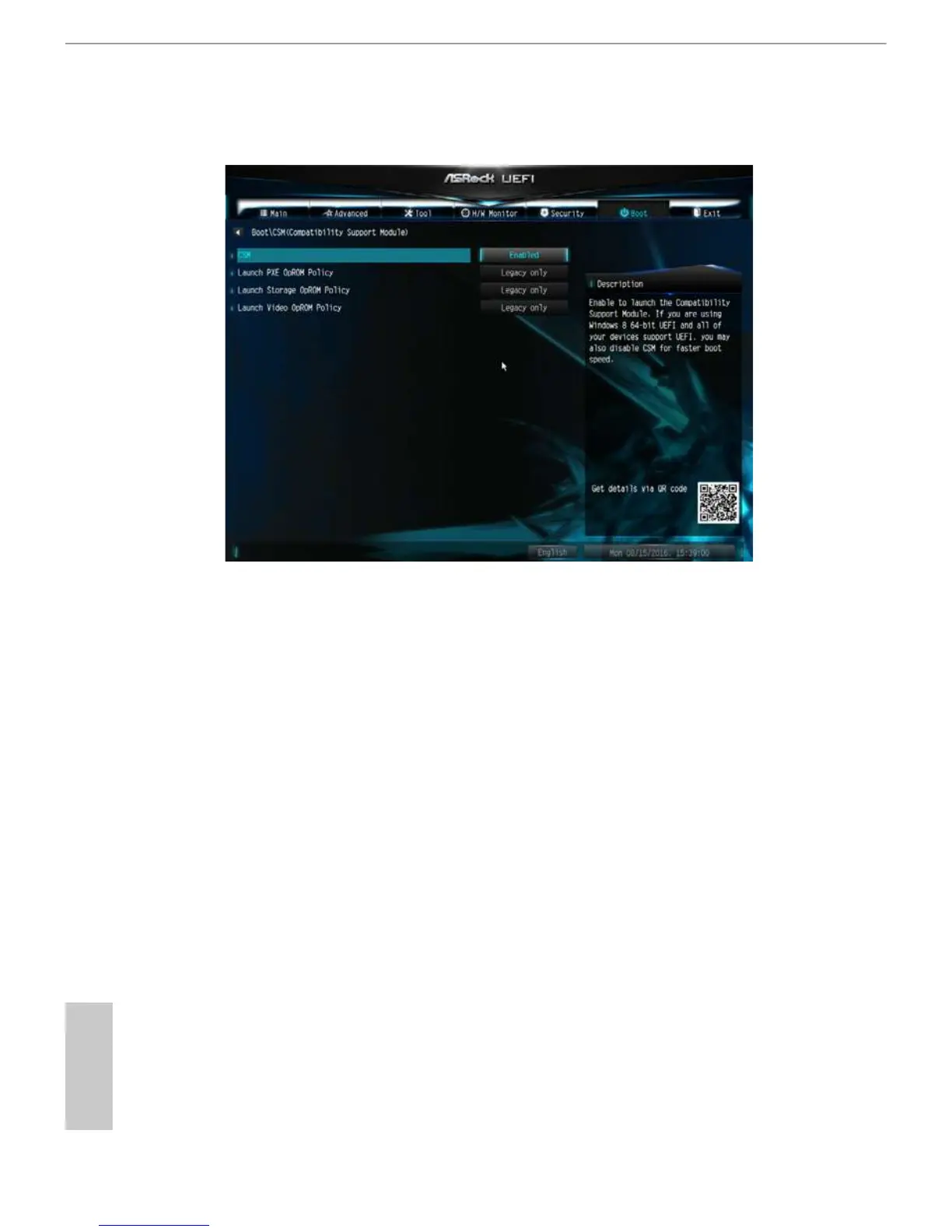

CSM (Compatibility Support Module)
CSM
Enable to launch the Compatibility Support Module. Please do not disable unless
you’re running a WHCK test. If you are using Windows 8.1 64-bit and all of your
devices support UEFI, you may also disable CSM for faster boot speed.
*e default of this option is set to [Disabled] (UEFI mode). You can change the
Boot Mode setting from UEFI mode to Legacy BIOS mode by set CSM to [Enabled].
Launch PXE OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only.
Launch Storage OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only.
Launch Video OpROM Policy
Select UEFI only to run those that support UEFI option ROM only. Select Legacy
only to run those that support legacy option ROM only.

ASROCK J3455-ITX Specifications

General

Non-ECC	Yes
Memory slots type	SO-DIMM
Number of memory slots	2
Supported memory types	DDR3-SDRAM, DDR3L-SDRAM
Maximum internal memory	16 GB
Supported memory clock speeds	1333, 1600, 1866 MHz
Processor cores	4
Processor model	J3455
Processor socket	-
Processor manufacturer	Intel
Compatible processor series	Intel® Celeron®
Number of SATA II connectors	0
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
Supported storage drive interfaces	M.2
USB connector type	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Component for	PC
Power source type	ATX
Audio output channels	7.1 channels
Motherboard form factor	mini ITX
Graphics card	HD Graphics 500
DirectX version	12.0
Maximum resolution	4096 x 2160 pixels
BIOS type	UEFI AMI
Trial software	AntiVirus
Bundled software	ASRock Power Gear ASRock XFast LAN Google Chrome Browser and Toolbar
Harmonized System (HS) code	84733020

Weight and Dimensions

Width	170 mm
