ASROCK K7S41GX2 User Manual

1010
1010
10
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout

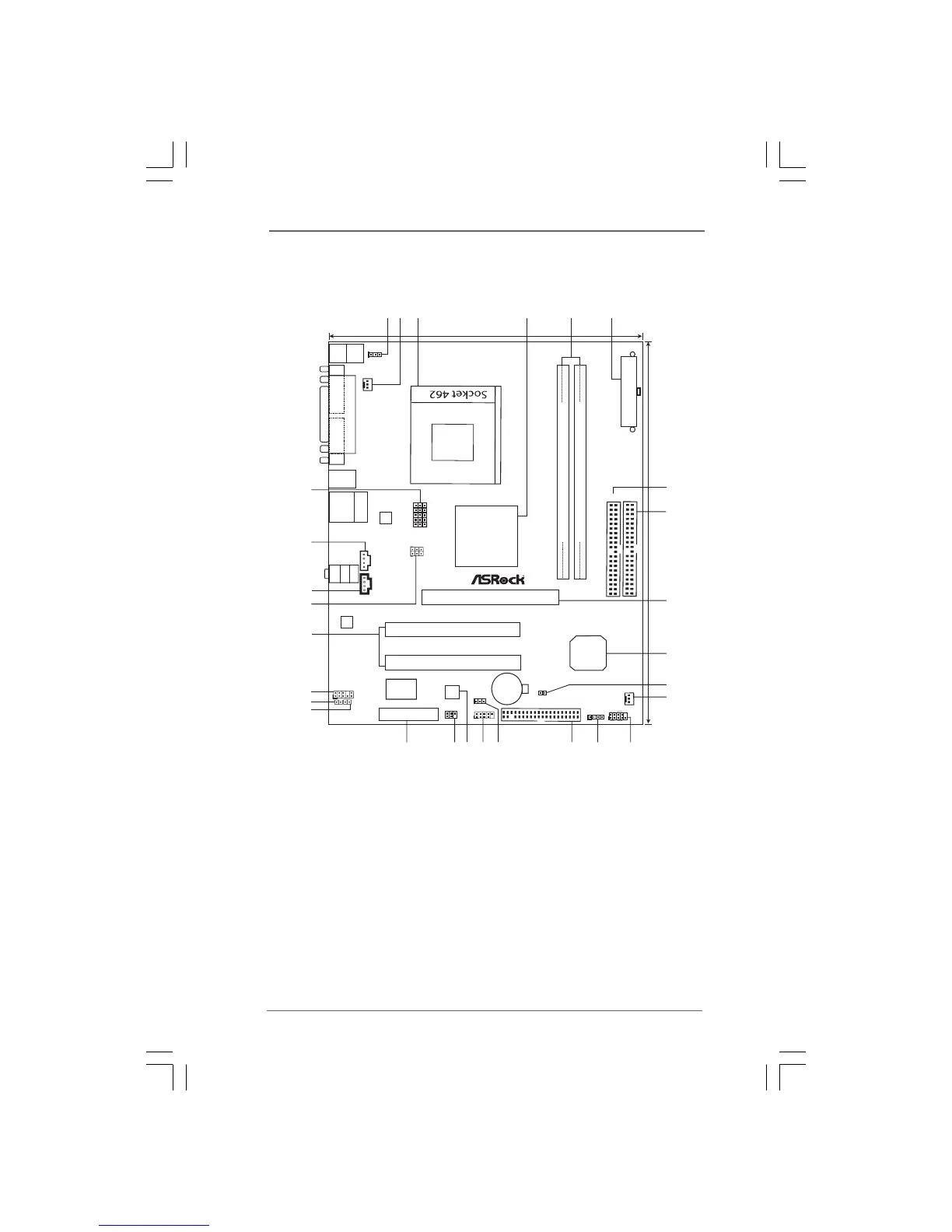

1.3 Motherboard Layout
1 PS2_USB_PWR1 Jumper 15 Floppy Connector (FLOPPY1)
2 CPU Fan Connector (CPU_FAN1) 16 USB_PWR1 Jumper
3 CPU Socket 17 USB 2.0 Connector (USB45, Blue)
4 North Bridge Controller 18 Flash Memory
5 184-pin DDR DIMM Slots (DDR 1- 2) 19 Infrared Module Connector (IR1)
6 ATX Power Connector (ATXPWR1) 20 AMR Slot (AMR1)
7 Secondary IDE Connector (IDE2, Black) 21 JL1 Jumper
8 Primary IDE Connector (IDE1, Blue) 22 JR1 Jumper
9 AGP Slot (1.5V_AGP1) 23 Front Panel Audio Connector (AUDIO1)
10 South Bridge Controller 24 PCI Slots (PCI 1- 2)
11 Clear CMOS (CLRCMOS1) 25 FSB Select Jumpers (FSB_SEL0/FSB_SEL1)
12 Chassis Fan Connector (CHA_FAN1) 26 Internal Audio Connector: CD1 (Black)
13 System Panel Connector (PANEL1) 27 Internal Audio Connector: AUX1 (White)
14 Chassis Speaker Connector (SPEAKER 1) 28 J1 Jumpers
AMR1
ATXPWR1
IDE2 IDE1
HDLED RST
PLED PWRBTN
1
PANEL 1
SPEAKER1
1
CHA_FAN1
CMOS
Battery
USB45
1
CLRCMOS1
FLOPPY1
IR1
1
PCI 2
PCI 1
1.5V_AGP1
Super
I/O
2Mb
BIOS
21
1
AUDIO1
JR1 JL1
22
23
24
25
AUDIO
CODEC
26
28
PS2_USB_PWR1
1
CPU_FAN1
LAN
PHY
DDR1 (64 bit, 184-pin module)
DDR2 (64 bit, 184-pin module)
SiS
963L
SiS
741GX
Chipset
USB 2.0
T: USB 2
B: USB3
USB 2.0
T: USB 0
B: USB1
Top:
RJ-45
FSB_SEL1
1
1
FSB_SEL0
19.8cm (7.8-in)
24.4cm (9.6-in)
1
2
45
3
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
27
1
J1
RoHS
ErP/EuP Ready
Designed in Taipei
USB_PWR1
1
PS2
Mouse
PS2
Keyboard
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PARALLEL PORT
VGA1
COM1
K7S41GX2

ASROCK K7S41GX2 Specifications

General

Brand	ASROCK
Model	K7S41GX2
Category	Motherboard
Language	English
