FID Jumpers
(FID0, FID1, FID2, FID3,FID4)
(see p.7 item 2)
Note: The set of FID jumpers are only for advanced users to adjust the multiplier of CPU.
Please follow the table below to adjust the multiplier of CPU. However, the system will
work well without the adjustment of multiplier. You do not have to adjust the multiplier
for normal usage.
Multiplier FID0 FID1 FID2 FID3 FID4
I5.0x 2-3 2-3 1-2 2-3 2-3
5.5x 1-2 2-3 1-2 2-3 2-3
6.0x 2-3 1-2 1-2 2-3 2-3
6.5x 1-2 1-2 1-2 2-3 2-3
7.0x 2-3 2-3 2-3 1-2 2-3
7.5x 1-2 2-3 2-3 1-2 2-3
8.0x 2-3 1-2 2-3 1-2 2-3
8.5x 1-2 1-2 2-3 1-2 2-3
9.0x 2-3 2-3 1-2 1-2 2-3
9.5x 1-2 2-3 1-2 1-2 2-3
10.0x 2-3 1-2 1-2 1-2 2-3
10.5x 1-2 1-2 1-2 1-2 2-3
11.0x 2-3 2-3 2-3 2-3 2-3
11.5x 1-2 2-3 2-3 2-3 2-3
12.0x 2-3 1-2 2-3 2-3 2-3
12.5x 1-2 1-2 2-3 2-3 2-3
Multiplier FID0 FID1 FID2 FID3 FID4
13.0x 2-3 2-3 1-2 2-3 2-3
13.5x 1-2 2-3 1-2 2-3 2-3
14.0x 2-3 1-2 1-2 2-3 2-3
15.0x 2-3 2-3 2-3 1-2 2-3
16.0x 2-3 1-2 2-3 1-2 2-3
16.5x 1-2 1-2 2-3 1-2 2-3
17.0x 2-3 2-3 1-2 1-2 2-3
18.0x 1-2 2-3 1-2 1-2 2-3
19.0x 1-2 2-3 2-3 2-3 2-3
20.0x 1-2 1-2 2-3 2-3 2-3
21.0x 1-2 1-2 1-2 2-3 2-3
22.0x 1-2 2-3 2-3 1-2 2-3
23.0x 2-3 1-2 1-2 1-2 2-3
24.0x 1-2 1-2 1-2 1-2 2-3
For example, “Athlon XP 2000+” is an 1666MHz CPU: 12.5 (Multiplier) X 133MHz (External frequency) = 1666MHz

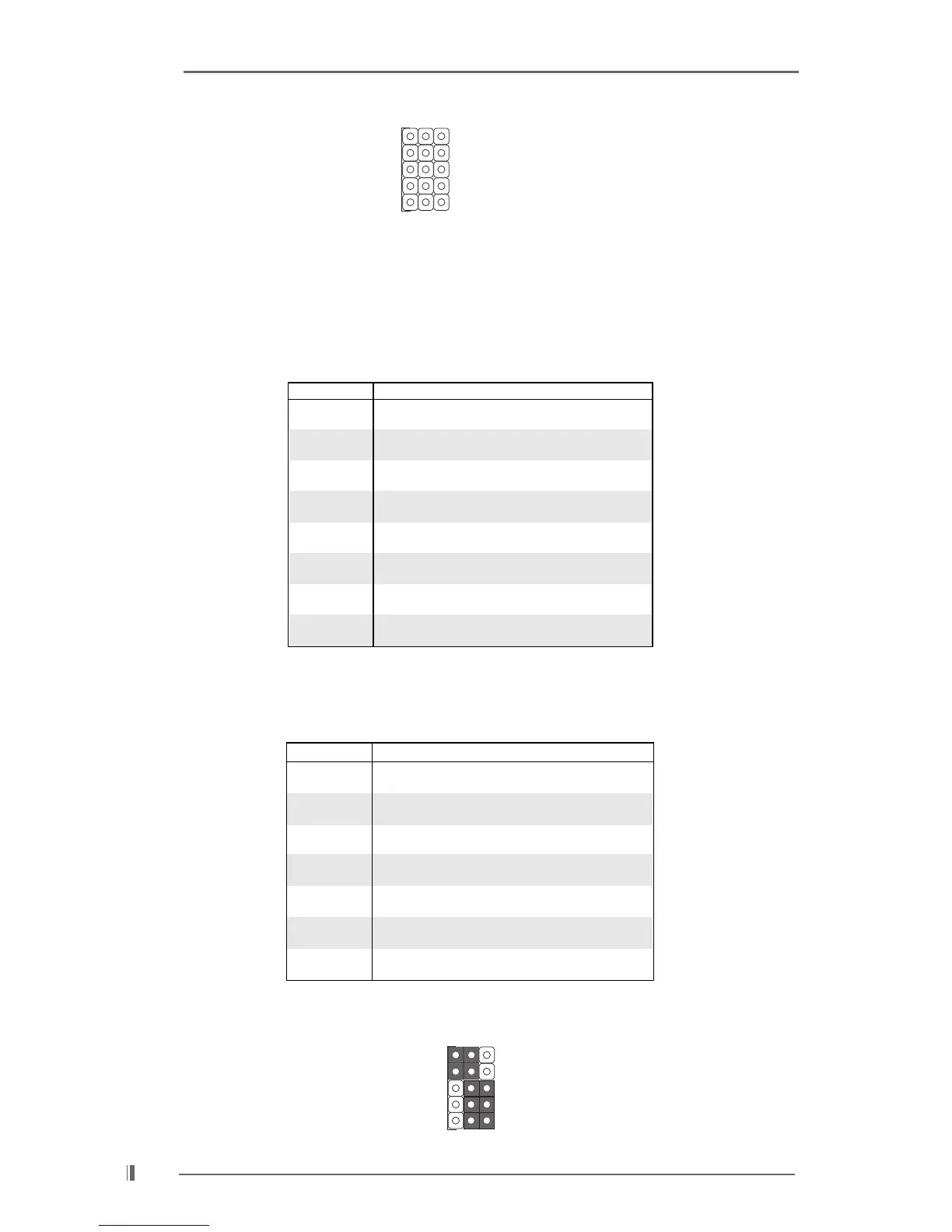

FID jumpers setting:
1
1
1
1
1
FID0
FID1
FID2
FID3
FID4
1
1
1
1
1
FID0
FID1
FID2
FID3
FID4
