ASROCK M3A770DE - V1.0 User Manual

1010
1010
10

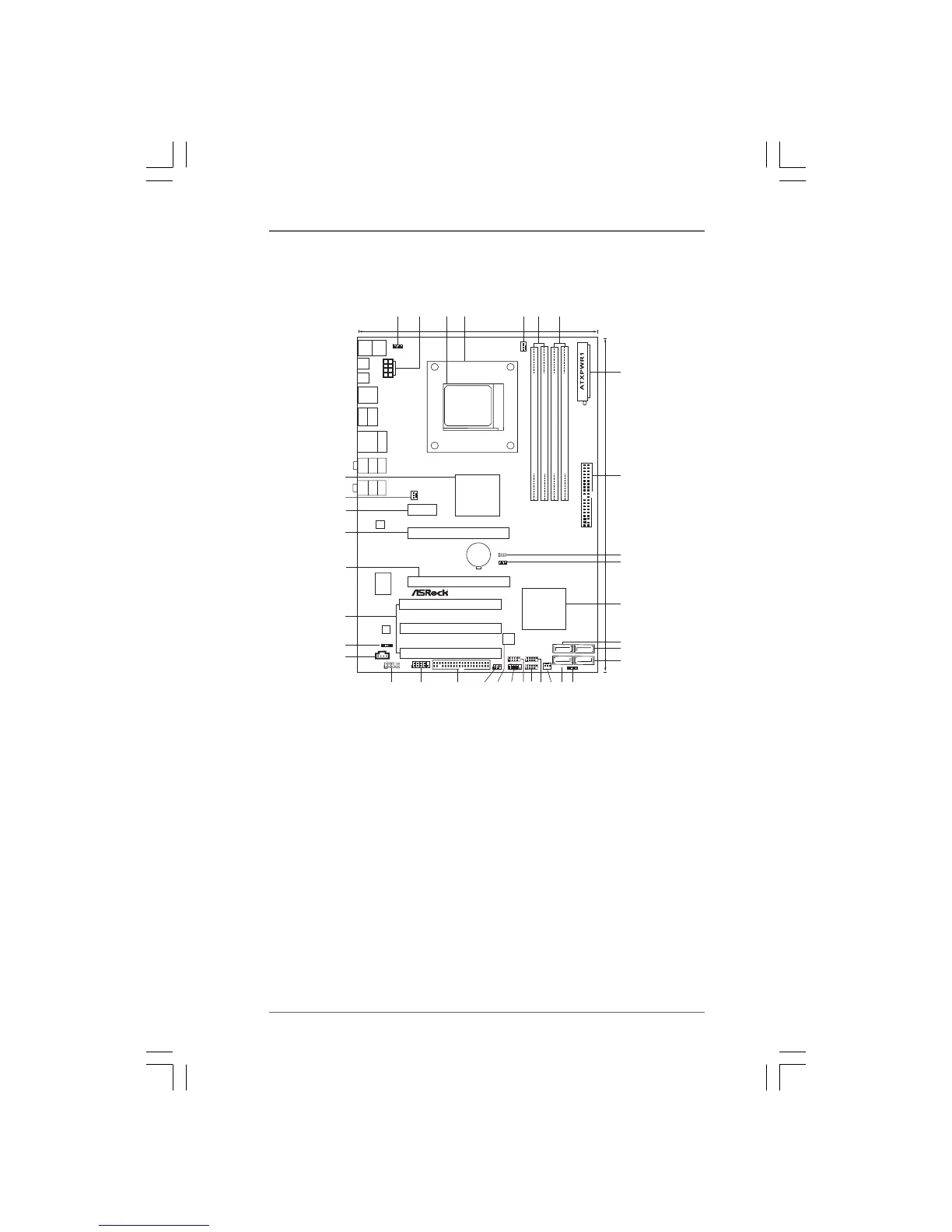

1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout1.3 Motherboard Layout
1.3 Motherboard Layout
IDE1
SOCKET AM3
FSB800
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
FSB800
DDR3_A2 (64 bit, 240-pin module)
DDR3_B2 (64 bit, 240-pin module)
AMD
SB710
Chipset
PS2_USB_PW1
1
ATX 12V1
CPU_FAN1
8Mb
BIOS
CMOS
BATTERY
CLRCMOS1
1
COM1
LAN
PHY
1
AUDIO
CODEC
Super
I/O
IR1
1
CD1
HD_AUDIO1
1
PCIE1
1
HDMI_SPDIF1
FLOPPY1
HDLED RESET
PLED PWRBTN
1
PANEL 1
CHA_FAN1
SPEAKER1
1
USB8_9
1
USB6_7
1
SATAII_2
HT 3.0
140W CPU
20.8cm (8.2-in)
30.5cm (12.0-in)
6
7
1
2
4
3
5
8
9
10
11
12
13
14
15
16
17
18
19
20
2122
23
24
252627
28
29
30
31
32
33
AMD
770
Chipset
PCIE2
PCIE3
PCI1
PCI2
PCI3
M3A770DE
SATAII_4
SATAII_1
SATAII_3
Top:
SIDE SPK
Center:
REAR SPK
Bottom:
CTR BASS
Top:
LINE IN
Center:
FRONT
Bottom:
MIC IN
PS2
Mouse
PS2
Keyboard
USB 2.0
T:USB0
B: USB1
Top:
RJ-45
Coaxial
SPDIF
Optical
SPDIF
USB 2.0
T:USB4
B: USB5
FSB2.6GHz DDR3 1600 Dual Channel
PCI Express 2.0
EuP Ready
RoHS
Phenom II
USB10_11
1
PWR_FAN1
34
eSATAII/USB3
USB2
AM3
EUP_LAN
1
35
1 PS2_USB_PW1 Jumper 19 USB 2.0 Header (USB8_9, Blue)
2 ATX 12V Power Connector (ATX12V1) 20 USB 2.0 Header (USB6_7, Blue)
3 AM3 CPU Socket 21 USB 2.0 Header (USB10_11, Blue)
4 CPU Heatsink Retention Module 22 System Panel Header (PANEL1, Orange)
5 CPU Fan Connector (CPU_FAN1) 23 SPI Flash Memory (8Mb)
6 2 x 240-pin DDR3 DIMM Slots 24 Infrared Module Header (IR1)
(Dual Channel A: DDR3_A1, DDR3_B1; Blue) 25 Floppy Connector (FLOPPY1)
7 2 x 240-pin DDR3 DIMM Slots 26 Serial Port Connector (COM1)
(Dual Channel B: DDR3_A2, DDR3_B2; White) 27 Front Panel Audio Header
8 ATX Power Connector (ATXPWR1) (HD_AUDIO1, Lime)
9 Primary IDE Connector (IDE1, Blue) 28 Internal Audio Connector: CD1 (Black)
10 Clear CMOS Jumper (CLRCMOS1) 29 HDMI_SPDIF Header
11 EUP LAN Jumper (EUP_LAN) (HDMI_SPDIF1, Yellow)
12 Southbridge Controller 30 PCI Slots (PCI1- 3)
13 Primary SATAII Connector (SATAII_1, Red) 31 PCI Express 2.0 x16 Slot
14 Third SATAII Connector (SATAII_3, Red) (PCIE3; Orange)
15 Fourth SATAII Connector (SATAII_4, Red) 32 PCI Express 2.0 x16 Slot (PCIE2; Green)
16 Chassis Speaker Header 33 PCI Express x1 Slot (PCIE1; Green)
(SPEAKER 1, Purple) 34 Power Fan Connector (PWR_FAN1)
17 Secondary SATAII Connector (SATAII_2, Red) 35 Northbridge Controller
18 Chassis Fan Connector (CHA_FAN1)
