AII Hard Disk Setup GuideAII Hard Disk Setup Guide

AII Hard Disk Setup Guide

Before installing SATAII hard disk to your computer, please carefully read below

SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be

at SATAII mode, which operate with the best performance. In order to enable SATAII

function, please follow the below instruction with different vendors to correctly adjust

your SATAII hard disk to SATAII mode in advance; otherwise, your SATAII hard disk

may fail to run at SATAII mode.

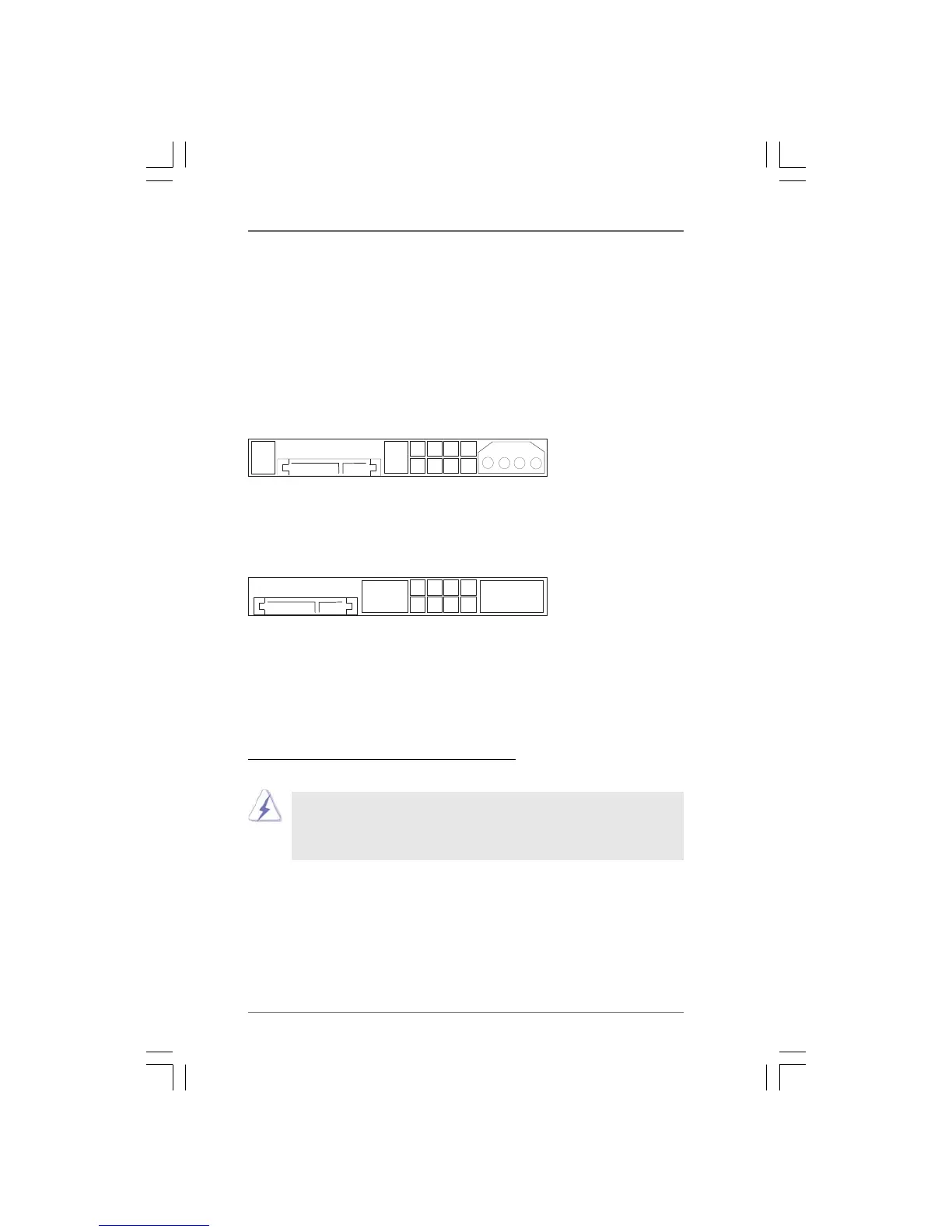

Western Digital

If pin 5 and pin 6 are shorted, SATA 1.5Gb/s will be enabled.

On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the

jumpers from pin 5 and pin 6.

SAMSUNG

If pin 3 and pin 4 are shorted, SATA 1.5Gb/s will be enabled.

On the other hand, if you want to enable SATAII 3.0Gb/s, please remove the

jumpers from pin 3 and pin 4.

HITACHI

Please use the Feature Tool, a DOS-bootable tool, for changing various ATA

features. Please visit HITACHI’s website for details:

http://www.hitachigst.com/hdd/support/download.htm

1357

2468

1357

2468

The above examples are just for your reference. For different SATAII hard

disk products of different vendors, the jumper pin setting methods may not

be the same. Please visit the vendors’ website for the updates.
