2727
2727
27
C
B
GND
+5 V
SPDIFOUT
blue
black
blue
black
GND
SPDIFOUT
blue
black
GND
SPDIFOUT
A

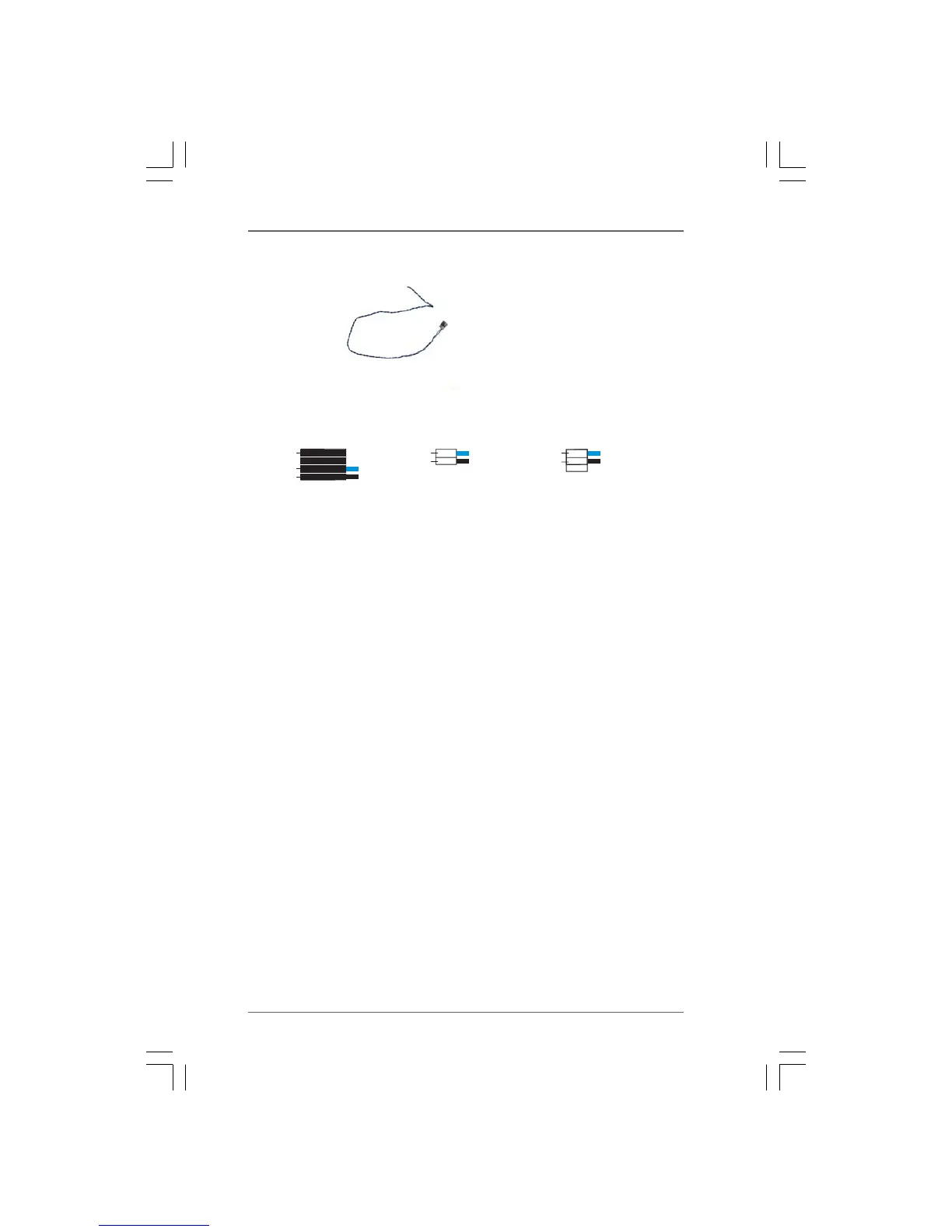

HDMI_SPDIF Cable Please connect the black end (A)
(Optional) of HDMI_SPDIF cable to the
HDMI_SPDIF header on the
motherboard. Then connect the
white end (B or C) of
HDMI_SPDIF cable to the
HDMI_SPDIF connector of HDMI
VGA card.
A. black end B. white end (2-pin) C. white end (3-pin)
