ASRock N68C-GS FX / N68C-S FX Motherboard
EnglishEnglish EnglishEnglish
English
Motherboard LayoutMotherboard Layout
Motherboard LayoutMotherboard Layout
Motherboard Layout
(N68C(N68C
(N68C(N68C
(N68C
--
--
-
GS FX / N68CGS FX / N68C
GS FX / N68CGS FX / N68C
GS FX / N68C
-S FX)-S FX)
-S FX)-S FX)
-S FX)

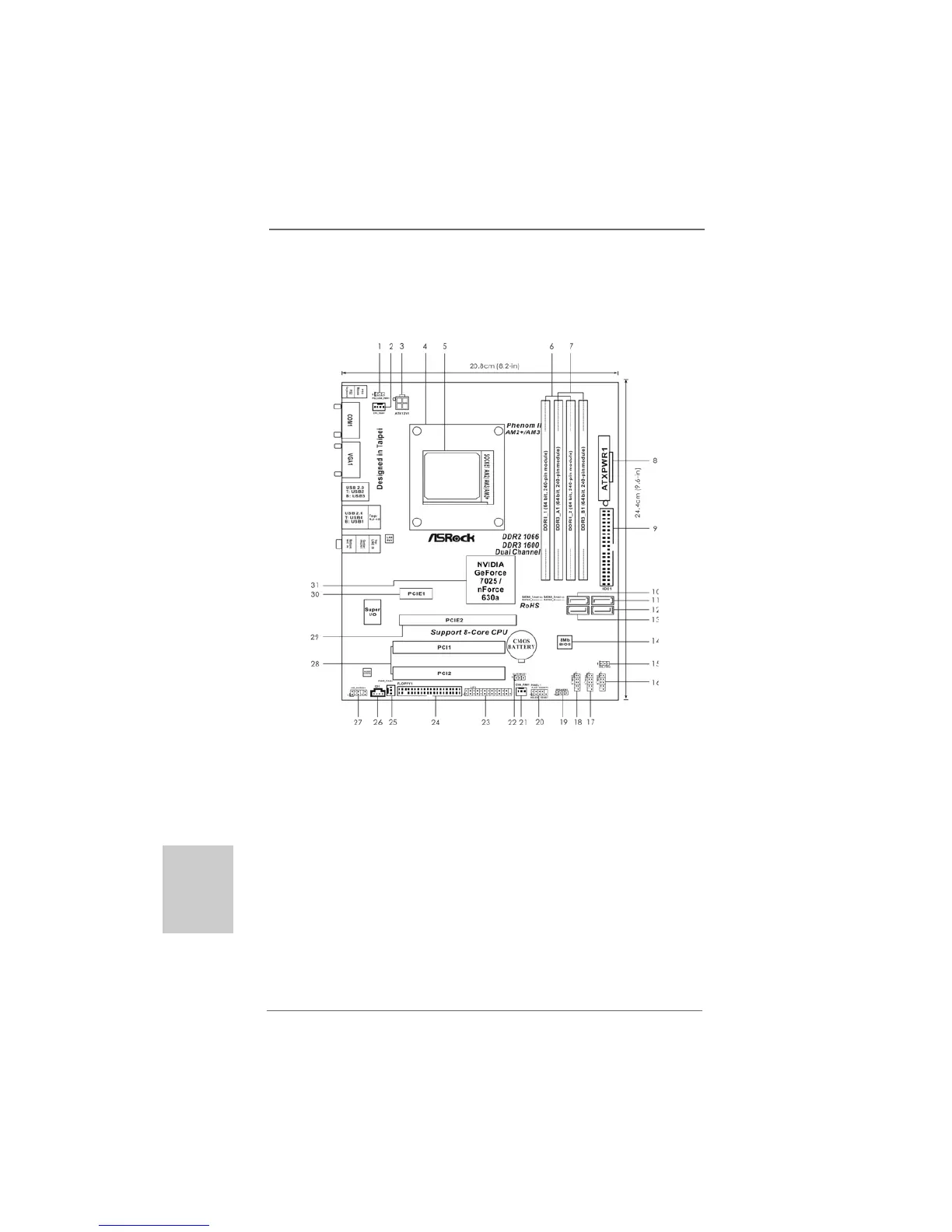

1 PS2_USB_PWR1 Jumper 16 USB 2.0 Header (USB8_9, Blue)
2 CPU Fan Connector (CPU_FAN1) 17 USB 2.0 Header (USB6_7, Blue)
3 ATX 12V Power Connector (ATX12V1) 18 USB 2.0 Header (USB4_5, Blue)
4 CPU Heatsink Retention Module 19 Chassis Speaker Header
5 AMD CPU Socket (SPEAKER 1, White)
6 2 x 240-pin DDR2 DIMM Slots 20 System Panel Header (PANEL1, White)
(Dual Channel: DDRII_1, DDRII_2; Yellow) 21 Chassis Fan Connector (CHA_FAN1)
7 2 x 240-pin DDR3 DIMM Slots 22 Clear CMOS Jumper (CLRCMOS1)
(Dual Channel: DDR3_A1, DDR3_B1; Blue) 23 Print Port Header (LPT1, Purple)
8 ATX Power Connector (ATXPWR1) 24 Floppy Connector (FLOPPY1)
9 Primary IDE Connector (IDE1, Blue) 25 Power Fan Connector (PWR_FAN1)
10 Primary SATAII Connector (SATAII_1 (PORT 0.0)) 26 Internal Audio Connector: CD1 (White)
11 Third SATAII Connector (SATAII_3 (PORT 1.0)) 27 Front Panel Audio Header
12 Fourth SATAII Connector (SATAII_4 (PORT 1.1)) (HD_AUDIO1, White)
13 Secondary SATAII Connector 28 PCI Slots (PCI1- 2)
(SATAII_2 (PORT 0.1)) 29 PCI Express x16 Slot (PCIE2)
14 SPI Flash Memory (8Mb) 30 PCI Express x1 Slot (PCIE1)
15 USB_PWR2 Jumper 31 NVIDIA GeForce 7025 / nForce 630a

ASROCK N68C-GS FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333, 1600 MHz
System bus rate	2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	1000 MHz
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL
Component for	PC
Power source type	ATX
Motherboard chipset	NVIDIA nForce 630a
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	NVIDIA
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA II
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8211CL
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
