ASRock N68C-GS FX / N68C-S FX Motherboard
EnglishEnglish EnglishEnglish
English

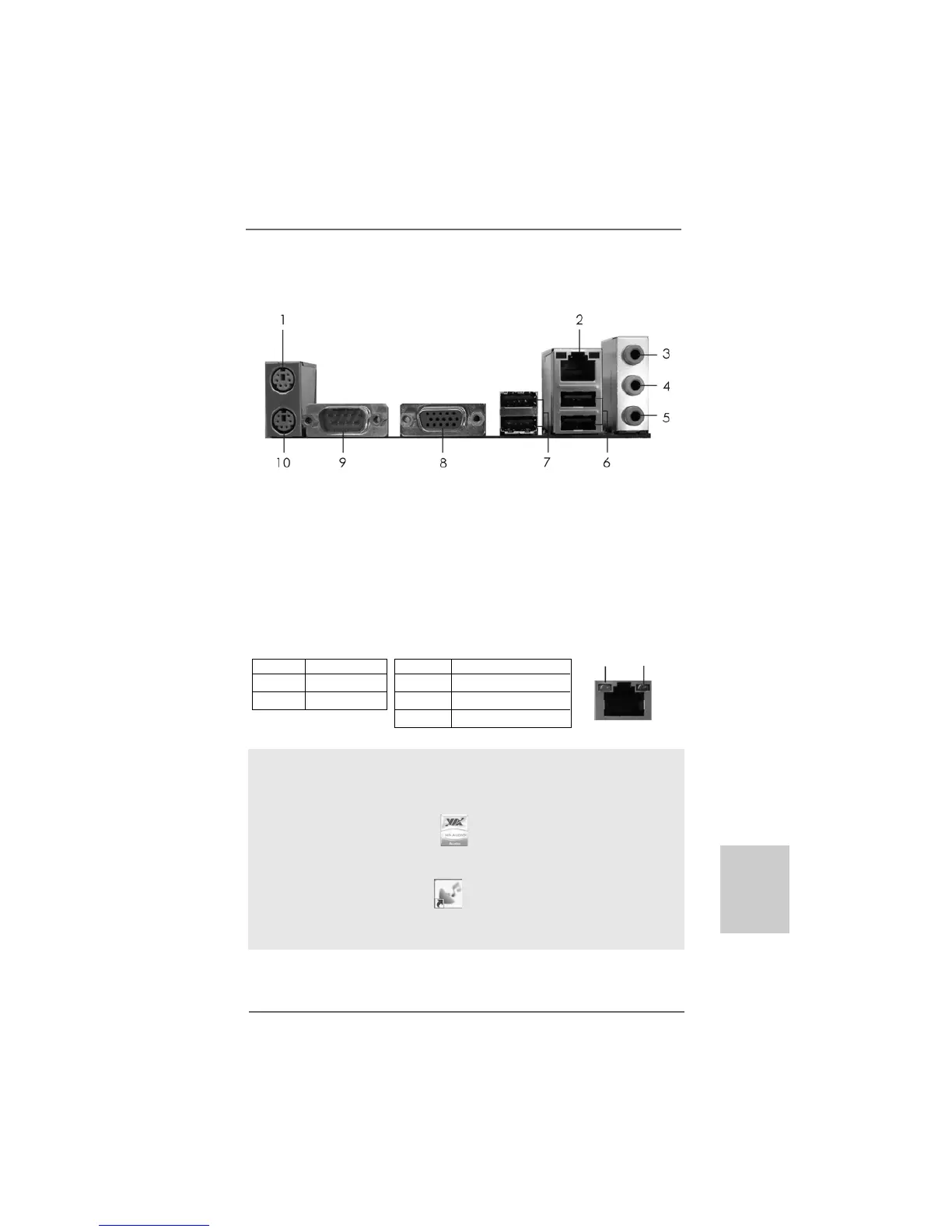

I/O PI/O P
I/O PI/O P
I/O P
anel (N68Canel (N68C
anel (N68Canel (N68C
anel (N68C
--
--
-
GS FX)GS FX)
GS FX)GS FX)
GS FX)
1 PS/2 Mouse Port (Green) 6 USB 2.0 Ports (USB01)
* 2 RJ-45 Port 7 USB 2.0 Ports (USB23)
3 Line In (Light Blue) 8 VGA Port
4 Front Speaker (Lime) 9 COM Port
5 Microphone (Pink) 10 PS/2 Keyboard Port (Purple)
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front
panel audio header. After restarting your computer, you will find “VIA HD Audio Deck” tool on
your system. Please follow below instructions according to the OS you install.
For Windows
®
XP / XP 64-bit OS:
Please click “VIA HD Audio Deck” icon , and click “Speaker”. Then you are allowed to
select “2 Channel” or “4 Channel”. Click “Power” to save your change.
For Windows
®
7 / 7 64-bit / Vista
TM
/ Vista
TM
64-bit OS:
Please click “VIA HD Audio Deck” icon , and click “Advanced Options” on the left side
on the bottom. In “Advanced Options” screen, select “Independent Headphone”, and click
“OK” to save your change.
* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED
indications.
LAN Port LED Indications
Activity/Link LED SPEED LED
Status Description Status Description
Off No Activity Off 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
Green 1Gbps connection
LAN Port
ACT/LINK
LED
SPEED
LED

ASROCK N68C-GS FX Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR2-SDRAM, DDR3-SDRAM
Maximum internal memory	8 GB
Supported memory clock speeds	533, 667, 800, 1066, 1333, 1600 MHz
System bus rate	2 GT/s
Processor socket	Socket AM3+
Processor manufacturer	AMD
Compatible processor series	AMD Phenom II X2, AMD Phenom II X3, AMD Phenom II X4, AMD Phenom II X6
Maximum number of SMP processors	1
Processor system buses supported	1000 MHz
USB 2.0 connectors	3
USB 3.2 Gen 1 (3.1 Gen 1) connectors	0
PS/2 ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Certification	FCC, CE, WHQL
Component for	PC
Power source type	ATX
Motherboard chipset	NVIDIA nForce 630a
Audio output channels	5.1 channels
Motherboard form factor	micro ATX
Motherboard chipset family	NVIDIA
RAID levels	0, 1, 0+1, 5, JBOD
Supported storage drive interfaces	SATA II
Graphics card	GeForce 7025
Maximum graphics card memory	256 MB
Parallel processing technology support	-
Cables included	SATA
LAN controller	Realtek RTL8211CL
Ethernet interface type	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1
BIOS memory size	8 Mbit

Weight and Dimensions

Depth	208 mm
Width	244 mm
