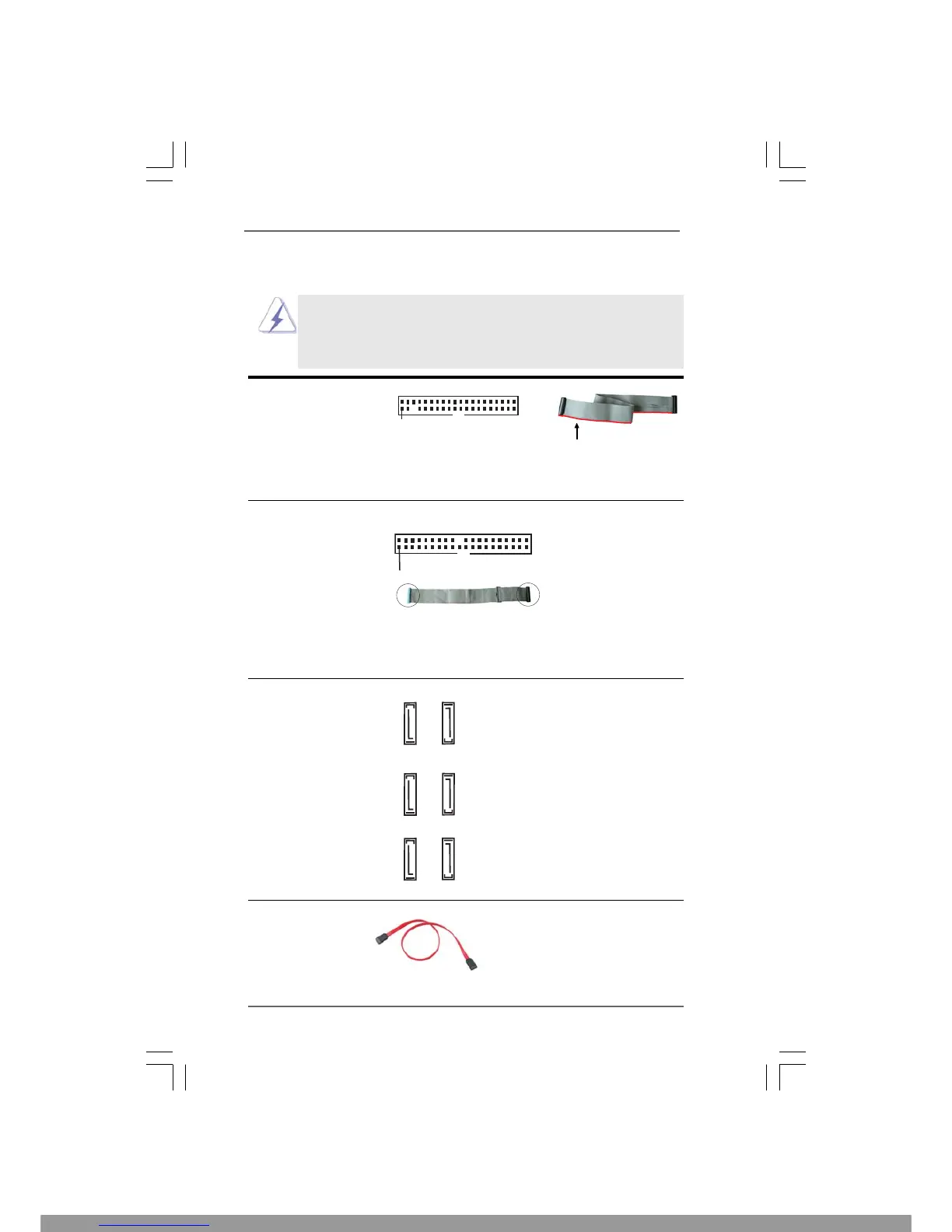

2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors2.8 Onboard Headers and Connectors
2.8 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper
caps over the headers and connectors will cause permanent dam-
age of the motherboard!
FDD connector
(33-pin FLOPPY1)
(see p.10 No. 26)
Note: Make sure the red-striped side of the cable is plugged into Pin1 side of the
connector.
Primary IDE connector (Blue)
(39-pin IDE1, see p.10 No. 9)
Note: Please refer to the instruction of your IDE device vendor for the details.
Serial ATAII Connectors These six Serial ATAII (SATAII)
(SATAII_1 (Port 0): connectors support SATA data
see p.10, No. 13) cables for internal storage
(SATAII_2 (Port 1): devices. The current SATAII
see p.10, No. 14) interface allows up to 3.0 Gb/s
(SATAII_3 (Port 2): data transfer rate.
see p.10, No. 15)
(SATAII_4 (Port 3):
see p.10, No. 16)
(SATAII_5 (Port 4):
see p.10, No. 18)
(SATAII_6 (Port 5):
see p.10, No. 17)
connect the black end
to the IDE devices
connect the blue end
to the motherboard
IDE1
PIN1
80-conductor ATA 66/100/133 cable
Serial ATA (SATA) Either end of the SATA data cable
Data Cable can be connected to the SATA /
(Optional) SATAII hard disk or the SATAII
connector on this motherboard.
SATAII_5 (Port 4) SATAII_3 (Port 2) SATAII_1 (Port 0)
SATAII_6 (Port 5) SATAII_4 (Port 3) SATAII_2 (Port 1)
