ASROCK P67 Pro Setup Guide

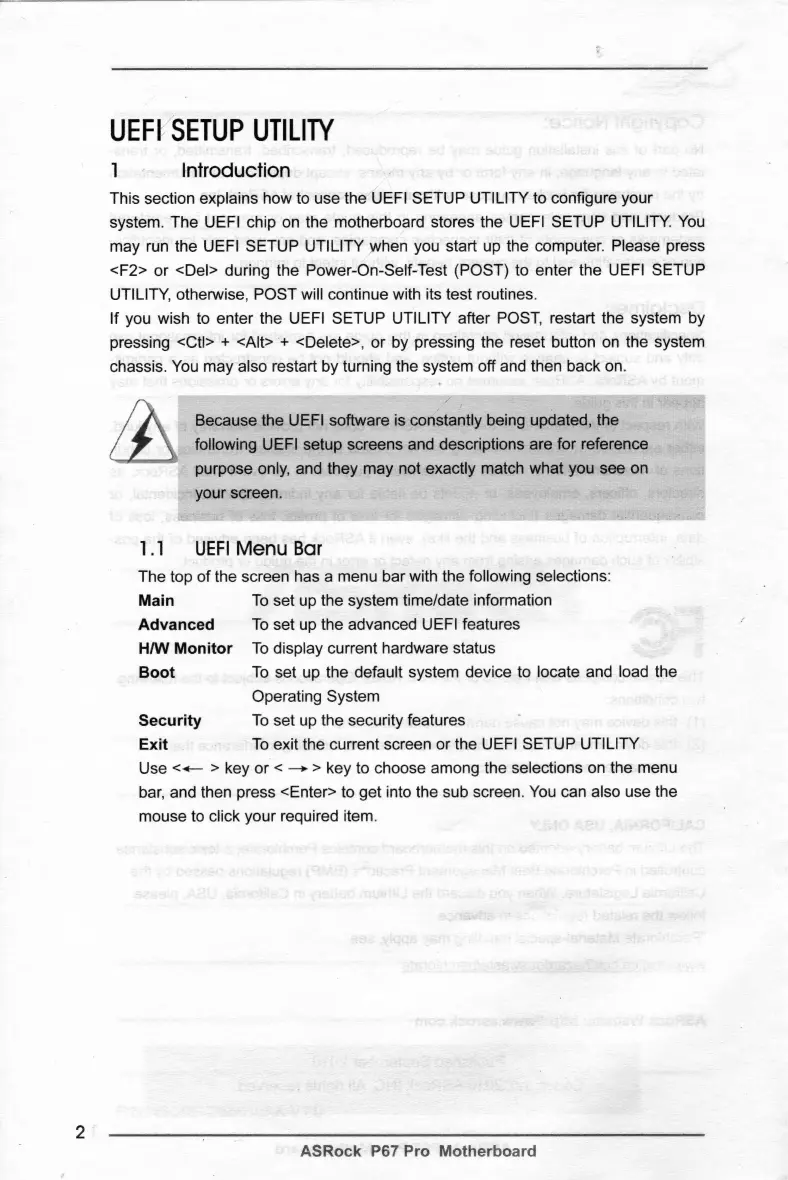

UEFI SETUP UTILITY
1 Introduction
This section explains how to use the UEFI SETUP UTILITY to configure your
system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You
may run the UEFI SETUP UTILITY when you start up the computer. Please press
<F2> or <Del> during the Power-On-Self-Test (POST) to enter the UEFI SETUP
UTILITY, otherwise, POST will continue with its test routines.
If you wish to enter the UEFI SETUP UTILITY after POST, restart the system by
pressing <Ctl> + <Alt> + <Delete>, or by pressing the reset button on the system
chassis. You may also restart by turning the system off and then back on.
_
Because
the
UEFI
software
is
constantly
being
updated,
the
oo.
\
_
following
UEFI
setup
screens
and
descriptions
are
for
reference
—s
~~
purpose
only,
and
they
may
not
exactly
match
what
you
see
on
|
-
your
screen.
|
—
ee
1.1 UEFIl Menu Bar
The top of the screen has a menu bar with the following selections:
Main To set up the system time/date information
Advanced To set up the advanced UEFI features
H/W Monitor To display current hardware status
Boot To set up the default system device to locate and load the
Operating System
Security To set up the security features
Exit To exit the current screen or the UEFI SETUP UTILITY
Use <«<— > key or < —» > key to choose among the selections on the menu
bar, and then press <Enter> to get into the sub screen. You can also use the
mouse to click your required item.
ASRock P67 Pro Motherboard

ASROCK P67 Pro Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA connectors	6
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Certification	FCC, CE, WHQL
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1

Weight and Dimensions

Depth	203 mm
Width	305 mm
