ASROCK P67 Pro Setup Guide

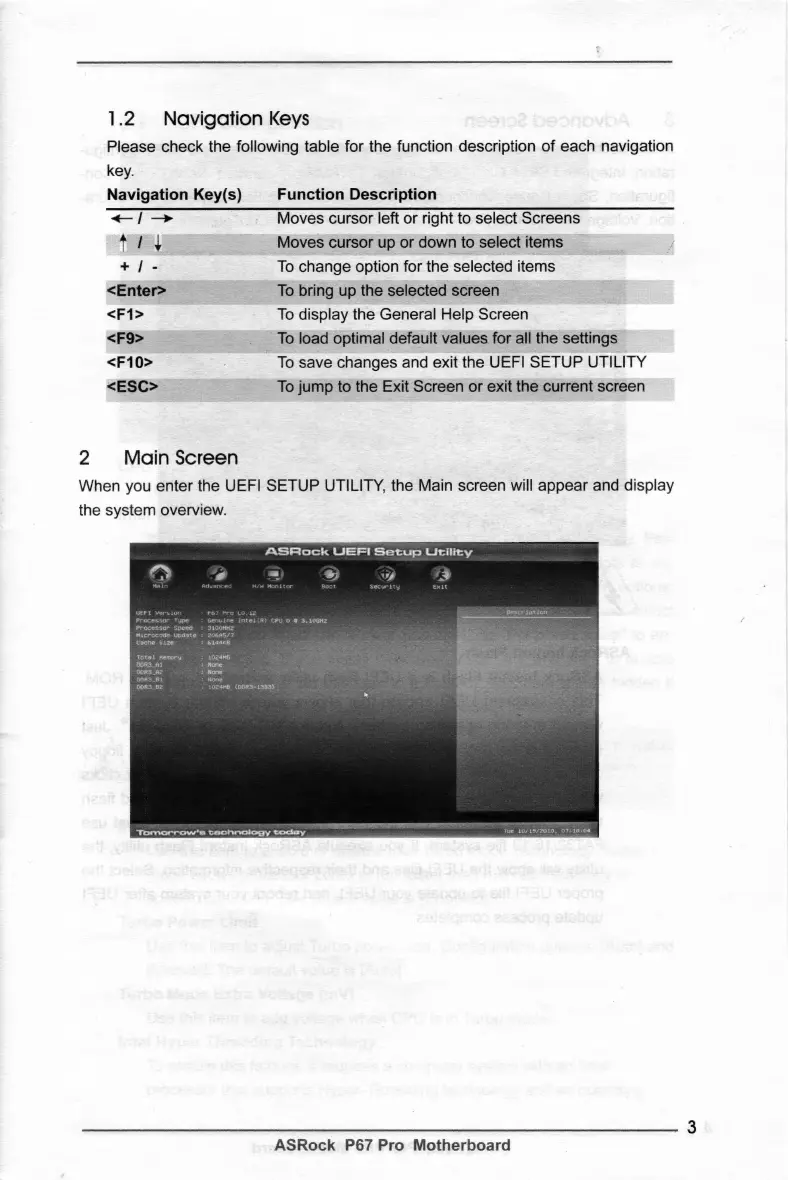

1.2 Navigation Keys
Please check the following table for the function description of each navigation
key.
Navigation Key(s) Function Description
<—/|— Moves cursor left or right to select anpenS
NF oe : Moves cursor up or down to select items _
To change option for the selected items
- Tobring up the selected screen
To display the General Help ae
2 10 load optimal default values for all the settings |
- To save changes and exit the UEFI SETUP UTILITY
_____ To jump to the Exit Screen or exit the current screen
2 Main Screen
When you enter the UEFI SETUP UTILITY, the Main screen will appear and display
the system overview.
ASRock UEFI Setup Utility
S? EP 8 SB. sone
: (DOR isos)
Tomorrow's technology toctty _
ASRock P67 Pro Motherboard

ASROCK P67 Pro Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA connectors	6
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Certification	FCC, CE, WHQL
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1

Weight and Dimensions

Depth	203 mm
Width	305 mm
