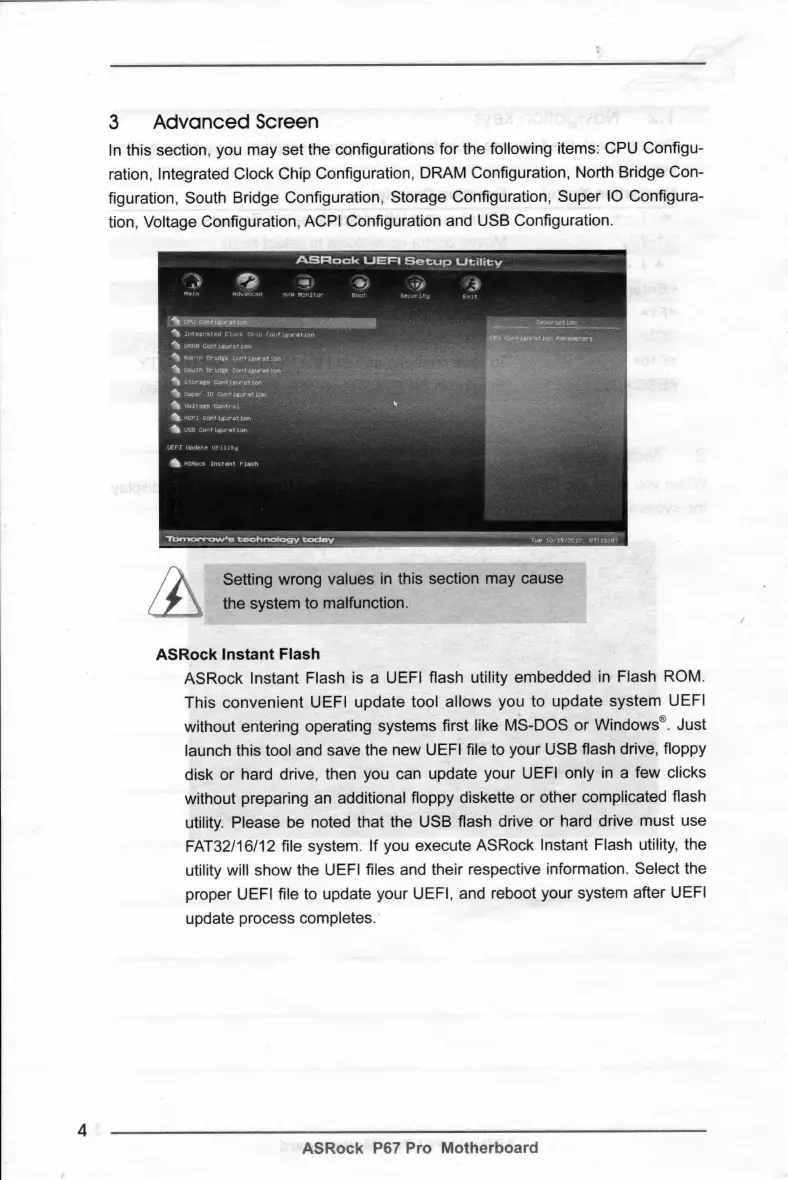

3. Advanced Screen
In this section, you may set the configurations for the following items: CPU Configu-
ration, Integrated Clock Chip Configuration, DRAM Configuration, North Bridge Con-
figuration, South Bridge Configuration, Storage Configuration, Super |O Configura-
tion, Voltage Configuration, ACP! Configuration and USB Configuration.
ASRock UEFI Setup Litility
; ne: _ se ;
Setting wrong values in this section may ¢ cause
: the system to malfunction. :
ASRock Instant Flash
ASRock Instant Flash is a UEFI flash utility embedded in Flash ROM.
This convenient UEFI update tool allows you to update system UEFI
without entering operating systems first like MS-DOS or Windows”. Just
launch this tool and save the new UEFI file to your USB flash drive, floppy
disk or hard drive, then you can update your UEFI only in a few clicks
without preparing an additional floppy diskette or other complicated flash
utility. Please be noted that the USB flash drive or hard drive must use
FAT32/16/12 file system. If you execute ASRock Instant Flash utility, the
utility will show the UEFI files and their respective information. Select the
proper UEFI file to update your UEFI, and reboot your system after UEFI
update process completes.
ASRock P67 Pro Motherboard

ASROCK P67 Pro Specifications

General

Non-ECC	Yes
Memory channels	Dual-channel
Number of memory slots	4
Maximum internal memory	32 GB
Supported memory clock speeds	1066, 1333, 1600, 1866, 2133 MHz
Processor socket	LGA 1155 (Socket H2)
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7
USB 2.0 connectors	3
Number of COM connectors	1
Number of SATA connectors	6
Number of SATA III connectors	2
Number of Parallel ATA connectors	0
USB 2.0 ports quantity	8
Certification	FCC, CE, WHQL
Component for	PC
Motherboard chipset	Intel® P67
Audio output channels	7.1 channels
Motherboard form factor	ATX
Compatible operating systems	Windows 7/Vista/XP
On-board graphics card	No
Parallel processing technology support	Not supported
PCI Express slots version	2.0
RAID levels	0, 1, 5, 10
LAN controller	Realtek RTL8111E
Networking features	Gigabit Ethernet
BIOS type	AMI
ACPI version	1.1

Weight and Dimensions

Depth	203 mm
Width	305 mm
