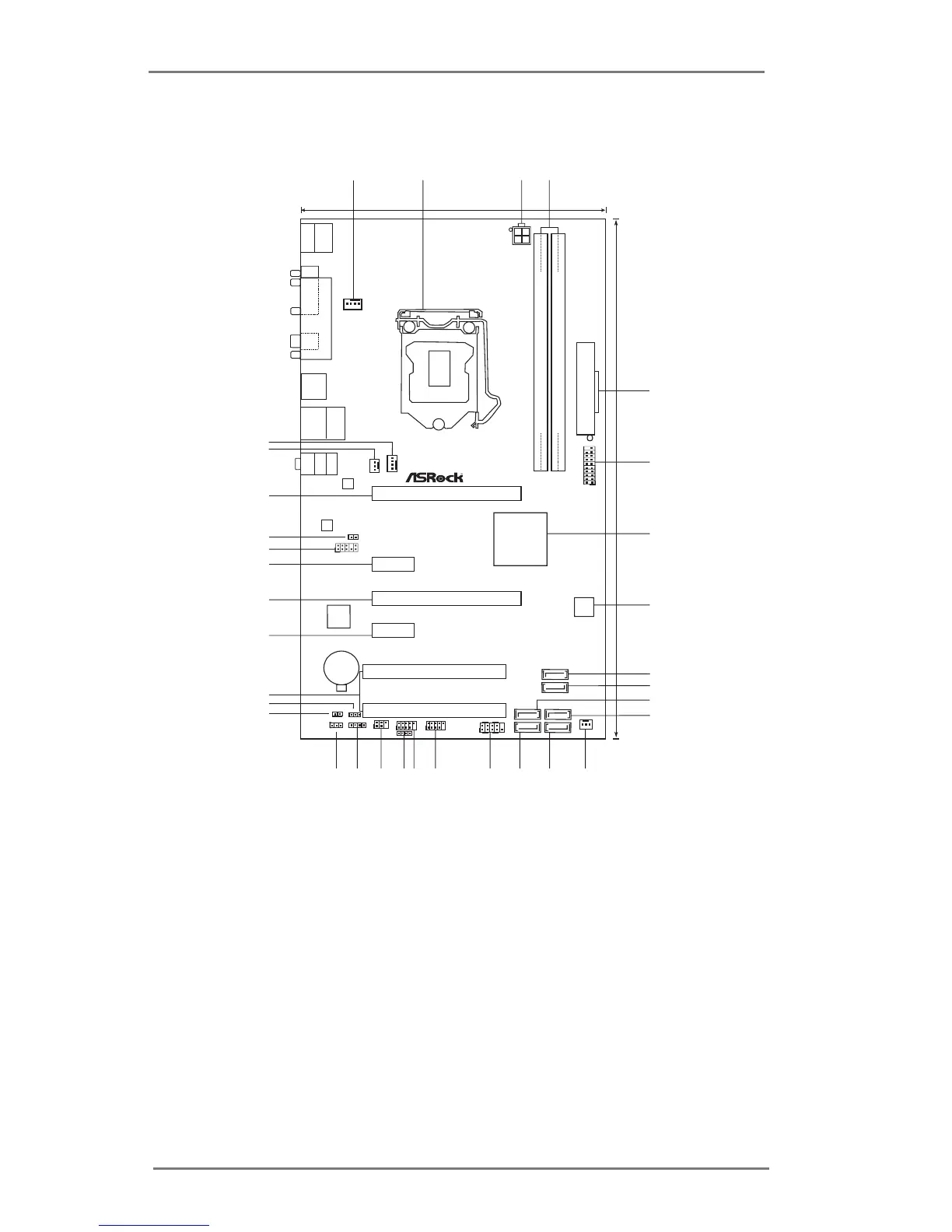

1.3 Motherboard Layout
1 CPU Fan Connector (CPU_FAN1)
2 1155-Pin CPU Socket
3 ATX 12V Power Connector (ATX12V1)
4 2 x 240-pin DDR3 DIMM Slots
(DDR3_A1, DDR3_B1, Black)
5 ATX Power Connector (ATXPWR1)
6 USB 3.0 Header (USB3_2_3, Black)
7 Intel B75 Chipset
8 SPI Flash Memory (64Mb)
9 SATA3 Connector (SATA3_0, Gray)
10 SATA2 Connector (SATA2_5, Black)
11 SATA2 Connector (SATA2_2, Black)
12 SATA2 Connector (SATA2_4, Black)
13 Chassis Fan Connector (CHA_FAN2)
14 SATA2 Connector (SATA2_3, Black)
15 SATA2 Connector (SATA2_1, Black)
16 System Panel Header (PANEL1, Black)
17 USB 2.0 Header (USB6_7, Black)
18 USB 2.0 Header (USB4_5, Black)
19 Consumer Infrared Module Header
(CIR1, Gray)
20 Infrared Module Header (IR1, Black)
21 Chassis Speaker Header (SPEAKER1, Black)
22 Clear CMOS Jumper (CLRCMOS1)
23 Chassis Intrusion Header (CI1)
24 Power LED Header (PLED1)
25 PCI Slots (PCI1-2, Black)
26 PCI Express 2.0 x1 Slot (PCIE4, Black)
27 PCI Express 2.0 x16 Slot (PCIE3, Black)
28 PCI Express 2.0 x1 Slot (PCIE2, Black)
29 Front Panel Audio Header (HD_AUDIO1, Black)
30 HDMI_SPDIF Header (HDMI_SPDIF1, Black)
31 PCI Express 3.0 x16 Slot (PCIE1, Black)
32 Power Fan Connector (PWR_FAN1)
33 Chassis Fan Connector (CHA_FAN1)
Top:
RJ-4 5
USB 2.0
T: USB 2
B: USB3
USB 3.0
T: USB 0
B: USB1
PS2
Mouse /
Keybo ar d
USB 2.0 T: USB 0
B: USB1
DDR3_A1 (64 bit, 240-pin module)
DDR3_B1 (64 bit, 240-pin module)
Top:
LIN E I N
Cente r:
FRO NT
Botto m:
MI C IN
Intel
B75
ATXPWR1
64Mb
BIOS
1
USB3_2 _3
CMOS
Batt ery
Super
I/O
AUD IO
COD EC
HD_ AUD IO 1
1
PCIE1
PCI1
PCIE2
IR1
1
USB 4_5
1
CIR1
1
CLR CMO S1
1
HDLE D R ESET
PLED PW RBTN
PANE L1
1
1
SPE AKE R1
P75 Pro3
PCI Expr ess 3.0
ErP/EuP Ready
RoHS
DDR3
LAN
PHY
CPU _FAN 1
PWR _FAN 1
SATA2 _2
SATA2 _1
SATA2 _4
CHA _FAN 1
1
HDM I_S PD IF1
CHA_ FAN2
PLE D1
1
1
2
3
4
5
6
17.8cm (7.0 in)
30.5cm (12.0 in)
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
PCIE3
PCIE4
PCI2
X F ast USB
X F ast LAN
X F ast RAM
SATA2 _3
SATA3 _0
SATA2 _5
ATX1 2V 1
PARALLEL PORT
COM1
Coaxial
SPDIF
1
CI1
USB 6_7
1
Front USB 3.0
