English
Q1900-ITX
15

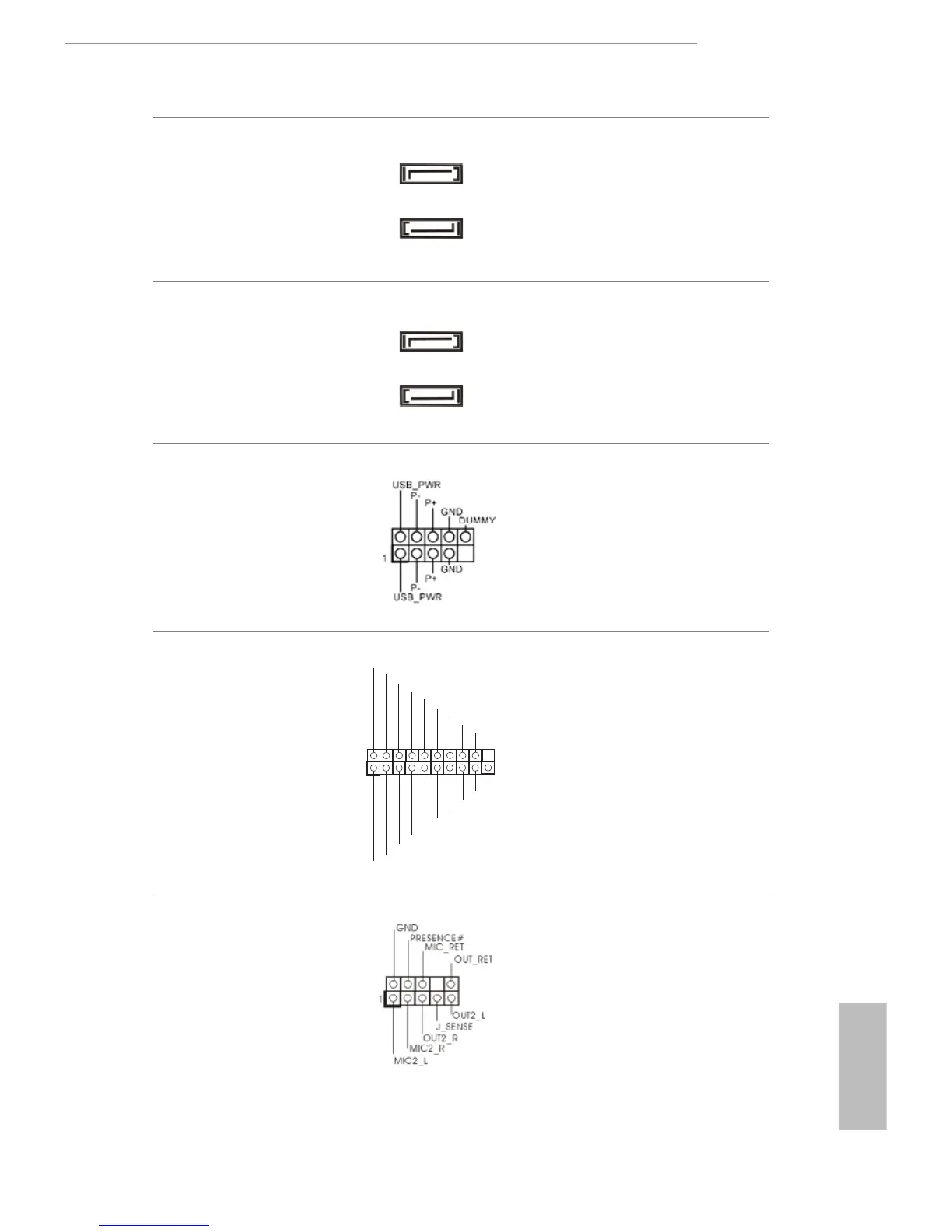

Serial ATA2 Connectors
(SATA2_1:
see p.1, No. 9)
(SATA2_2:
see p.1, No. 6)
ese two SATA2
connectors support SATA
data cables for internal
storage devices with up to
3.0 Gb/s data transfer rate.
Serial ATA3 Connectors
(SATA3_A1:
see p.1, No. 15)
(SATA3_A2:
see p.1, No. 16)
ese two SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
USB 2.0 Header
(9-pin USB1_2)
(see p.1, No. 4)
Besides two USB 2.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
2.0 header can support
two ports.
USB 3.0 Header
(19-pin USB3_1_2)
(see p.1, No. 5)
Besides two USB 3.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
3.0 header can support
two ports.
Front Panel Audio Header
(9-pin HD_AUDIO1)
(see p.1, No. 18)
is header is for
connecting audio devices
to the front audio panel.
SATA2_2
SATA2_1
SATA3_A2
SATA3_A1
1
ID
IntA_P_D+
IntA_P_D-
GND
IntA_P_SSTX+
IntA_P_SSTX-
GND
IntA_P_SSRX+
Vbus
