ASROCK Q1900-ITX Quick Installation Guide

English
Q1900-ITX
17

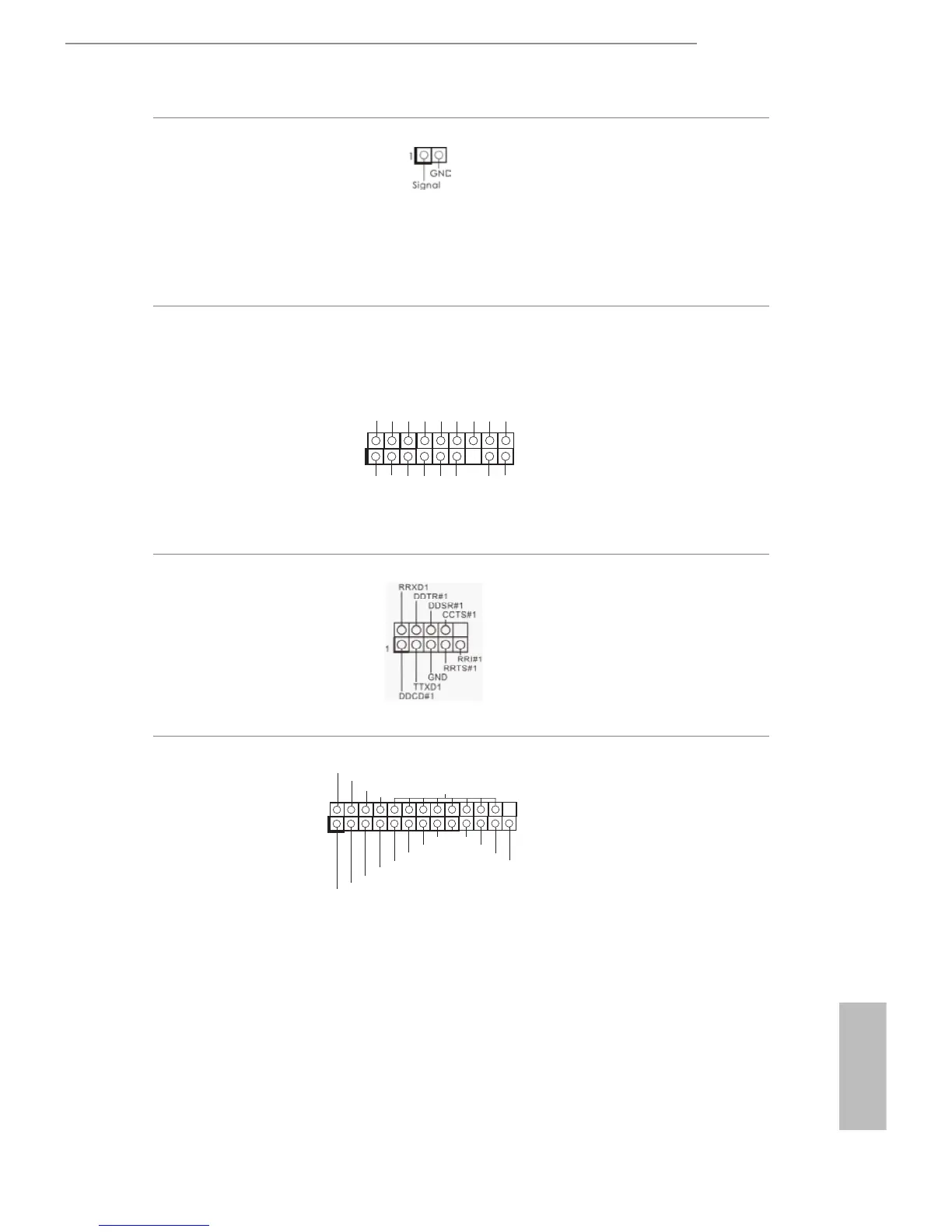

Chassis Intrusion Header
(2-pin CI1)
(see p.1, No. 12)
is motherboard supports
CASE OPEN detection feature
that detects if the chassis cove
has been removed. This feature
requires a chassis with chassis
intrusion detection design.
TPM Header
(17-pin TPMS1)
(see p.1, No. 10)
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Serial Port Header
(9-pin COM1)
(see p.1, No. 14)
is COM1 header
supports a serial port
module.
Print Port Header
(25-pin LPT1)
(see p.1, No. 17)
is is an interface
for print port cable
that allows convenient
connection of printer
devices.
1
GND SMB_DATA_MAIN
LAD2
LAD1
GND
S_PWRDWN#
SERIRQ#
GND
PCICLK
PCIRST#
LAD3
+3V
LAD0
+3VSB
GND
FRAME
SMB_CLK_MAIN
1
AFD#
ERROR#
PINIT#
GND
SLIN#
STB#
SPD0
SPD1
SPD2
SPD3
SPD4
SPD5
SPD6
SPD7
ACK#
BUSY
PE
SLCT
