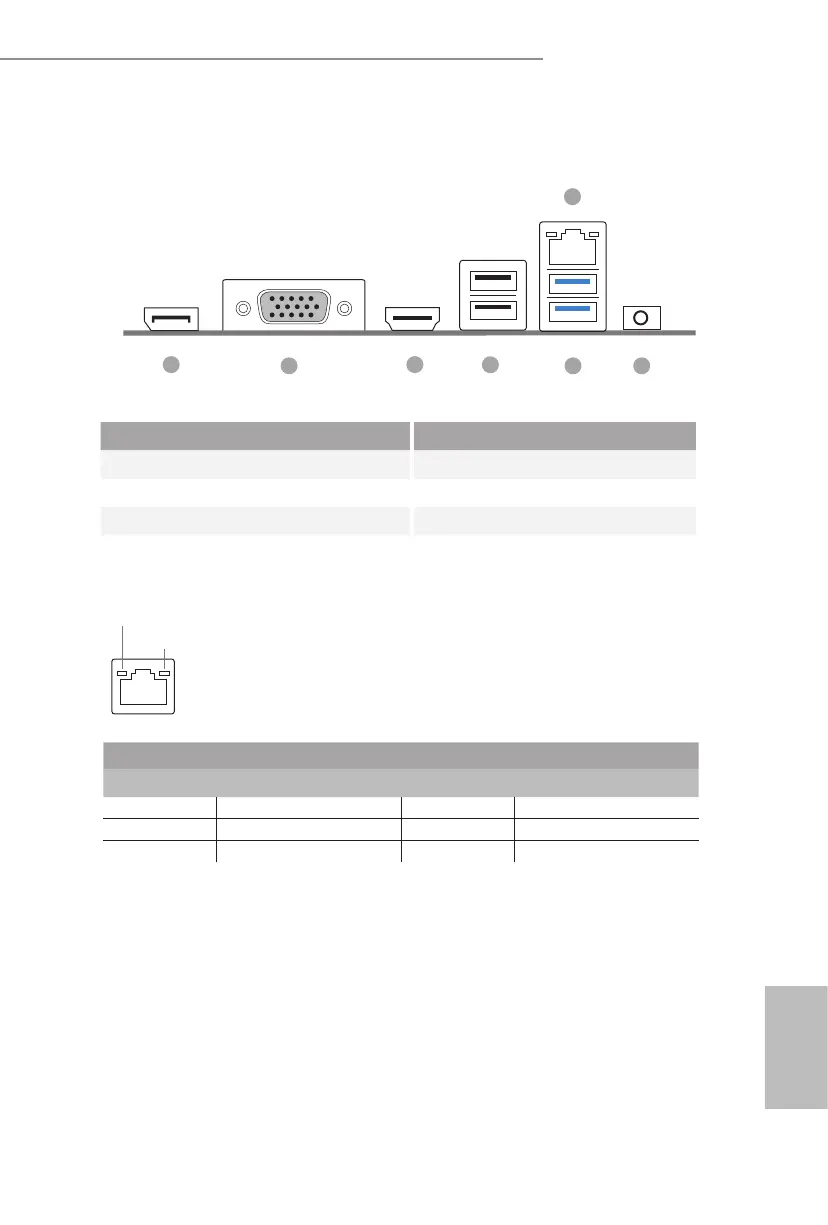

1.5 Rear Panel
No. Description No. Description
1 DisplayPort 1.2 5 USB 3.2 Gen1 Type-A Ports
2 D-Sub Port (USB3_34)
3 HDMI Port 6 Line out Jack
4 USB 2.0 Ports (USB_34) 7 LAN RJ-45 Port*
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
1 3
2 5 6
7
4
