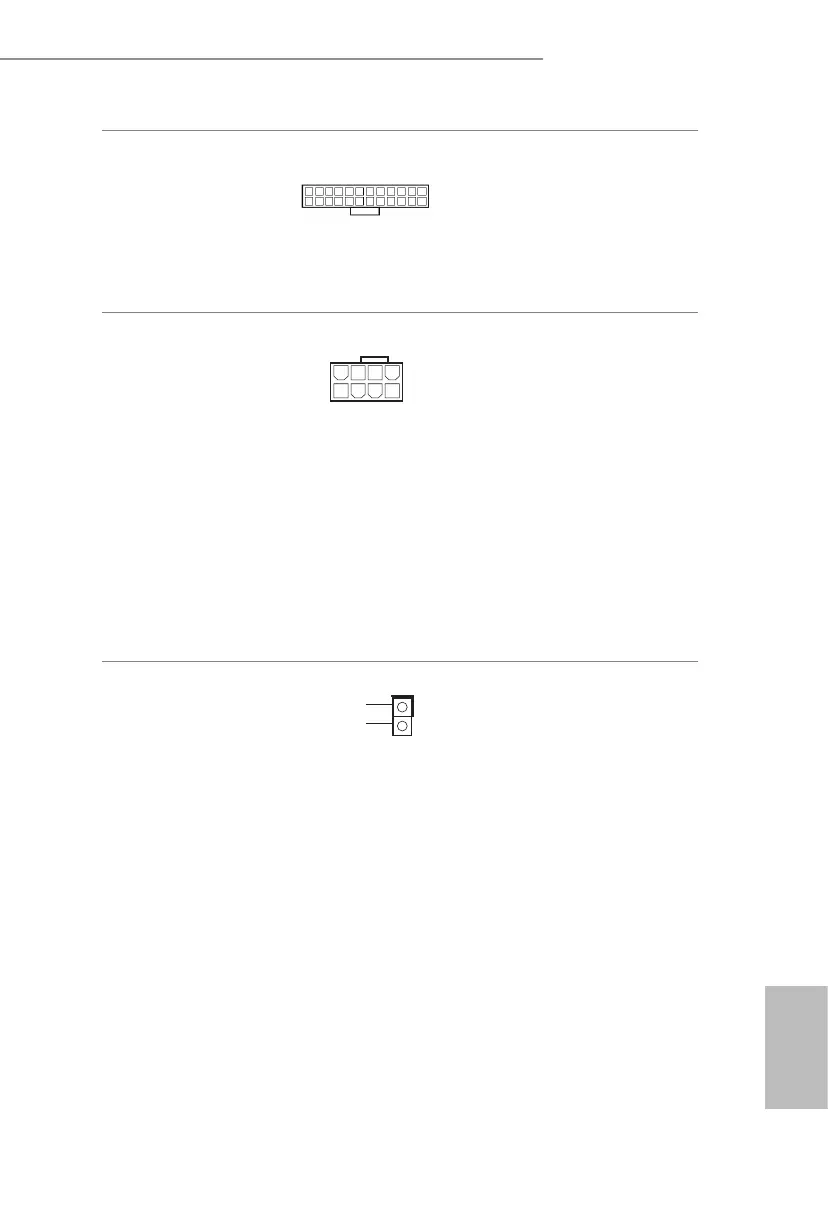

ATX Power Connector
(24-pin ATXPWR1)
(see p.6, No. 7)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.6, No. 1)
is motherboard
provides a 8-pin ATX 12V
power connectors. To use
a 4-pin ATX power
supply, please plug it along
Pin 1 and Pin 5.
*Warning: Please make
sure that the power cable
connected is for the CPU
and not the graphics
card. Do not plug the
PCIe power cable to this
connector.
Chassis Intrusion Header
(2-pin CI1)
(see p.6, No. 6)
is motherboard
supports CASE OPEN
detection feature that
detects if the chassis cove
has been removed. is
feature requires a chassis
with chassis intrusion
detection design.
1
Signa
l
GND
12
24
1
13
4
1
8 5
