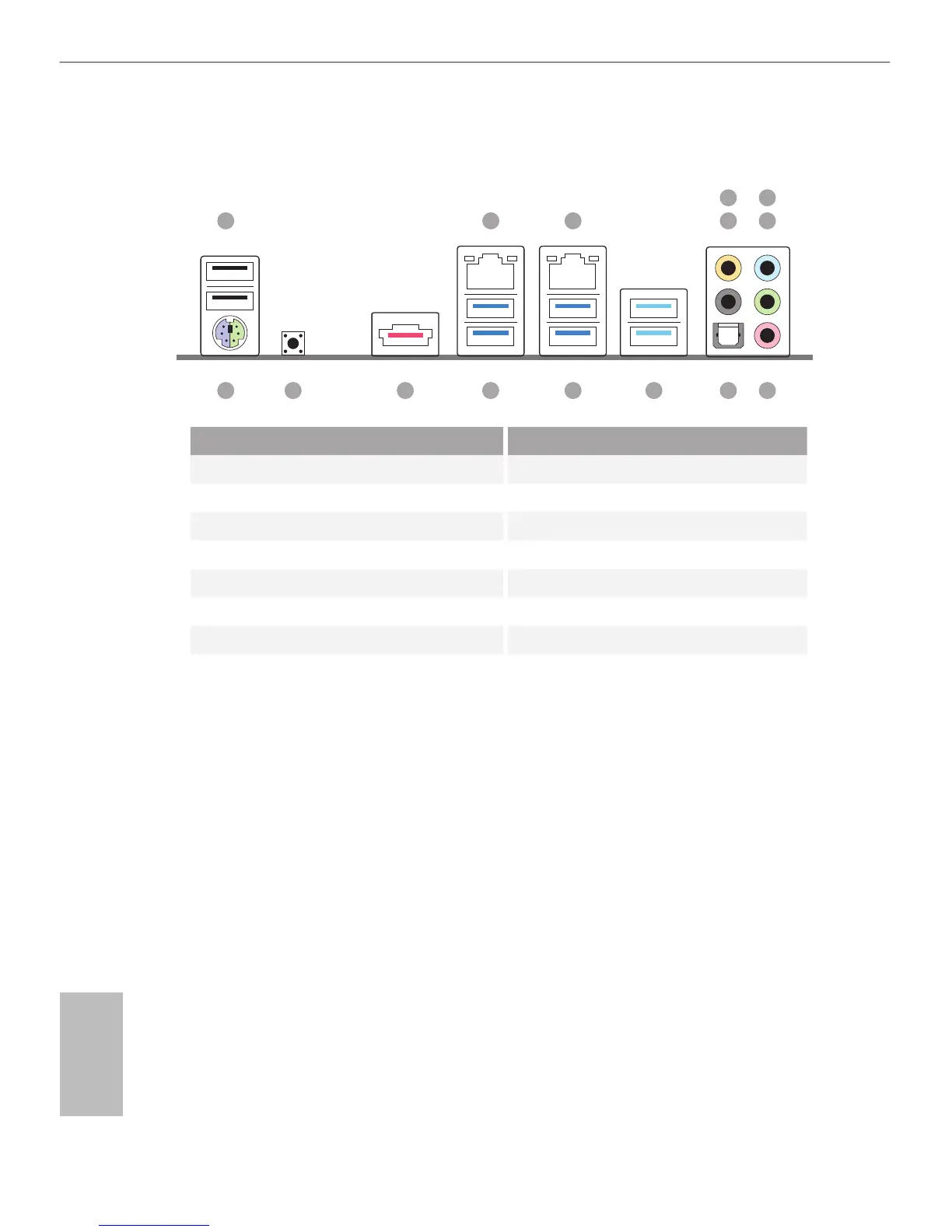

1.4 I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB12) 9 Optical SPDIF Out Port
2 LAN RJ-45 Port (Intel® I218V)* 10 USB 3.1 Type-A Ports
3 LAN RJ-45 Port (Intel® I211AT)* (ASMedia ASM1142) (USB3_A1_A2)
4 Central / Bass (Orange) 11 USB 3.0 Ports (USB3_34)
5 Rear Speaker (Black) 12 USB 3.0 Ports (USB3_12)
6 Line In (Light Blue) 13 eSATA Connector***
7 Front Speaker (Lime)** 14
Clear CMOS Switch
8 Microphone (Pink) 15 PS/2 Mouse/Keyboard Port
1
15 8911121314
32 5
4
7
6
10
