X99E-ITX/ac

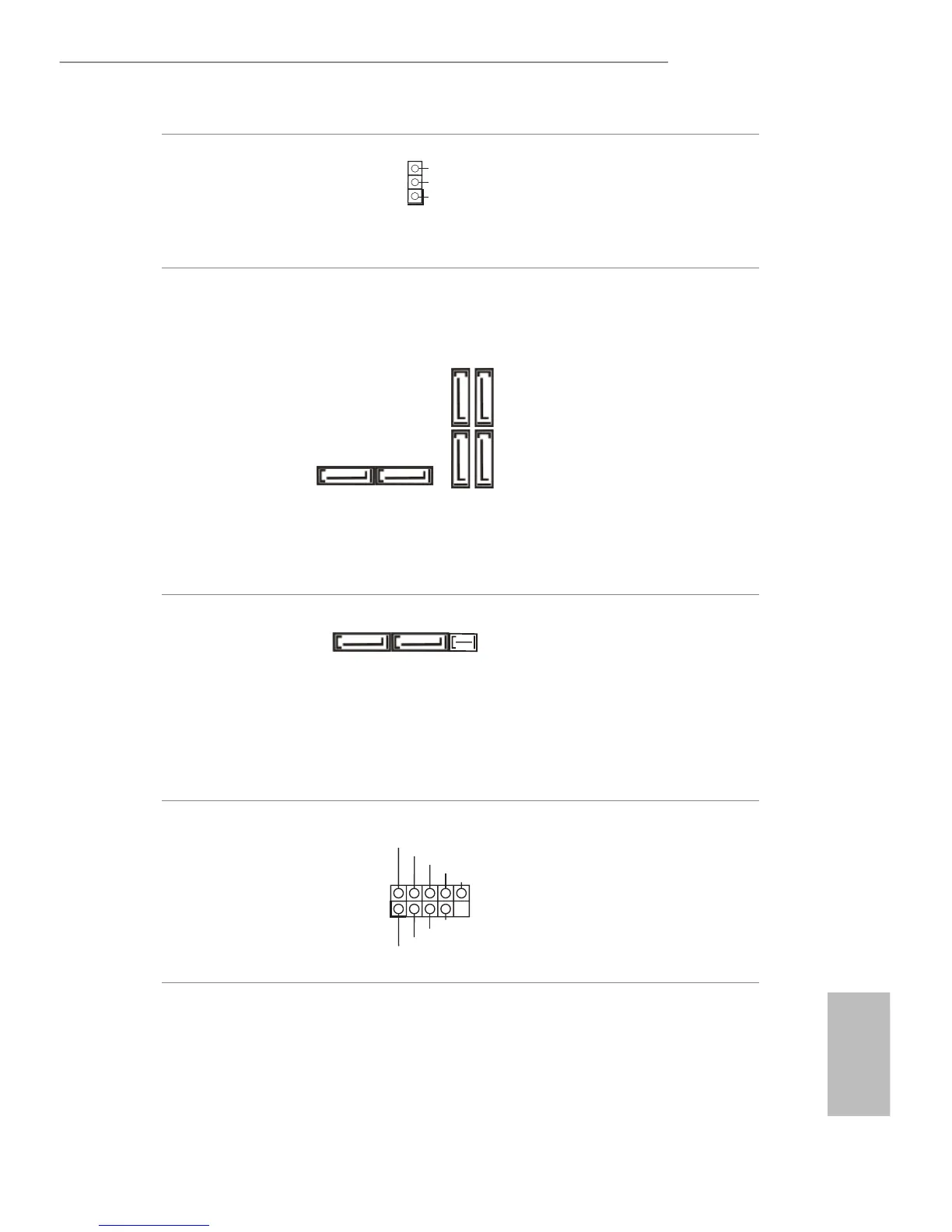

Power LED Header
(3-pin PLED1)
(see p.6, No. 6)
Please connect the chassis
power LED to this header
to
indicate the system’s
power status.
Serial ATA3 Connectors
(SATA3_0_1:
see p.6, No. 10)
(SATA3_2_3:
see p.6, No. 11)
(SATA3_4:
see p.6, No. 17)
(SATA3_5:
see p.6, No. 16)
ese six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.
e SATA3_4, SATA3_5
are shared with the
SATA Express connector
(SATAE_4_5).
* RAID is supported on
SATA3_0 ~ SATA3_5
ports only.
Serial ATA Express
Connector
(SATAE_4_5:
see p.6, No. 15)
Please connect either
SATA or PCIe storage
devices to this connector.
e SATA Express
connector is shared with
the SATA3_4 and the
SATA3_5.
USB 2.0 Header
(9-pin USB3_4)
(see p.6, No. 8)
Besides two USB 2.0 ports
on the I/O panel, there
is one header on this
motherboard. is USB
2.0 header can support
two ports.
1
PLED+
PLED+
PLED-
SATA3_0_1SATA3_2_3
SATA3_4 SATA3_5
SATA3_4
SATA3_5 SATAE_4_5
DUMMY
GND
GND
P+
P-
USB_PWR
P+
P-
USB_PWR
1
