146
147
Z370M-ITX/ac
繁體中文

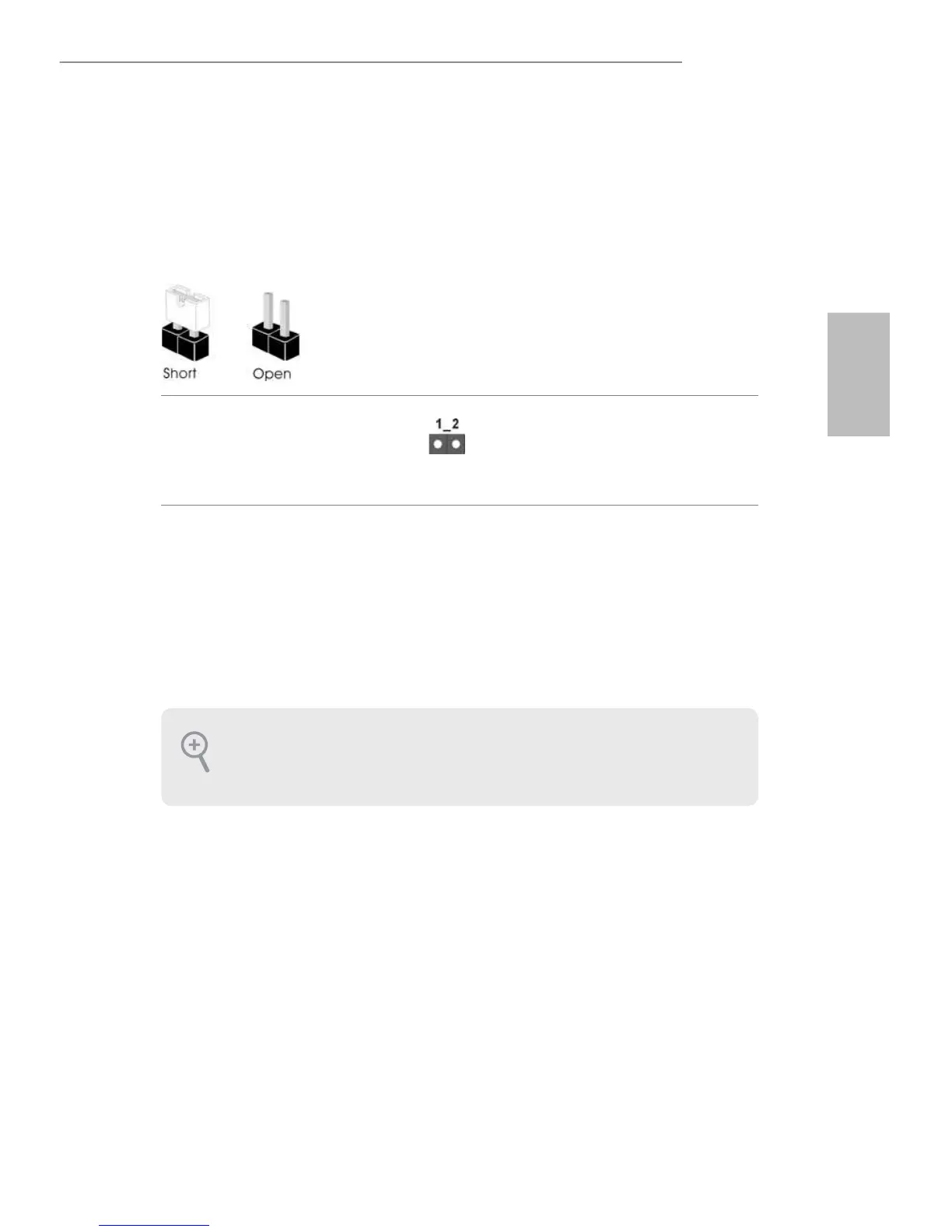

1.3 跳線設定
圖例顯示設定跳線的方式。當跳線帽套在針腳上時,該跳線為「短路」。若沒
有跳線帽套在針腳上,該跳線為「開啟」。
清除 CMOS 跳線
(CLRMOS1)
(請參閱第 1 頁,編號 14
您可利用 CLRMOS1 清除 CMOS 中的資料。若要清除及重設系統參數為預設
設定,請先關閉電腦電源,再拔下電源供應器的電源線。在等待 15 秒後,請
使用跳線帽讓 CLRMOS1 上的 pin 短路約 5 秒。不過,請不要在更新 BIOS
立即清除 CMOS。若您需在更新 BIOS 後立即清除 CMOS,則必須先重新啟
動系統,然後於進行清除 CMOS 動作前關機。請注意,只有在取出 CMOS
池時才會清除密碼、日期、時間及使用者預設設定檔。請牢記,務必在清除
CMOS 後取下跳線蓋。
若您清除 CMOS,可能會偵測到機殼開啟。請調整 BIOS 選項「清除狀態」,清除先
前機殼防護狀態的紀錄。
2-pin 跳線
