148
149
Z370M-ITX/ac
繁體中文

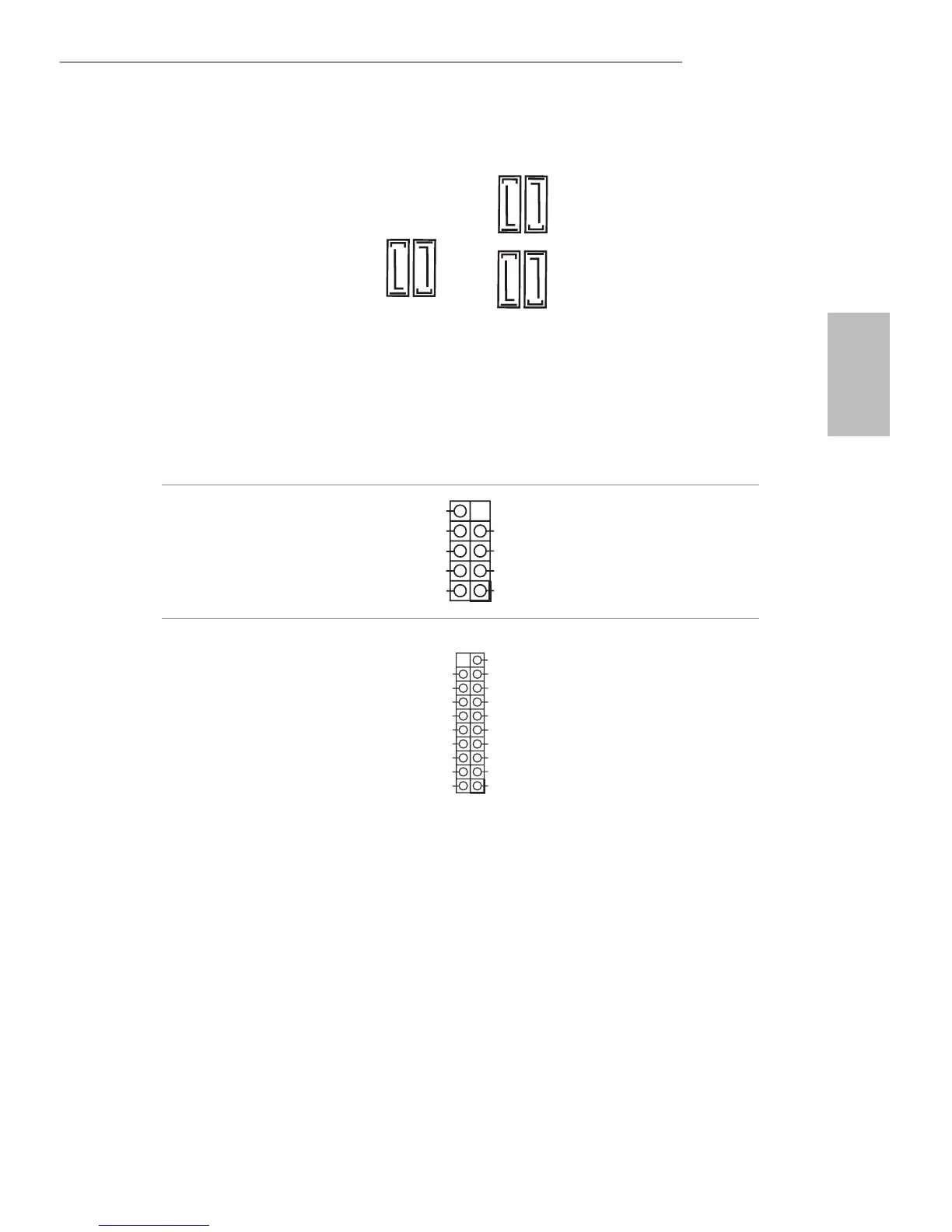

Serial ATA3 接頭
(SATA3_0:
請參閱第 1 頁,編號 9
(SATA3_1:
請參閱第 1 頁,編號 8
(SATA3_2:
請參閱第 1 頁,編號 11
(SATA3_3:
請參閱第 1 頁,編號 10
(SATA3_4:
請參閱第 1 頁,編號 16
(SATA3_5:
請參閱第 1 頁,編號 17
這六組 SATA3 接頭皆
支援內部儲存裝置的
SATA 資料纜線,最
高可達 6.0 Gb/s 資料
傳輸率。
* M2_1 SATA 類型
M.2 裝置佔用,將會停
SATA3_0
USB 2.0 排針
(9-pin USB_3_4)
(請參閱第 1 頁,編號 13
DUMMY
GNDGND
P+4
P-4
P+3
P-3
USB_PWR
USB_PWR
1
此主機板上有一個
USB 2.0 排針。此
USB 2.0 排針皆可支
援兩個連接埠。
USB 3.1 Gen1 排針
(19-pin USB3_6_7)
(請參閱第 1 頁,編號 7
1
IntA_PB_D+
Dummy
IntA_PB_D-
GND
IntA_PB_SSTX+
GND
IntA_PB_SSTX-
IntA_PB_SSRX+
IntA_PB_SSRX-
VbusVbus
Vbus
IntA_PA_SSRX-
IntA_PA_SSRX+
GND
IntA_PA_SSTX-
IntA_PA_SSTX+
GND
IntA_PA_D-
IntA_PA_D+
此主機板上有一個
排針。此 USB 3.1
Gen1 排針皆可支援
兩個連接埠。
SA T A 3_3
SA T A 3_2
SA T A 3_1
SA T A3_0
SA T A 3_5
SA T A 3_4
