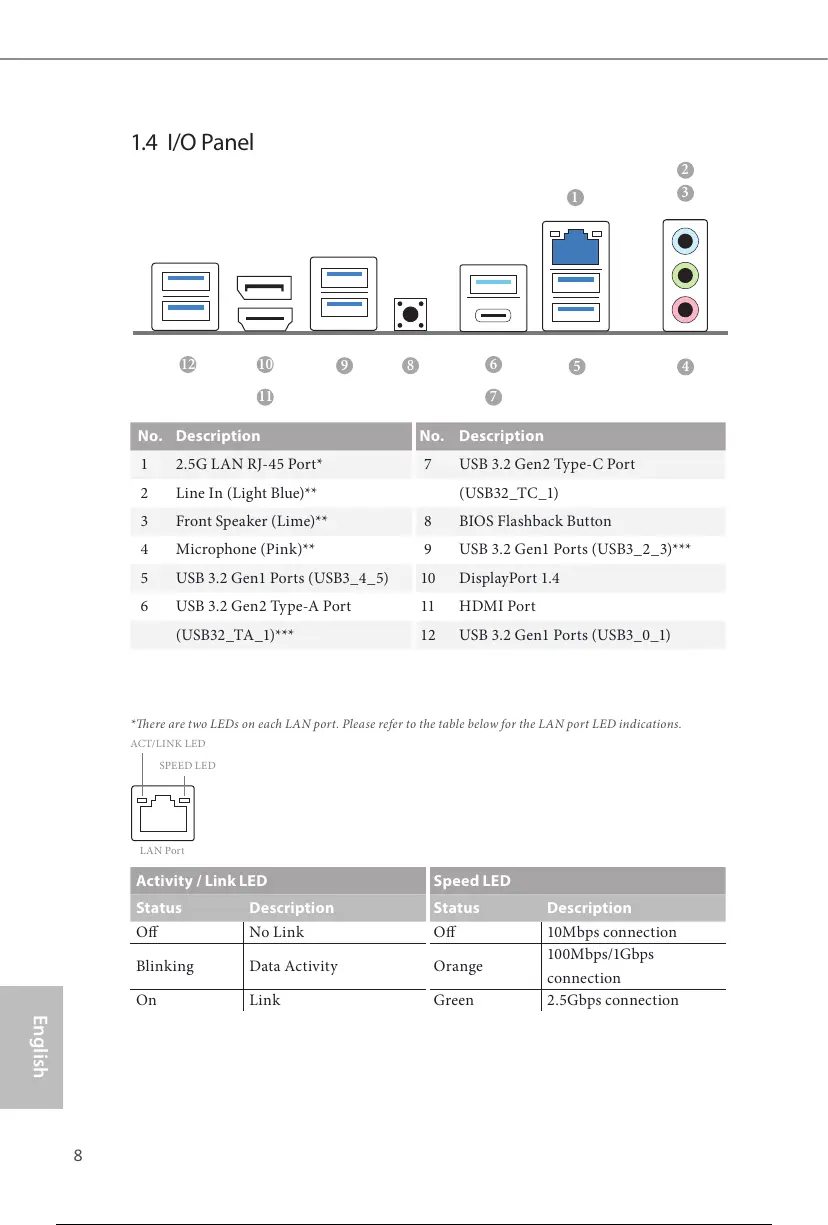

1.4 I/O Panel
No. Description No. Description
1 2.5G LAN RJ-45 Port* 7 USB 3.2 Gen2 Type-C Port
2 Line In (Light Blue)** (USB32_TC_1)
3 Front Speaker (Lime)** 8 BIOS Flashback Button
4 Microphone (Pink)** 9 USB 3.2 Gen1 Ports (USB3_2_3)***
5 USB 3.2 Gen1 Ports (USB3_4_5) 10 DisplayPort 1.4
6 USB 3.2 Gen2 Type-A Port 11 HDMI Port
(USB32_TA_1)*** 12 USB 3.2 Gen1 Ports (USB3_0_1)
*ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link O 10Mbps connection
Blinking Data Activity Orange
100Mbps/1Gbps
connection
On Link Green 2.5Gbps connection
5
1
12 10
11
9 8
6
7
4
3
2
ACT/LINK LED
SPEED LED
LAN Port
