ASROCK Z690M PG Riptide/D5 User Manual

30
English

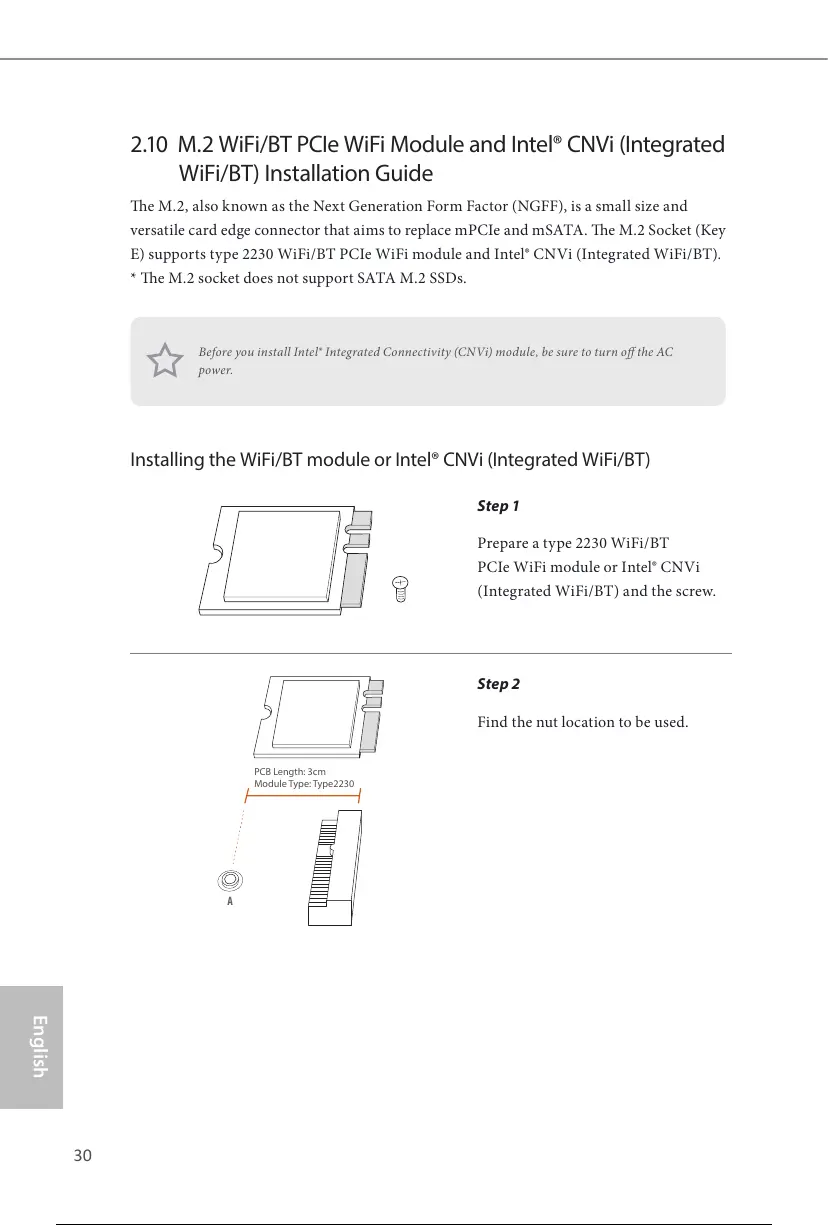

2.10 M.2 WiFi/BT PCIe WiFi Module and Intel® CNVi (Integrated
WiFi/BT) Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e M.2 Socket (Key
E) supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT).
* e M.2 socket does not support SATA M.2 SSDs.
Installing the WiFi/BT module or Intel® CNVi (Integrated WiFi/BT)
Step 1
Prepare a type 2230 WiFi/BT
PCIe WiFi module or Intel® CNVi
(Integrated WiFi/BT) and the screw.
PCB Length: 3cm
Module Type: Type2230
A
Step 2
Find the nut location to be used.
Before you install Intel® Integrated Connectivity (CNVi) module, be sure to turn o the AC
power.
38 / 113

ASROCK Z690M PG Riptide/D5 Specifications

General

Processor socket	LGA 1700
Processor manufacturer	Intel
Compatible processor series	Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9
Non-ECC	Yes
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR5-SDRAM
Maximum internal memory	128 GB
RAID levels	0, 1, 5, 10
Supported storage drive types	HDD & SSD
Number of storage drives supported	6
Supported storage drive interfaces	M.2, SATA III
Number of M.2 (M) slots	2
PCI Express x16 (Gen 5.x) slots	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	0
Parallel processing technology support	-
USB connector type	USB Type-A, USB Type-C
DisplayPort version	1.4
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Wi-Fi	No
LAN controller	Killer E3100G
Ethernet interface type	2.5 Gigabit Ethernet
Audio chip	Realtek ALC897
Certification	- FCC, CE - ErP/EuP ready
Component for	PC
Motherboard chipset	Intel Z690
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
Windows operating systems supported	Windows 10 x64, Windows 11 x64
BIOS type	UEFI AMI
ACPI version	6.0
BIOS memory size	128 Mbit
System Management BIOS (SMBIOS) version	2.7
Harmonized System (HS) code	84733020
Weight	1000 g

Weight and Dimensions

Width	244 mm
Height	60 mm
