ASROCK Z77 Extreme6 User Manual

75

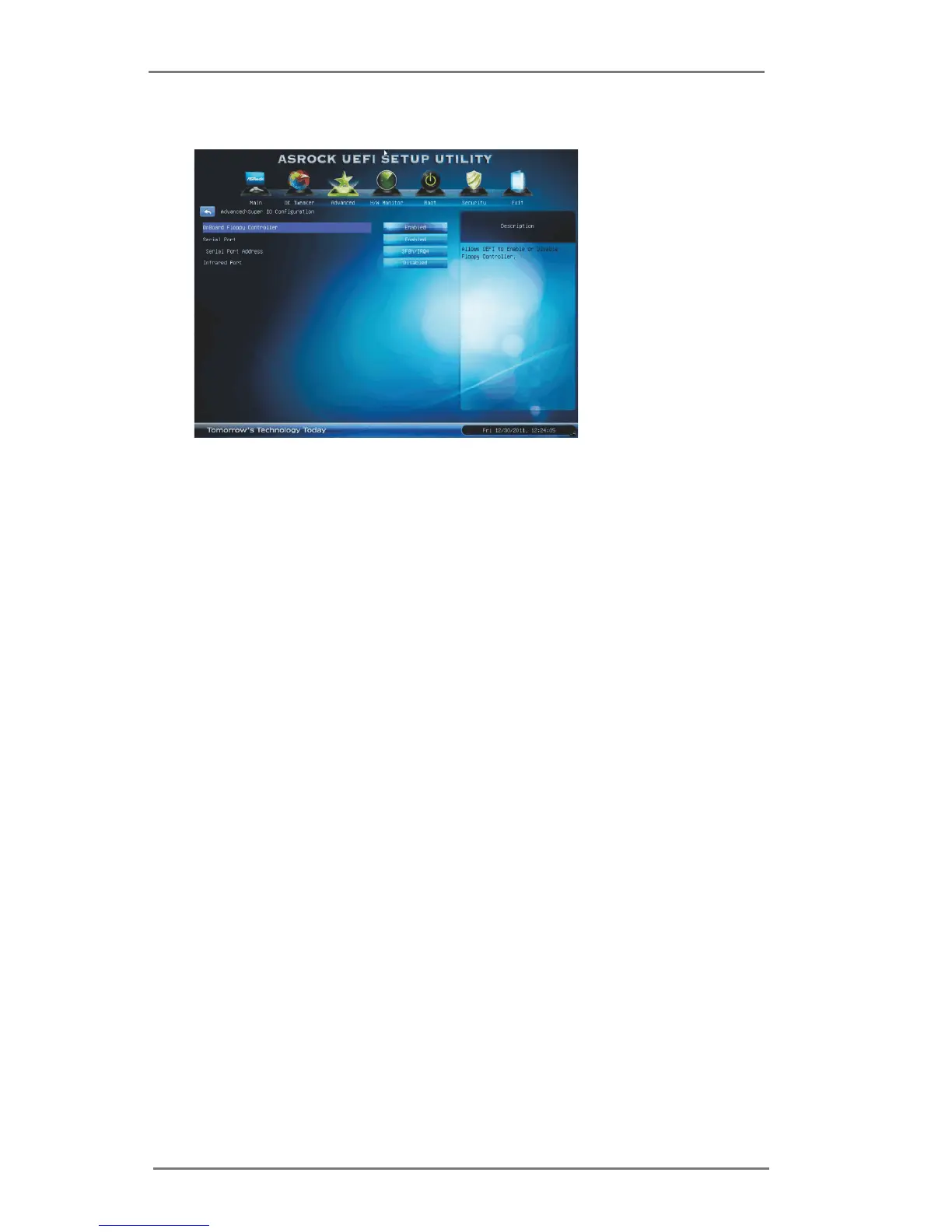

3.4.7 Super IO Configuration
OnBoard Floppy Controller
Use this item to enable or disable oppy drive controller.
Serial Port
Use this item to enable or disable the onboard serial port.
Serial Port Address
Use this item to set the address for the onboard serial port. Conguration
options: [3F8h / IRQ4] and [3E8h / IRQ4].
Infrared Port
Use this item to enable or disable the onboard infrared port.

ASROCK Z77 Extreme6 Specifications

General

Chipset	Intel Z77
CPU Socket	LGA 1155
Max Memory	32GB
Memory Speed	DDR3 2800+(OC)/2400(OC)/2133(OC)/1866(OC)/1600/1333/1066
PCI Slots	2
RAID Support	RAID 0, 1, 5, 10
Form Factor	ATX
LAN	Gigabit LAN 10/100/1000 Mb/s
Video Outputs	D-Sub, DVI-D, HDMI
Multi-GPU Support	AMD Quad CrossFireX, NVIDIA Quad SLI
Memory Slots	4 x DIMM
PCI Express x16 Slots	3
SATA Ports	4 x SATA 6Gb/s, 4 x SATA 3Gb/s
USB 3.0 Ports	4
USB 2.0 Ports	8
Audio	7.1 Channel HD Audio
