Online Mechanical Installation Guide, Document No: ST-001323-B Date: 21 februari 2014
Aperio
®
Online
8
Placement options for AH15 when using E-cylinder locks
When using E-cylinder locks, the AH15 must be
placed either in the roof, on the right or left wall or
on the opposite wall and within a 5 meters/16 feet
range from the lock.
It is important that the communication hub is
mounted with the mounting holes horizontally
aligned (in the ceiling, parallel to the direction of
the lock) and as close to the lock as possible.
The following pages show typical installations
based on field experience that will give a good
result for radio link quality. The colors indicate
which hubs and Aperio door locks that belong
together.
< 4 m / ~ 13 ft
Parallel
< 5 m / ~ 16 ft
The AH15 communication hub can be mounted
according to the following figure.
AH15 Communication hub installed on a wall,
with mounting holes according to marks.
AH15 Communication hub installed in the
ceiling (seen from above) with mounting hole
alignment.
Door with Aperio e-cylinder lock

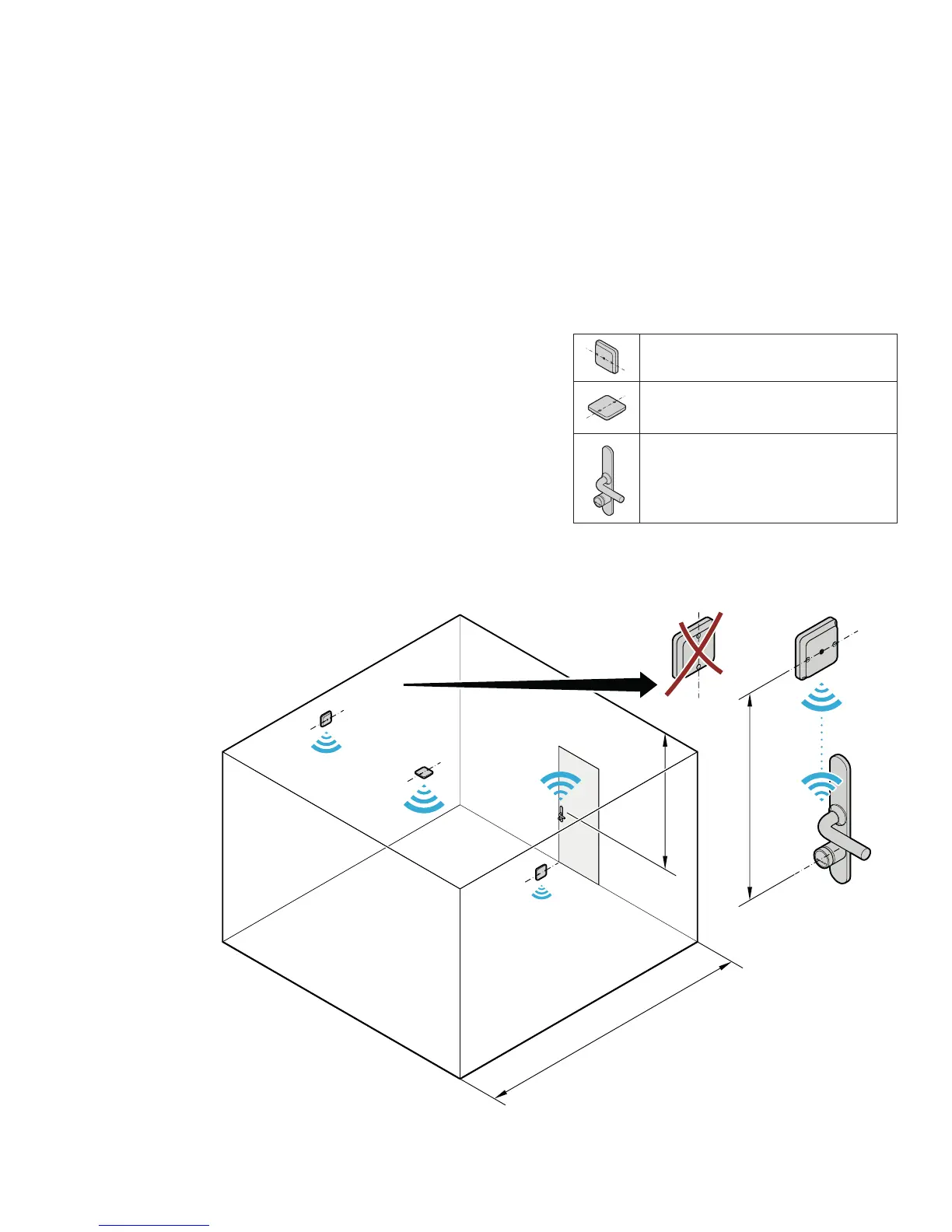

Figure 4. General
placement options
for AH15 with E-
cylinder locks
