Use a Phillips head screwdriver to remove
screws (item #4c) shown below and detach
Inside Trim Plate from the Inside Chassis.

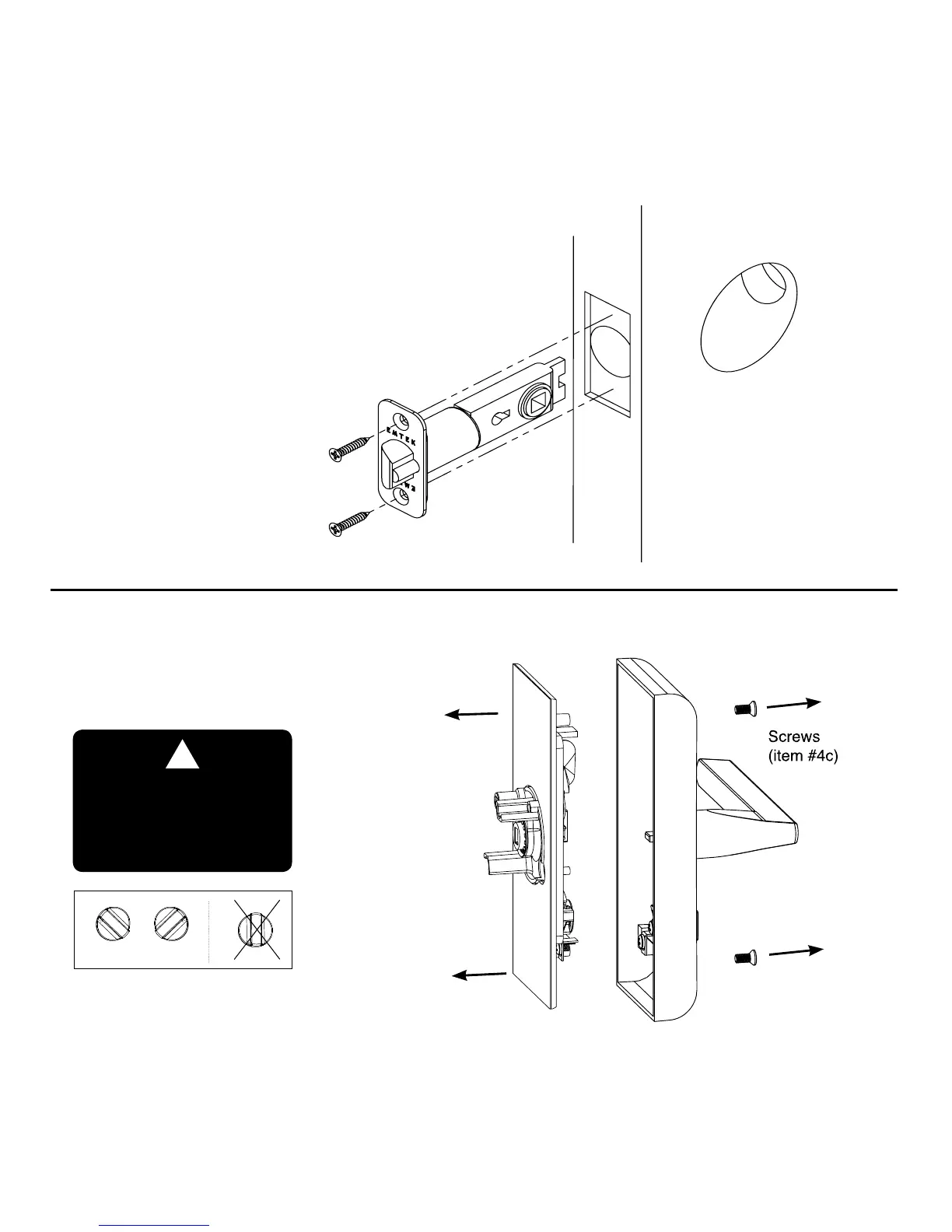

Fasten Latch using two
#8 x ¾” Wood Screws
(item #6).
Remove Screws from Inside Trim Plate
How to Install
!
Remove inside chassis from
trim plate before installing
the outside trim. Thumbturn
must be in neutral position.
Install Latch
LH RH
See Page 3 for Handing
Information.
1
2
To Next Page
