EN
5
TOP
!
Once positioned,
outside trim plate
assembly requires
support.
This side
on top.
!
Fit Plastic Extender
through latch.
Feed wire harness
through the bore hole.

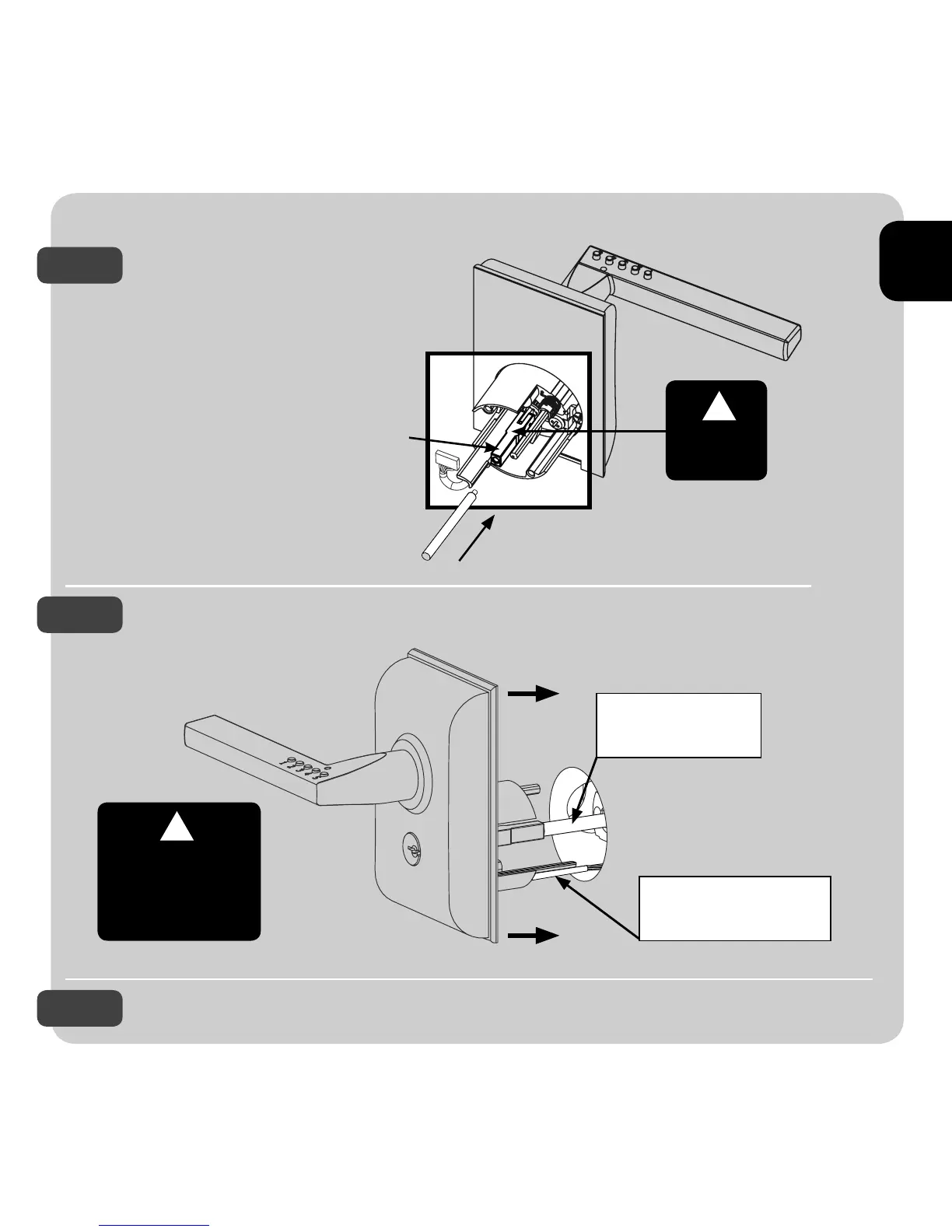

Install Outside Trim Plate Assembly
While holding Outside Trim
Plate Assembly, Press the Plastic
Extender (A) into end of Spindle
Shaft (B). The Shaft is properly
aligned when the marking
TOP’ can be seen from
an overhead view.
Position the Outside Trim Plate Assembly through the bore hole.
With the Outside Trim Plate Assembly ush to the door, REMOVE the Plastic Extender.
B
A
3
STEP 2
STEP 3
STEP 1
