4

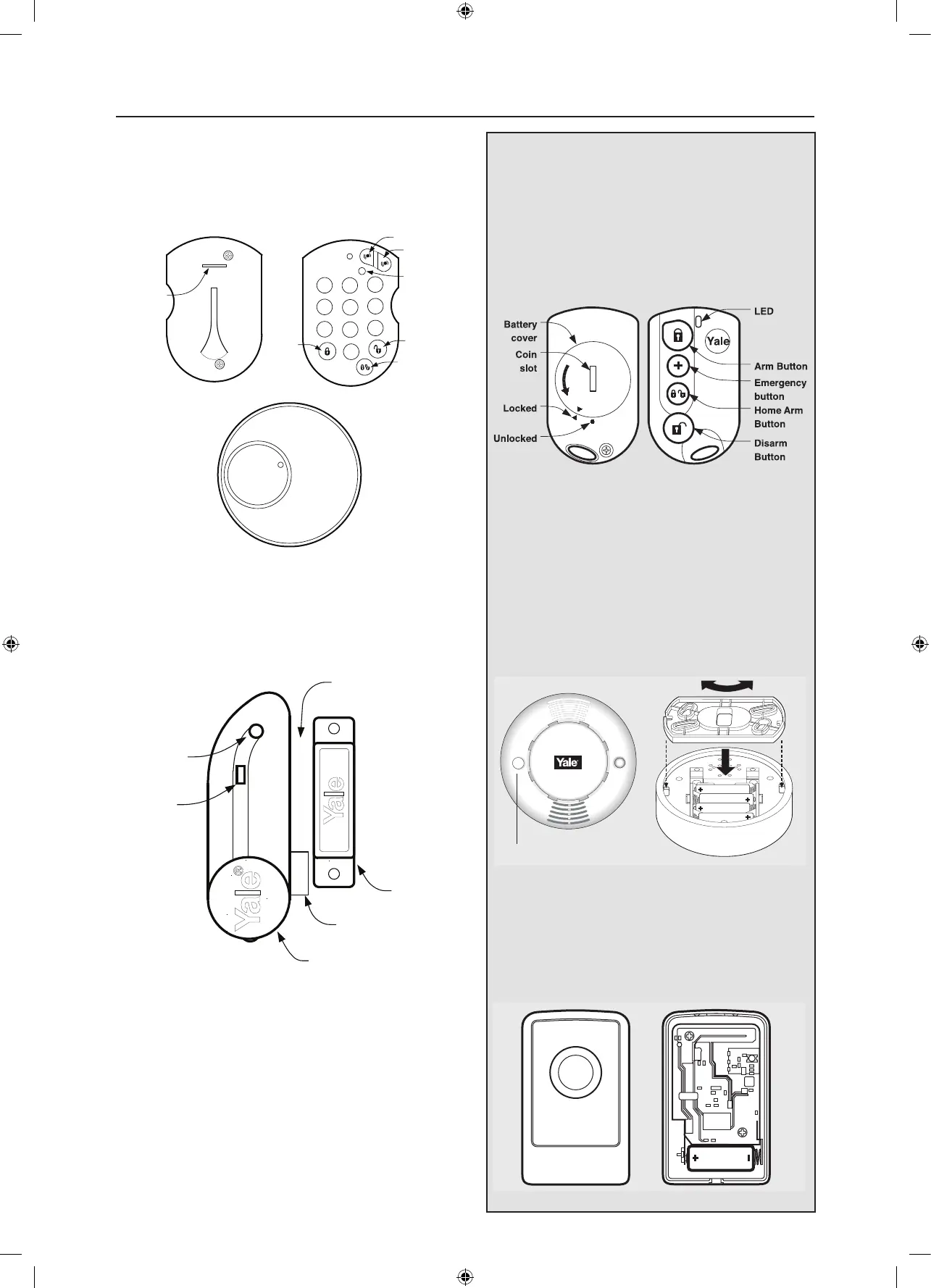

Keypad remote control
1 Pull out the plastic battery saver tab at the back of
the remote keypad. This will activate the batteries.
Door/window contacts
1 Pull out the plastic pull tab found on the side of the
main unit. This will activate the battery.
Smoke detector accessory
1 Remove the cover and insert the four AAA
batteries as shown
2 The Smoke detector will now enter into self-
calibration mode for 10 minutes. It will resume
normal operation after this period.
Door/window contacts
1 Remove the cover of each door/window contact
by loosening the fixing screw.
2 Insert two AAA batteries into each detector as
shown. The indicator LED will flash briefly.
7
Keypad remote control
Remove the cover and insert the 3 AAA alkaline
batteries as shown. The ‘Tx’ LED will flash briefly
while components initialise.
Please note, the Home button on the operating
panel and the jumper switch inside (do not move)
have no function on this model.
Smoke detector accessory
Remove the cover and insert the four AAA
batteries as shown.
Keyfob remote control accessory
Slide off the battery cover, insert the
23A/MN21 battery as shown, and replace
battery cover. Switch to ‘on’.
Help button accessory
Remove the cover by loosening the fixing
screw and insert the 12V battery (supplied) as
shown. Please ensure you observe battery
polarity.
Tamper
switch
Jumper
switch
Tamper
switch
Jumper
switch
Magnet
Extension terminals
Learn/Test button
Learn/Test
button
On/Off switch
Help button accessory
1 Remove the cover by loosening the fixing screw
and insert the 12V battery (supplied) as shown.
Please ensure you observe battery polarity.
Door/window contacts
1 Remove the cover of each door/window contact
by loosening the fixing screw.
2 Insert two AAA batteries into each detector as
shown. The indicator LED will flash briefly.
7
Keypad remote control
Remove the cover and insert the 3 AAA alkaline
batteries as shown. The ‘Tx’ LED will flash briefly
while components initialise.
Please note, the Home button on the operating
panel and the jumper switch inside (do not move)
have no function on this model.
Smoke detector accessory
Remove the cover and insert the four AAA
batteries as shown.
Keyfob remote control accessory
Slide off the battery cover, insert the
23A/MN21 battery as shown, and replace
battery cover. Switch to ‘on’.
Help button accessory
Remove the cover by loosening the fixing
screw and insert the 12V battery (supplied) as
shown. Please ensure you observe battery
polarity.
Tamper
switch
Jumper
switch
Tamper
switch
Jumper
switch
Magnet
Extension terminals
Learn/Test button
Learn/Test
button
On/Off switch
Battery
saver tab
ale
Y
R
1
2
3
6
5
4
7
8
9
0
A
B
Disarm
Home
Arm
Arm
LED
Yale
R
Battery
saver tab
Gap no more
than 8mm
Magnet
Sensor
Learn/Test
button
LED
Keyfob remote control accessory
1 Open the battery compartment using a coin
by turning the cover in the direction of the big
arrow so the cover small arrow is next to round
dot.
2 Insert battery and replace cover.
Panic
Button A
Panic
Button B
Gap approx
10mm
