8 500-24080, Rev 4

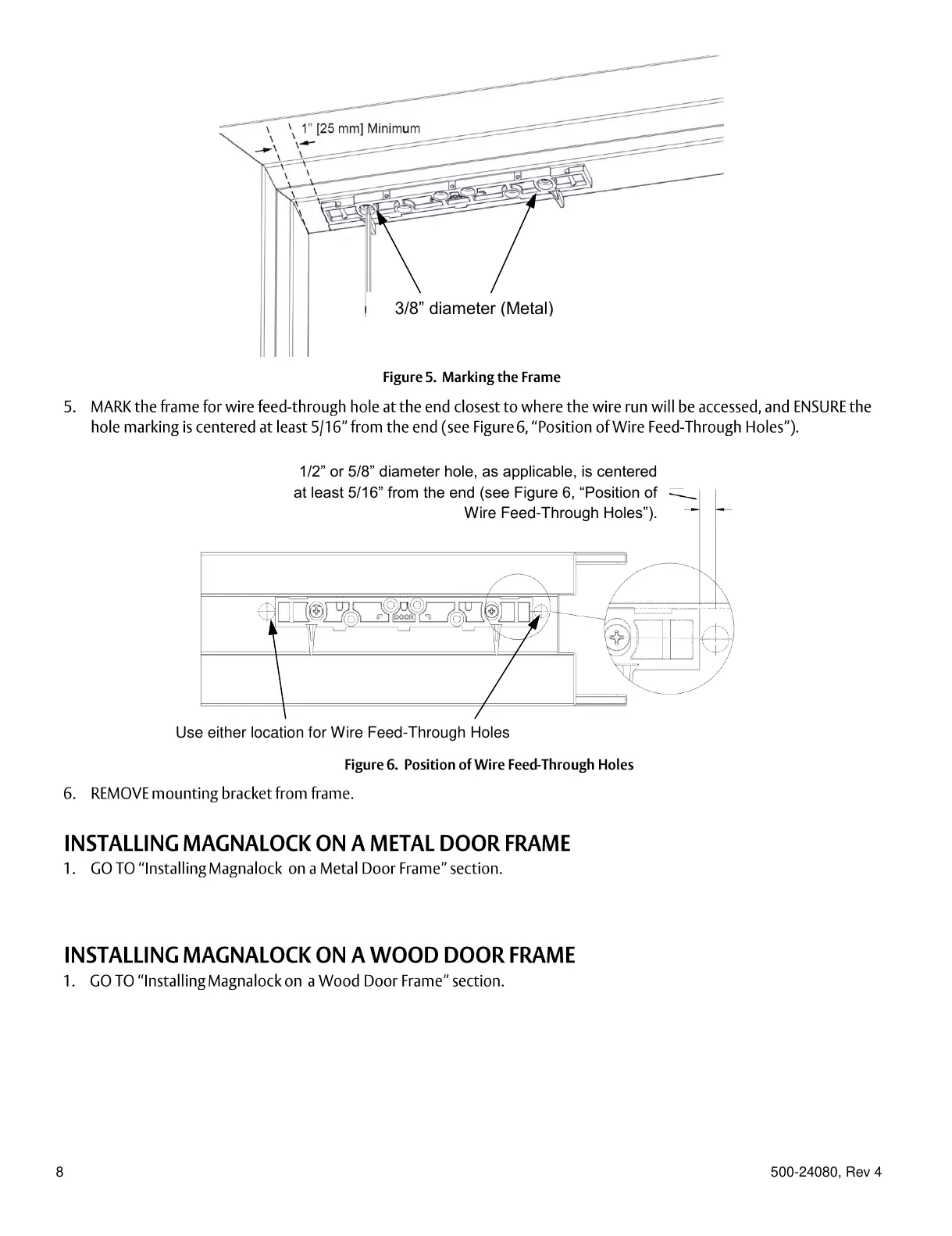

Use either location for Wire Feed-Through Holes
3/8” diameter (Metal)
1/2” or 5/8” diameter hole, as applicable, is centered
at least 5/16” from the end (see Figure 6, “Position of
Wire Feed-Through Holes”).
