Associated Electrics Element RC Enduro Builder's Kit 2 - Page 5

YOUR BUILD BEGINS HERE.
05

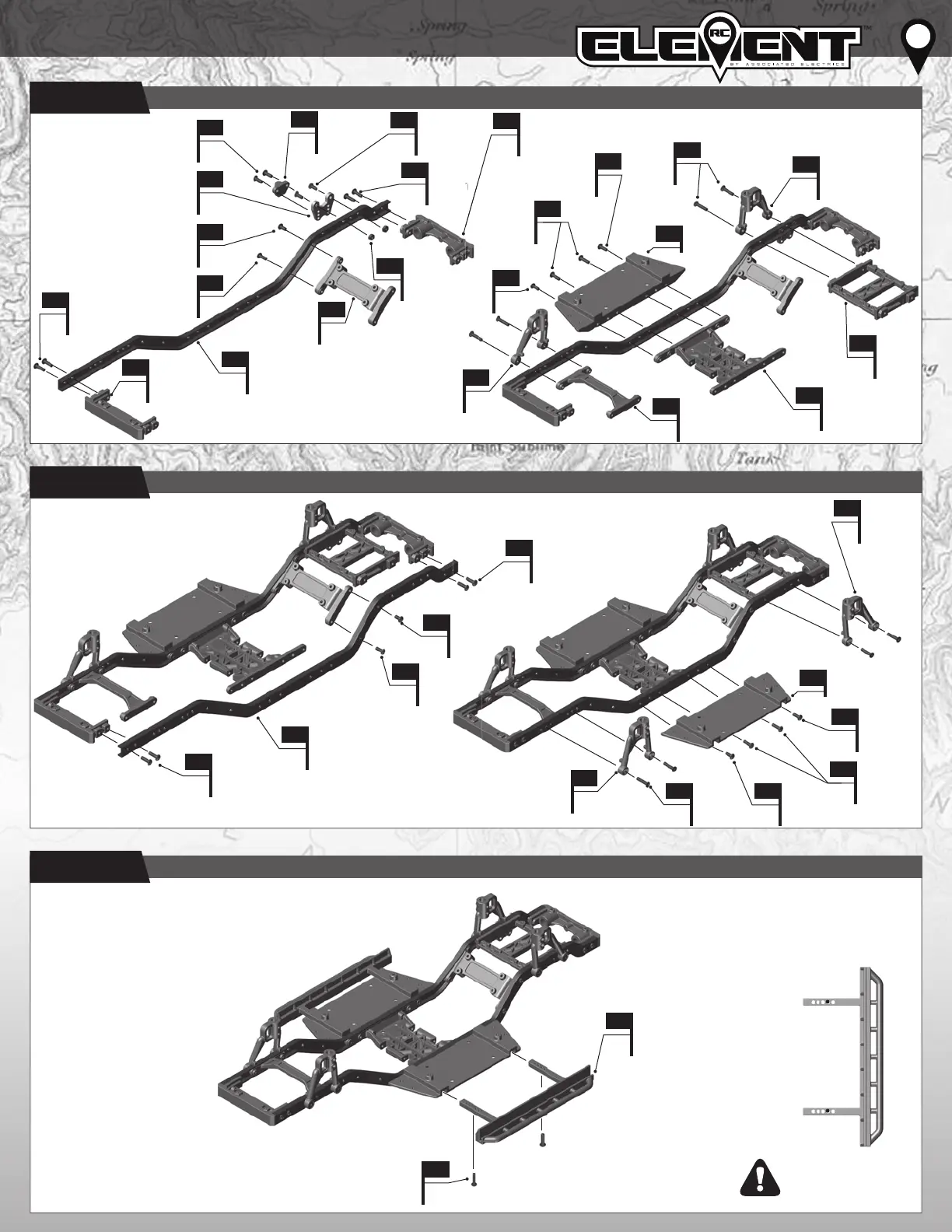

CHASSIS BUILD: BAG 1, 2
GATE 01
CHASSIS BUILD: BAG 1, 2
GATE 02
CHASSIS BUILD: BAG 1, 2
GATE 03
x2
x1
x1
x2
x2
x1
x1
x2
x1
x2
x1
x1
x1
31531
3x6mm
BHCS
31532
3x8mm
BHCS
42255
Panhard Plate
31532
3x8mm
BHCS
42002
Battery
Mount
25211
3x10mm
BHCS
42253
Bumper Mount
Rear
42253
Bumper Mount
Front
25211
3x10mm
BHCS
25201
3x8mm
FHCS
42254
Panhard
Mount
42257
Chassis Rail
Left
91447
M3 Nuts,
Plain
NOTE: Install Left and
Right side Rock Sliders
x4
x2
x1
x1
x1
x1
x1
x1
42254
Shock Mount
(Right, Rear)
89208
3x14mm
FHCS
25211
3x10mm
BHCS
31532
3x8mm
BHCS
31532
3x8mm
BHCS
42245
Trailrunner
Rock Slider
42254
Shock Mount
(Right, Front)
42006
Floor Board
x2
89202
3x12mm
BHCS
x2
x2
x1
x1
x1
25211
3x10mm
BHCS
25211
3x10mm
BHCS
31531
3x6mm
BHCS
31532
3x8mm
BHCS
42257
Chassis Rail
Right
3x10mm
x1
x1
x1
x1
x1
x1
x1
x2
x4
x1
31532
3x8mm
BHCS
31532
3x8mm
BHCS
25211
3x10mm
BHCS
25203
3x12mm
FHCS
42254
Shock Mount
(Left, Rear)
42254
Shock Mount
(Left, Front)
42262
Servo
Mount
42004
Gearbox
Mount
42002
Chassis Brace
Rear
42006
Floor Board
