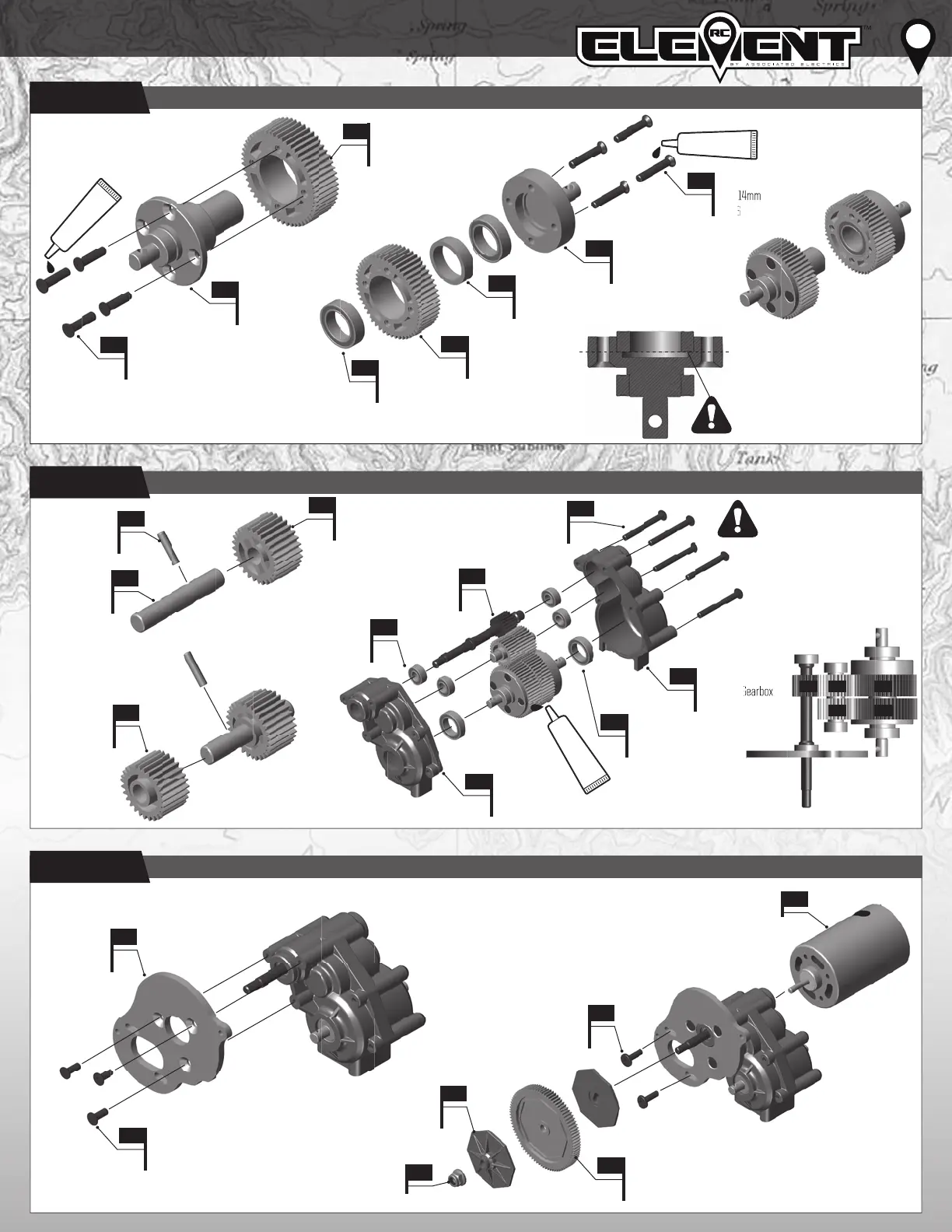

GEARBOX BUILD: BAG 4
GATE 01
GEARBOX BUILD: BAG 4
GATE 02
GEARBOX BUILD: BAG 4
GATE 03
x4
x1
x1
x2
x4
x2
x1
x1
x1
x1
x1
x1
NOTE: There are optional
gearbox builds on page 24
NOTE: Make sure the
10x15x4mm bearing is completely
seated in the short outdrive
x1
x1
x4
x5
x2
x1
42026
Stealth X Gearbox
Idler Gear, 27T
42030
Stealth X Gearbox
Top Shaft, Rear
91560
5x10x4mm
Bearing
41078
3x28mm
BHCS
42025
Idler Shaft Pin
2x9mm
42025
Stealth X Gearbox
Idler Shaft
31350
2.5x10mm
FHCS
42023
Stealth X Gearbox
Case
42023
Stealth X Gearbox
Case
91563
10x15x4mm
Bearing
41077
2.5x14mm
FHCS
91563
10x15x4mm
Bearing
42027
Stealth X Gearbox
Outdrive, Long
42027
Stealth X Gearbox
Outdrive, Short
42027
Stealth X Gearbox
Drive Gear Shim
42028
Stealth X Gearbox
Drive Gear, 52T
42026
Stealth X Gearbox
Idler Gear, 28T
42028
Stealth X Gearbox
Drive Gear, 53T
2.5x14mm
FHCS
Stealth X Gearbox
Stealth X Gearbox
20T 28T
27T
52T
53T
Over Drive Option 1 (Stock)
BLACK GREASE
#6588
BLACK GREASE
#6588
x3
x1
42029
Stealth X Gearbox
Motor Plate
25201
3x8mm
FHCS
BLACK GREASE
#6588
x1
x2
x2
x1
42023
Stealth X Gearbox
Spur Gear Hub
41090
3x10mm
LP SHCS
25391
FT M4 Locknut
9654
Spur Gear
48P, 87T
x1
Motor
