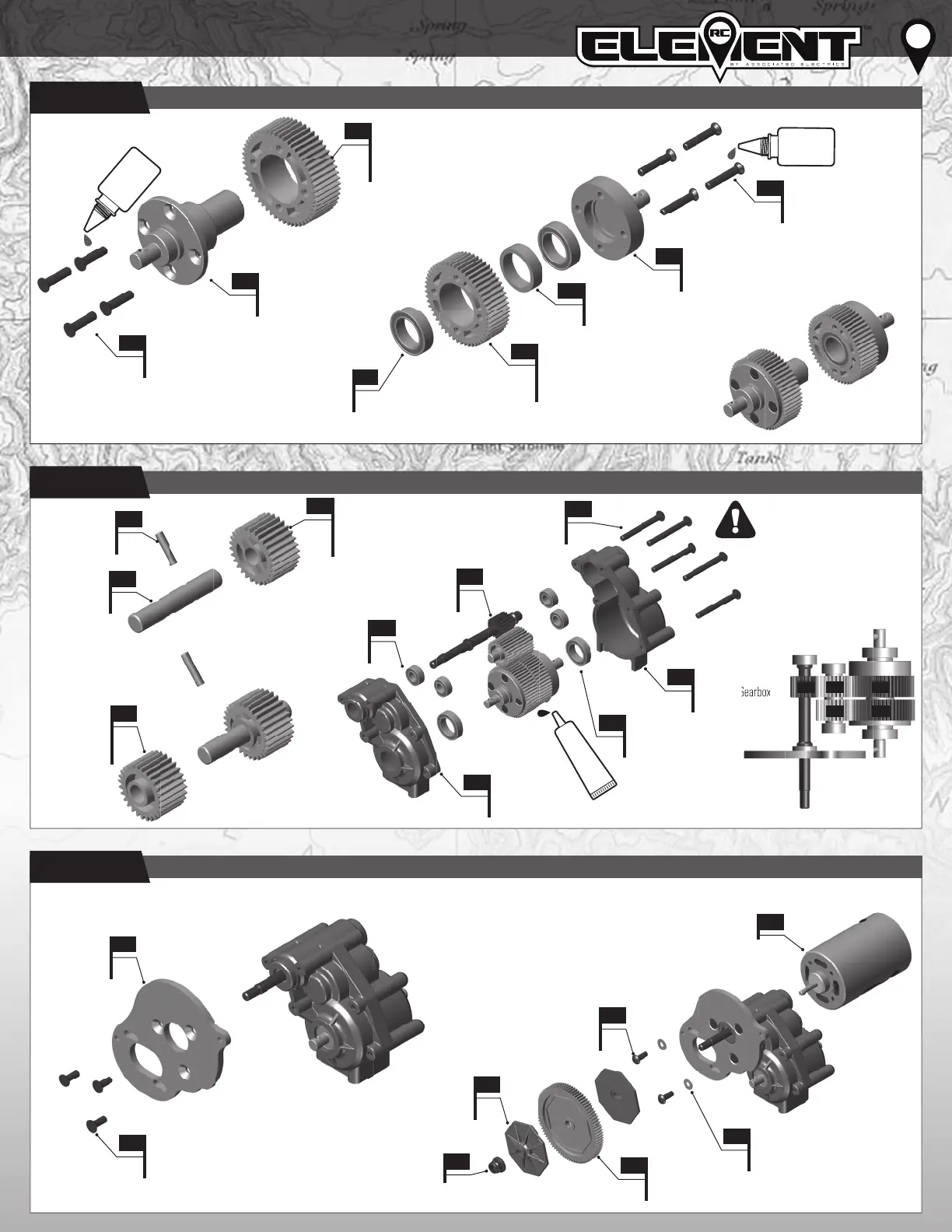

Associated Electrics Element RC Enduro - GEARBOX ASSEMBLY; GATE 01 GEARBOX BUILD; GATE 02 GEARBOX BUILD; GATE 03 GEARBOX BUILD

GEARBOX BUILD: BAG 4
GATE 01
GEARBOX BUILD: BAG 4
GATE 02
GEARBOX BUILD: BAG 4
GATE 03
07
33.664760, -117.676533
BLACK GREASE
#6588
THREAD LOCK
#1596
THREAD LOCK
#1596
x4
x3
x1
x2
x1
x1
x2
x4
x1
x1
x1
x1
x1
x1
NOTE: There are optional
gearbox builds on page 24
x1
x1
x2
x2
x1
x1
x4
x5
x2
x1
x2
42031
Stealth X Idler
Gear, 27T,
Machined
42029
Stealth X Gearbox
Motor Plate
42023
Stealth X Gearbox
Spur Gear Hub
31532
3x8mm
BHCS
25391
FT M4 Locknut
42030
Stealth X Gearbox
Top Shaft, Rear
91560
5x10x4mm
Bearing
41078
3x28mm
BHCS
42025
Idler Shaft Pin
2x9mm
42025
Stealth X Gearbox
Idler Shaft
91563
10x15x4mm
Bearing
31350
2.5x10mm
FHCS
25201
3x8mm
FHCS
9654
Spur Gear
48P, 87T
7337
.250x.125x.015”
Washer
42023
Stealth X Gearbox
Case
42023
Stealth X Gearbox
Case
91563
10x15x4mm
Bearing
41077
2.5x14mm
FHCS
42027
Stealth X Gearbox
Outdrive, Long
42027
Stealth X Gearbox
Outdrive, Short
42027
Stealth X Gearbox
Drive Gear Shim
42032
FT Stealth X
Drive Gear, 52T,
Machined
42031
Stealth X Idler
Gear, 28T,
Machined
42032
FT Stealth X
Drive Gear, 53T,
Machined
x1
Motor
*Not Included
Stealth X Gearbox
Stealth X Gearbox
20T 28T
27T
52T
53T
Over Drive Option 1 (Stock)
