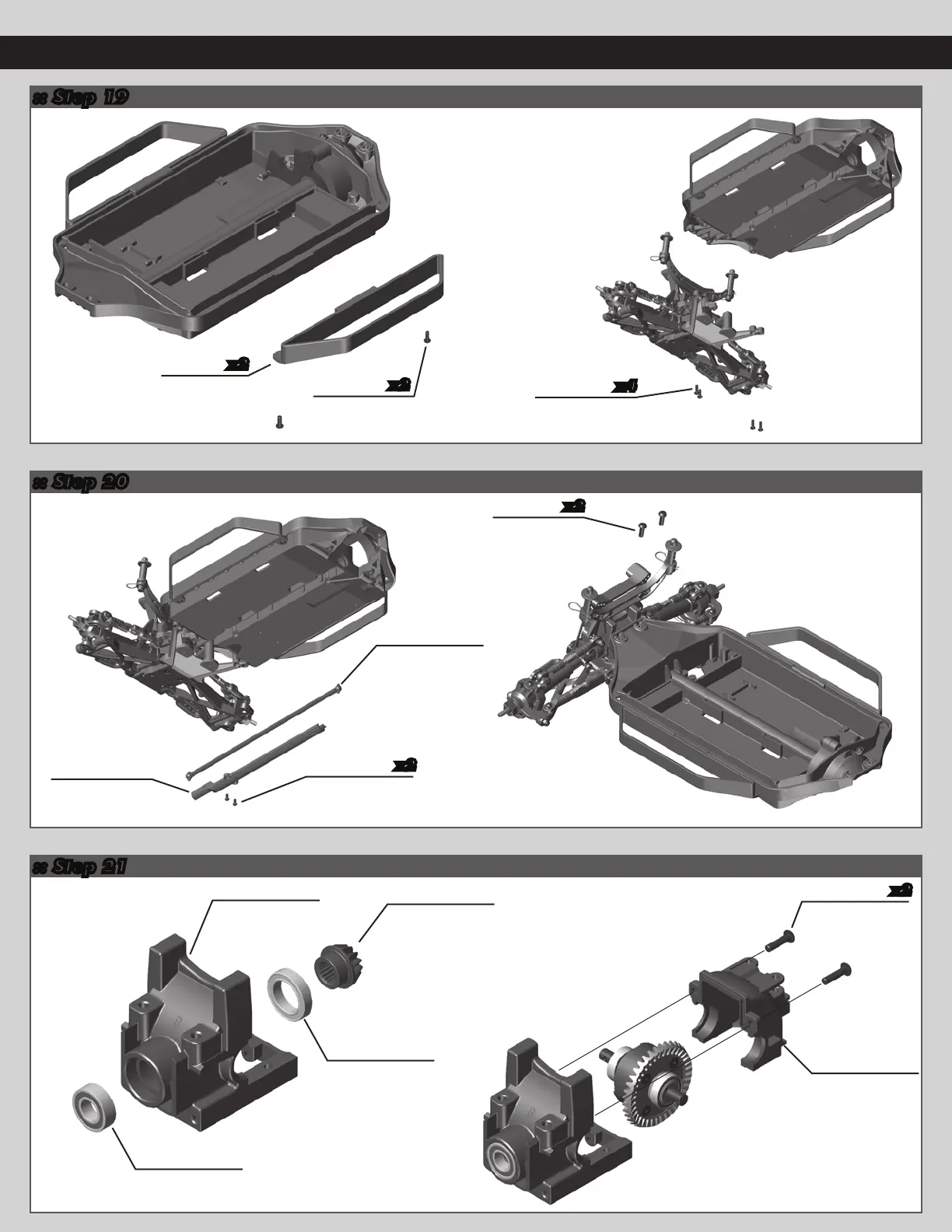

Associated Electrics PRO4 SC10 - Chassis, Drive Shafts, and Rear Gearbox; Step 19: Chassis Guard Installation; Step 20: Drive Shaft Installation; Step 21: Rear Gearbox Assembly

Associated Electrics PRO4 SC10
22 pages
Save Page as PDF
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
12
:: Step 21
:: Step 20
:: Step 19
x2
89202
3x12mm
BHCS
25806
Gearbox
Cap
25809
Input
Pinion
91564
8x16x5mm
Bearing
25843
12x18x4mm
Bearing
25806
Gearbox,
Rear
x2
31520
2.5x6mm
BHCS
25856
Drive Shaft
x2
x2
x2
x4
25852
Chassis
Guard
25211
3x10mm
BHCS
89207
4x12mm
BHCS
25852
Drive Shaft
Cover
25211
3x10mm
BHCS
