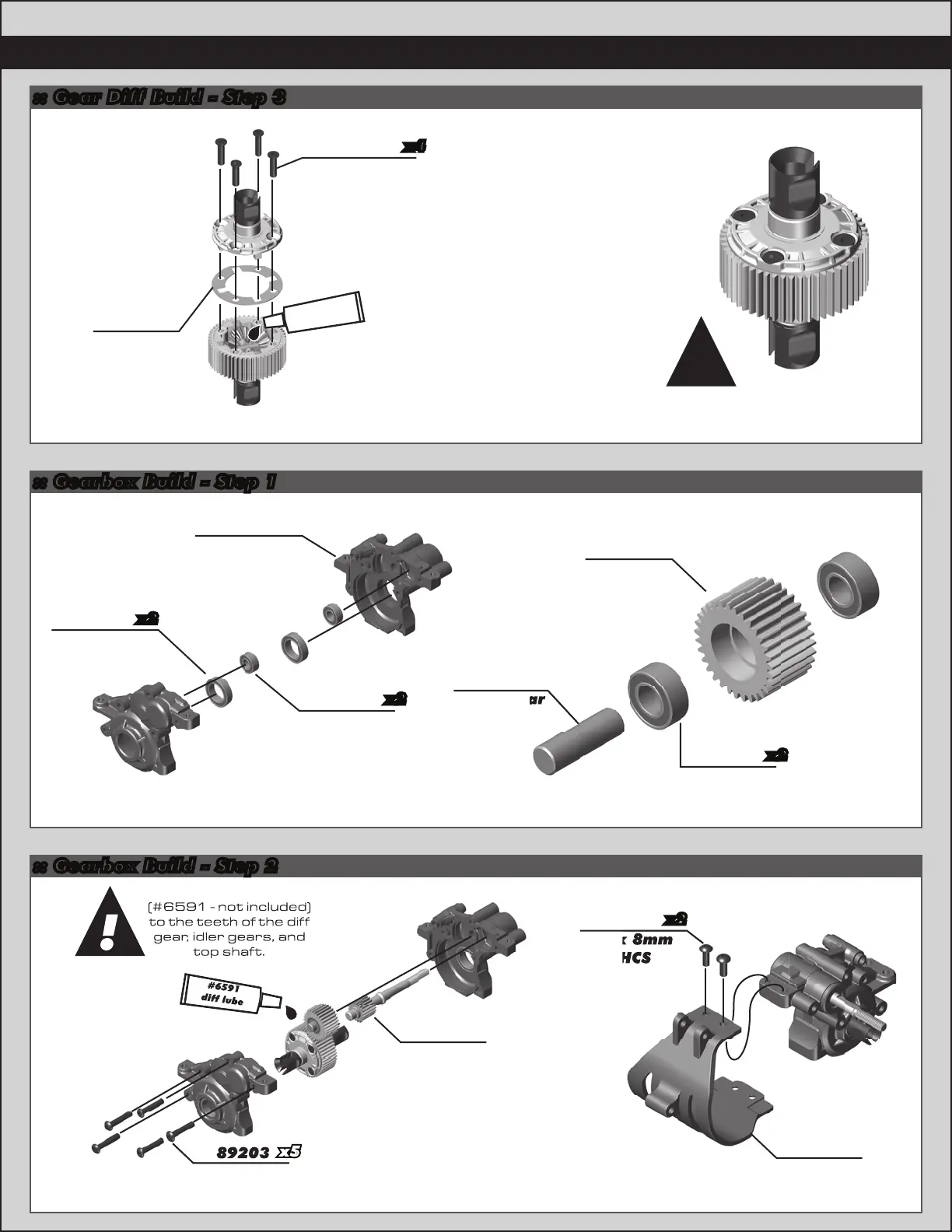

Associated Electrics RB10 - Gear Differential and Gearbox Assembly

12
:: Gearbox Build - Step 2
25237
5 x 10 x 4,
Bearing
91563
10 x 15 x 4,
Bearing
91430
Gearbox
(right & left)
91132
Idler Gear
Shaft
x2
x2
31532
M3 x 8mm
BHCS
x2
89203
M3 x 16mm
BHCS
x5
Add a drop of Diff Lube
(#6591 - not included)
to the teeth of the diff
gear, idler gears, and
top shaft.
!
#6591
diff lube
:: Gearbox Build - Step 1
:: Gear Diff Build - Step 3
M3 x 8mm
BHCS
89203
x5x5
(#6591 - not included)
to the teeth of the diff
gear, idler gears, and
top shaft.
!
#6591
diff lube
Idler Gear
* Ensure free outdrive
rotation before
installation!
!
91606
Top Shaft
Aluminum
91431
Motor
Guard
91463
Gear Diff
Gasket
31350
M2.5 x 10mm
FHCS
x4
25237
5 x 10 x 4,
Bearing
91466
Idler Gear
x2
#6588
black grease
