Associated Electrics RB10 - Gearbox and Slipper Clutch Installation; Locknut Alignment and Gear Mesh Reference

13

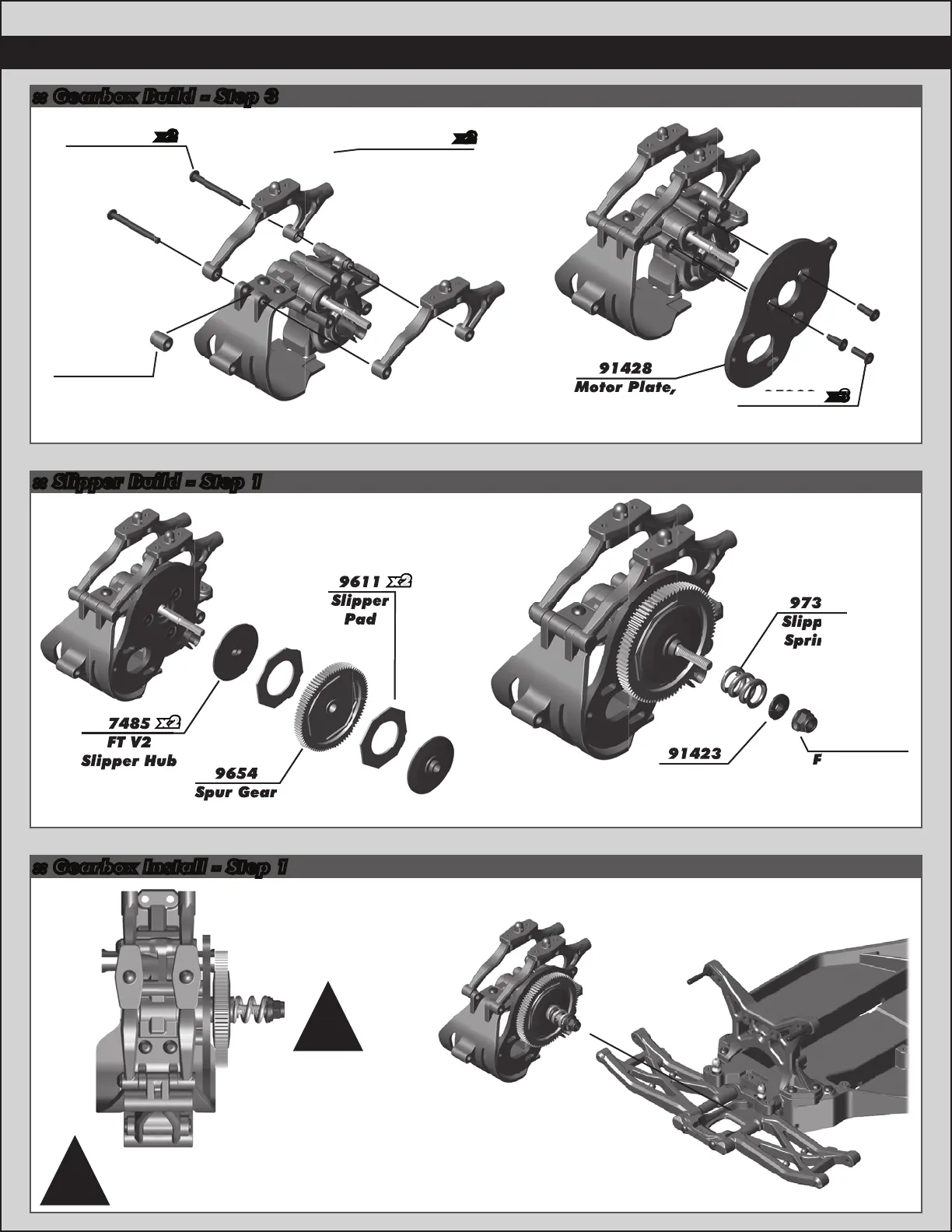

:: Gearbox Install - Step 1
:: Slipper Build - Step 1
:: Gearbox Build - Step 3
The locknut should
be flush with the
top shaft when
installed.
See page 23 for gear
mesh and slipper clutch
setting instructions!
!
!
x2
x2
9611
Slipper
Pad
7485
FT V2
Slipper Hub
9654
Spur Gear
87T, 48P
9739
Slipper
Spring
31551
FT Locknut,
M4 Blue
Aluminum,
Flanged
91423
Slipper
Spring
Adapter
9739
Slipper
Spring
FT Locknut,
91423
x2
x2
x2
x2
9611
Slipper
Pad
7485
FT V2
Slipper Hub
9654
Spur Gear
25202
M3 x 10mm
FHCS
x3
91428
Motor Plate,
Blue
25202
x3
x3
91428
Motor Plate,
91478
M3 x 30mm
FHCS
x2
71038
Rear Bumper
Spacer
71038
Body Mount
Brace
(Left & Right)
x2
