Associated Electrics RB10 - Front Suspension Assembly Steps

9

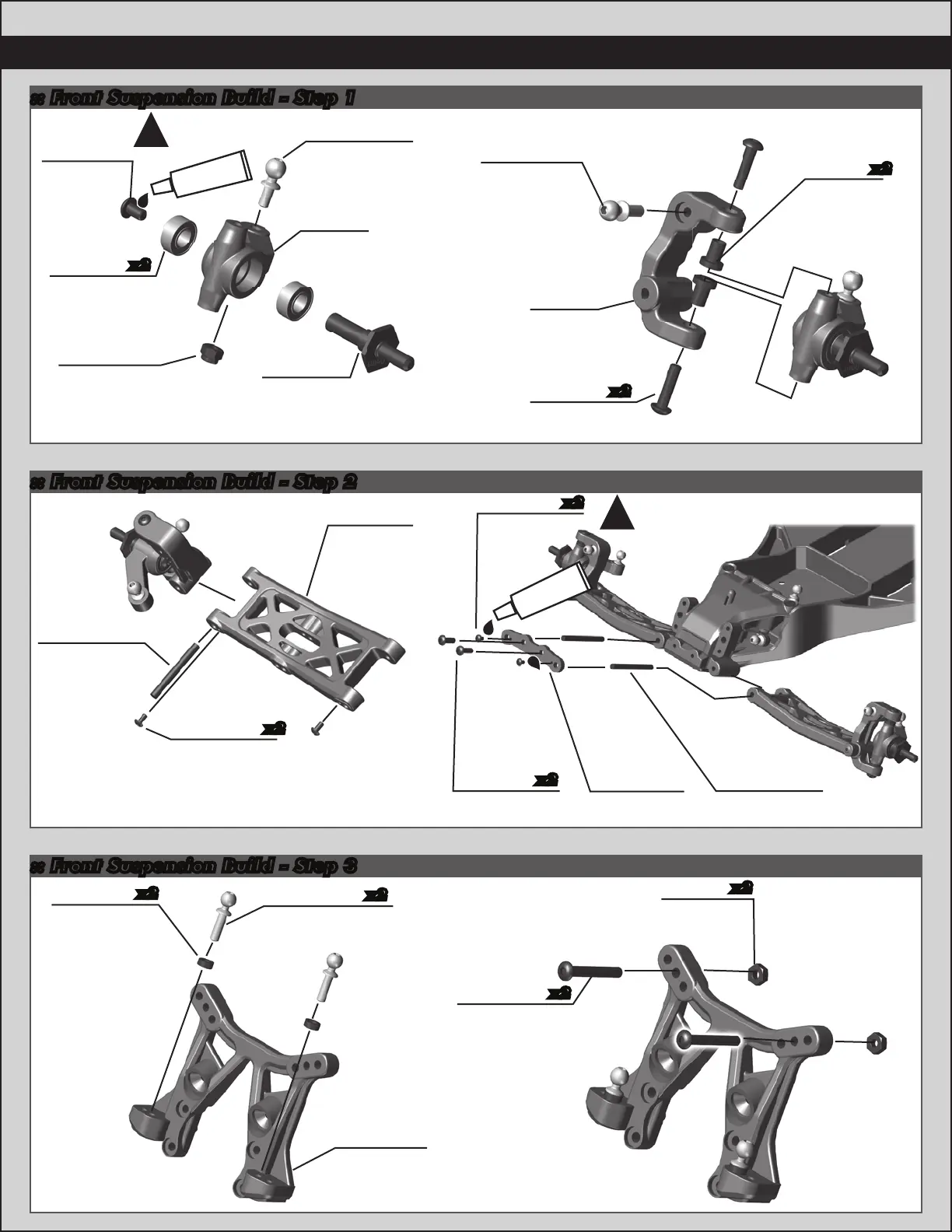

:: Front Suspension Build - Step 1
:: Front Suspension Build - Step 3
:: Front Suspension Build - Step 2
Build 2 (1 left, 1 right)
Build 2 (1 left, 1 right)
91048
Heavy-duty
Ballstud,
8mm
91417
Caster
Block
x2
31530
M3 x 5mm
BHCS
25215
M3 Locknut,
black
25237
5 x 10 x 4
Bearing
71188
SR10 Front
Axle,
4.5mm
91417
Steering
Block
#1596
thread lock
91047
Heavy-duty
Ballstud,
6mm
x2
89202
M3 x 12mm
BHCS
91402
Caster
Block
Bushing
x2
x2
x2
31510
M2 x 4mm
BHCS
31509
M2 x 3mm
BHCS
91394
Hinge Pin
(front, outer)
71068
Front Arms
91394
Hinge Pin
(front, Inner)
71049
Front Hinge
Pin Brace
25211
M3 x 10mm
BHCS
x2
#1596
thread lock
71093
SR10 Front
Shock
Tower
91049
Heavy-duty
Ballstud, 10mm
x2
x2
31383
FT Ballstud
Washer,
Aluminum
(2mm)
91477
M3 Nut
(Black)
x2
x2
89205
M3 x 26mm
BHCS
(Threadlock
Not Included!)
(Threadlock
Not Included!)
!
!
