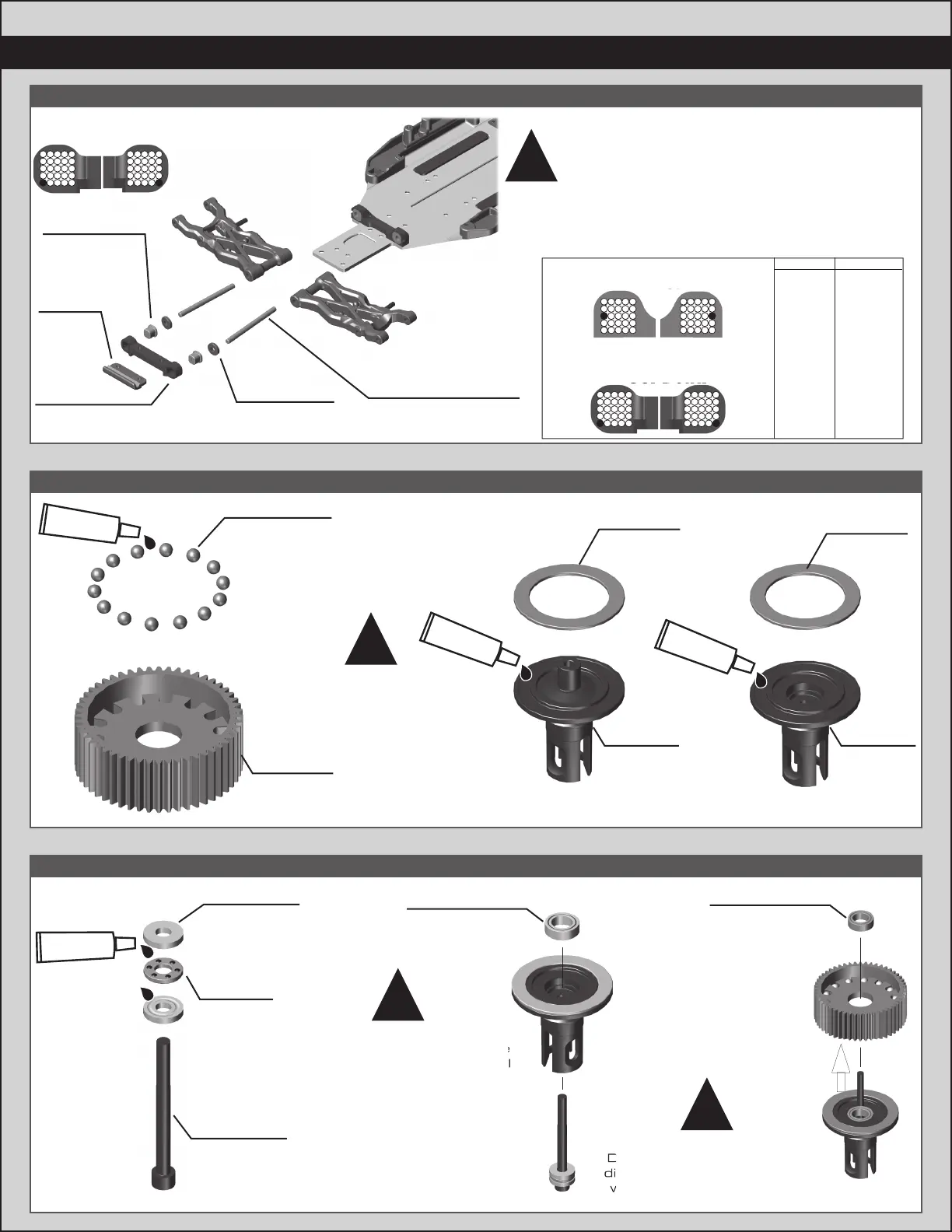

:: :: Bag 5 - Step 2Bag 5 - Step 2
:: :: Bag 5 - Step 1Bag 5 - Step 1
:: :: Bag 4 - Step 2Bag 4 - Step 2
8680
5 x 8 x 2.5mm,
Bearing
6581
3/32 Carbide
Diff Balls
91419
Diff Gear,
52T
91701
Ball Diff
Outdrive
91701
Ball Diff
Outdrive
7666
Diff Drive
Ring
7666
Diff Drive
Ring
x14x14
#6591
diff lube
#6591
diff lube
#6591
diff lube
Build Tip:
The bottom side of the gear has
3 injection dots. This side faced
down will keep the diff balls from
falling thru the holes
Build Tip:
Install the first washer (groove
up), add grease #6588. Install
the caged thrust washer.
Add grease on top of the balls,
then install the 2nd washer
(grooves down).
Build Tip:
Do this entire step with the
diff screw on the end of your
wrench for better control.
!
!
!
The (#91882) C and (#91883) D aluminum arm
mounts allow for a large amount of setup
combinations when using the (#92014) 0.5°
and 1° arm mount inserts.
For a complete list of pill setup combinations, please
visit our website by using the link below.
http://bit.ly/B6PillChart
!
Anti-SquatToe-In
3°
Kit Setup
2°
Kit Setup
Arm Mount C:
1° Out
Arm Mount D:
1° Out Down
Arm Mount D:
1° Out Down
91685
Rear
Bumper
91883
Aluminum
Arm Mount, D
91670
Rear Hinge Pin
(Inner, 3.5x48mm)
92014
Arm Mount
Inserts (1°)
91853
Rear Arm
Spacer
x2x2
x2x2
x2x2
#6588
black grease
91990
Thrust
Washer
91990
Caged
Thrust
Bearing
6573
Diff Thrust
Bolt
x2x2
Install the first washer (groove
up), add grease #6588. Install
Add grease on top of the balls,
Do this entire step with the
diff screw on the end of your
wrench for better control.
8680
5 x 8 x 2.5mm,
Bearing
To Next Page
