Associated Electrics RC10 B6.4D TEAM KIT - Page 19

19

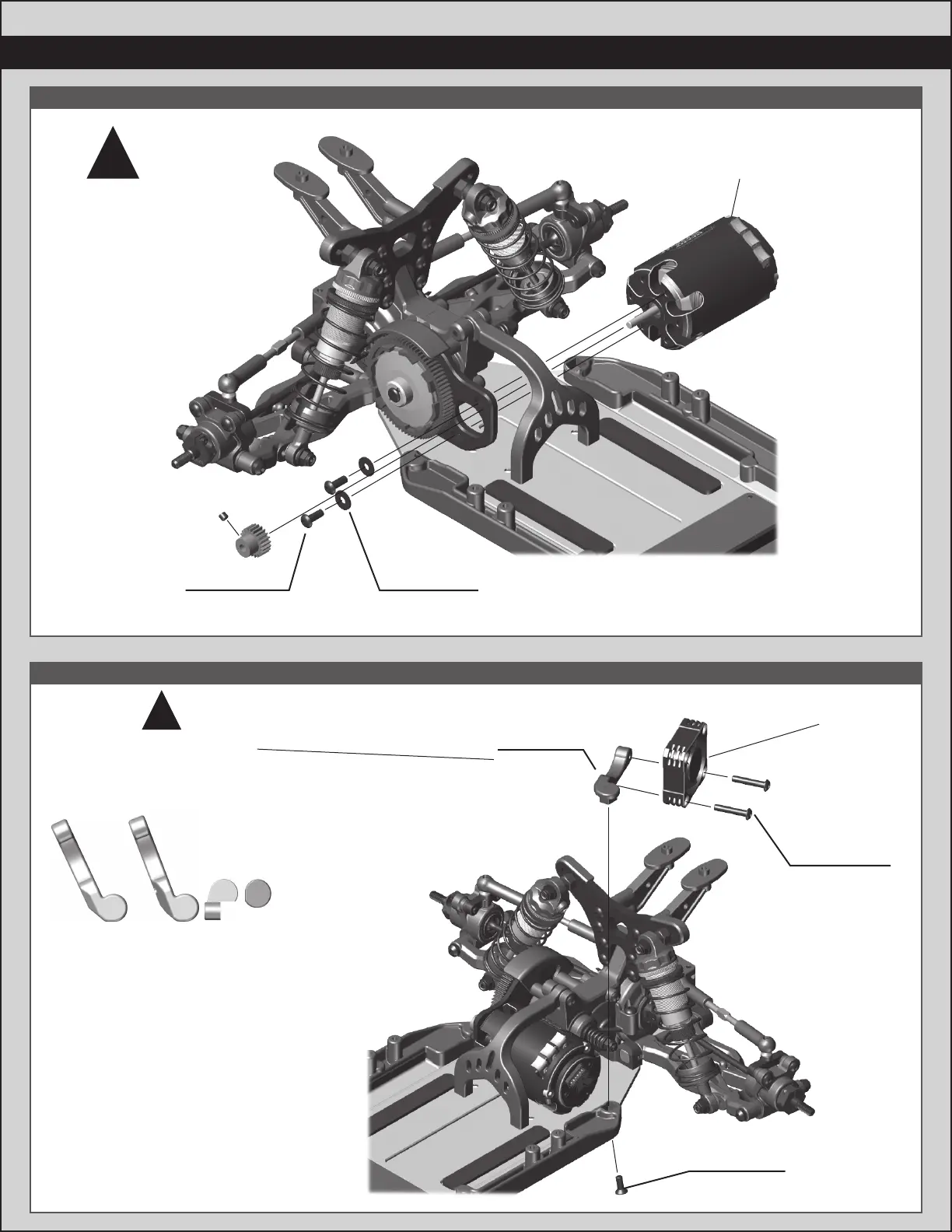

:: :: Bag 10 - Step 1Bag 10 - Step 1
:: :: Bag 10 - Step 2Bag 10 - Step 2
Fan not included!
25201
M3 x 8mm
FHCS
89203
M3 x 16mm
BHCS
91978
Fan Mount
#1
Fan mount options:
#1 - Laydown gearbox
#2 - Layback gearbox
#3 - Endbell location
#4 - Plug (no fan)
!
See page 25 for
gear mesh setting
instructions!
!
Motor not included!
Pinion & Setscrew
not included!
31532
M3 x 8mm
BHCS
x2x2
x2x2
89218
3 x 8mm
Washer
1
2
3 4
