11

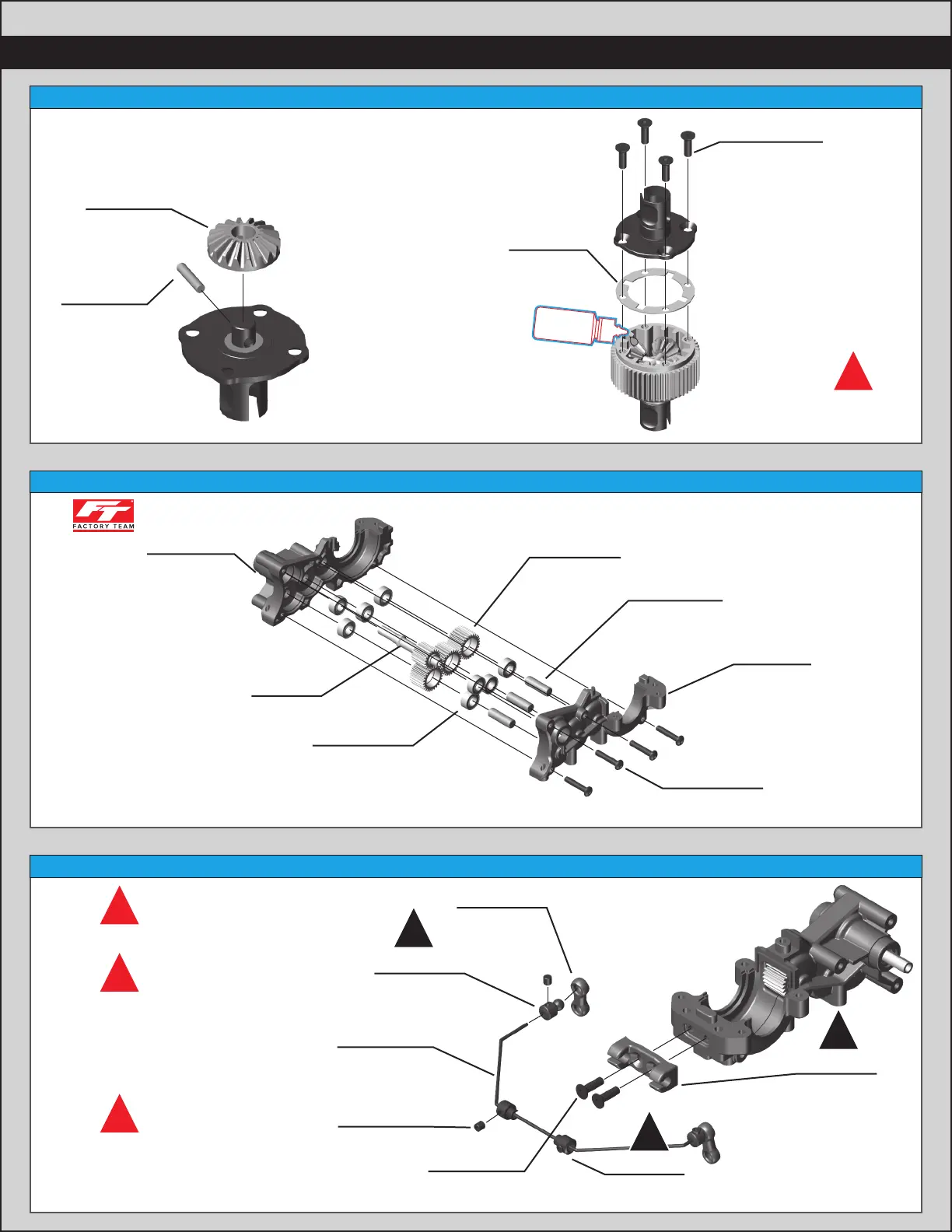

:: :: Bag 5 -Bag 5 - Step 3 Step 3
:: :: Bag 6 -Bag 6 - Step 1 Step 1
:: :: Bag 6 -Bag 6 - Step 2 Step 2
31522
M2.5 x 10mm
BHCS
x4x4
92138
Gear Diff
Outdrive Pin
92306
Gear Diff Sun
Gear LTC
92133
Gear Diff
Gasket, B74
Fill to top of the
cross pins
!
92405
B7 Gearbox
(right)
92405
B7 Gearbox
(left)
91560
5 x 10 x 4,
Bearing
89203
3x16mm
BHCS
92405
Anti-Roll Bar
Mount
92457
Anti-Roll Bar
Collars
92421
Idler Gear
26T
92447
Top Shaft
B7
91132
Idler Gear
Shaft,
Aluminum
x8x8
x4x4
x3x3
x3x3
92419
Anti-Roll
Bar Link
92457
Anti-Roll
Bar Pivot
92458
Rear Anti-Roll
Bar, 1.2mm
25225
M3 x 3mm
Set Screw
25202
M3 x 10mm
FHCS
x2x2
x2x2
x2x2
x4x4
x2x2
92406
Carbon
B7 Gearbox
DIFF
FLUID
Do not over-tighten the
anti-roll bar set screws.
The anti-roll bar should
rotate freely in the
assembly.
Note order of assembly.
Note: Orientation of set
screws should face away from
gearbox. Insert one collar and
bar, then add second collar for
installation. Center anti-roll
bar. Do not overtighten!
!
!
!
1
2
3
