Associated Electrics RC10 B7 TEAM KIT - Page 13

13

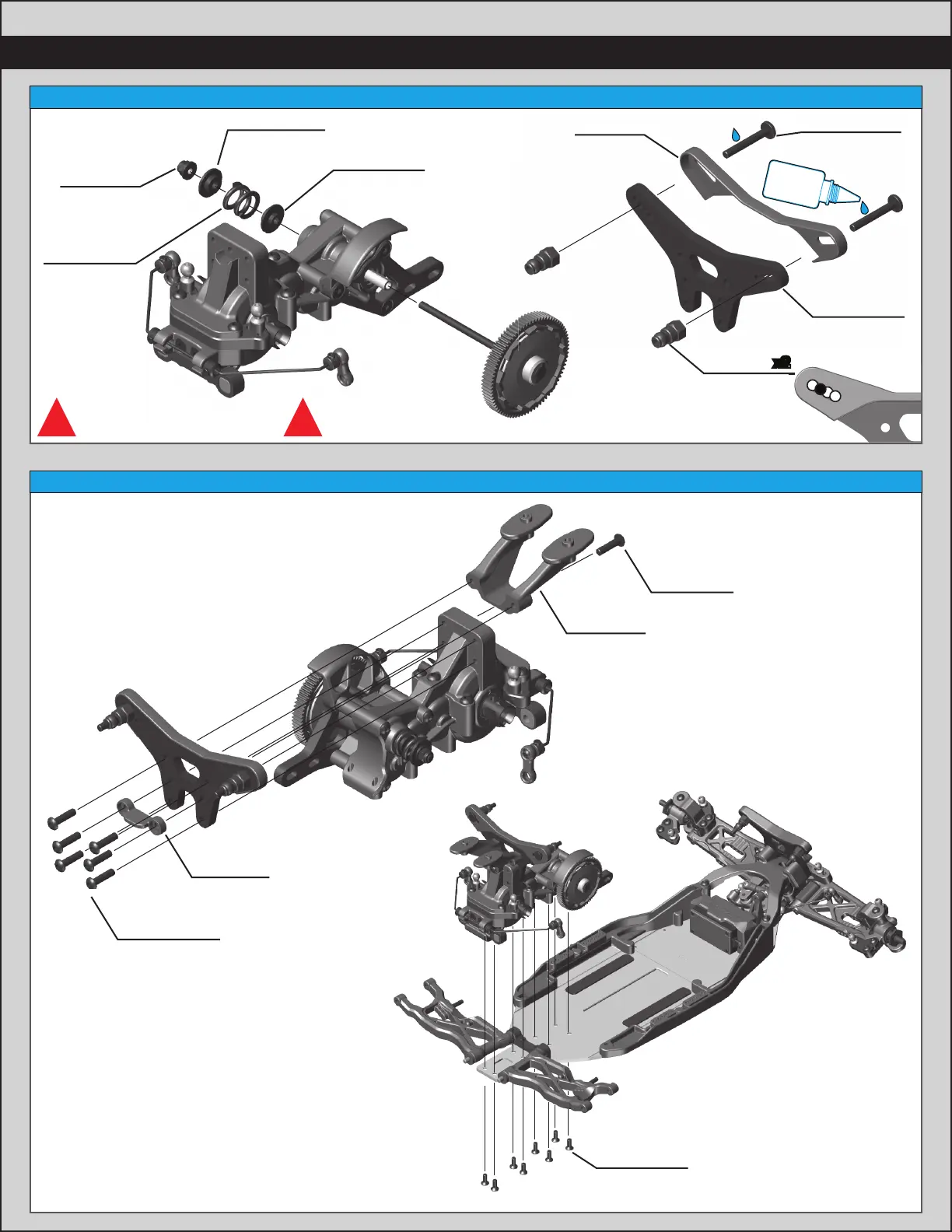

:: :: Bag 6 -Bag 6 - Step 5 Step 5
:: :: Bag 6 -Bag 6 - Step 6 Step 6
See page 23 for gear mesh, and
slipper clutch setting instructions!
Set nut fl ush with
top shaft as a
starting point.
92426
Rear Tower
Cover
41095
M3 x 22mm LP
SHCS
x2x2
92159
Shock
Bushing,
10mm
92431
Rear Shock
Tower, B7
x2
89202
M3 x 12mm
BHCS
92417
Rear Body
Mount
92417
Rear Wing
Mount
x6x6
25201
M3 x 8mm
FHCS
x8x8
91891
Slipper Spring
Adapter, Inner
91891
Slipper Spring
Adapter, Outer
92276
B74.1 Slipper
Spring, 500lb
25612
M3 Locknut,
Flanged
! !
89202
M3 x 12mm
BHCS
THREAD
LOCK
#1596
x2
x2
33
44
22
11
