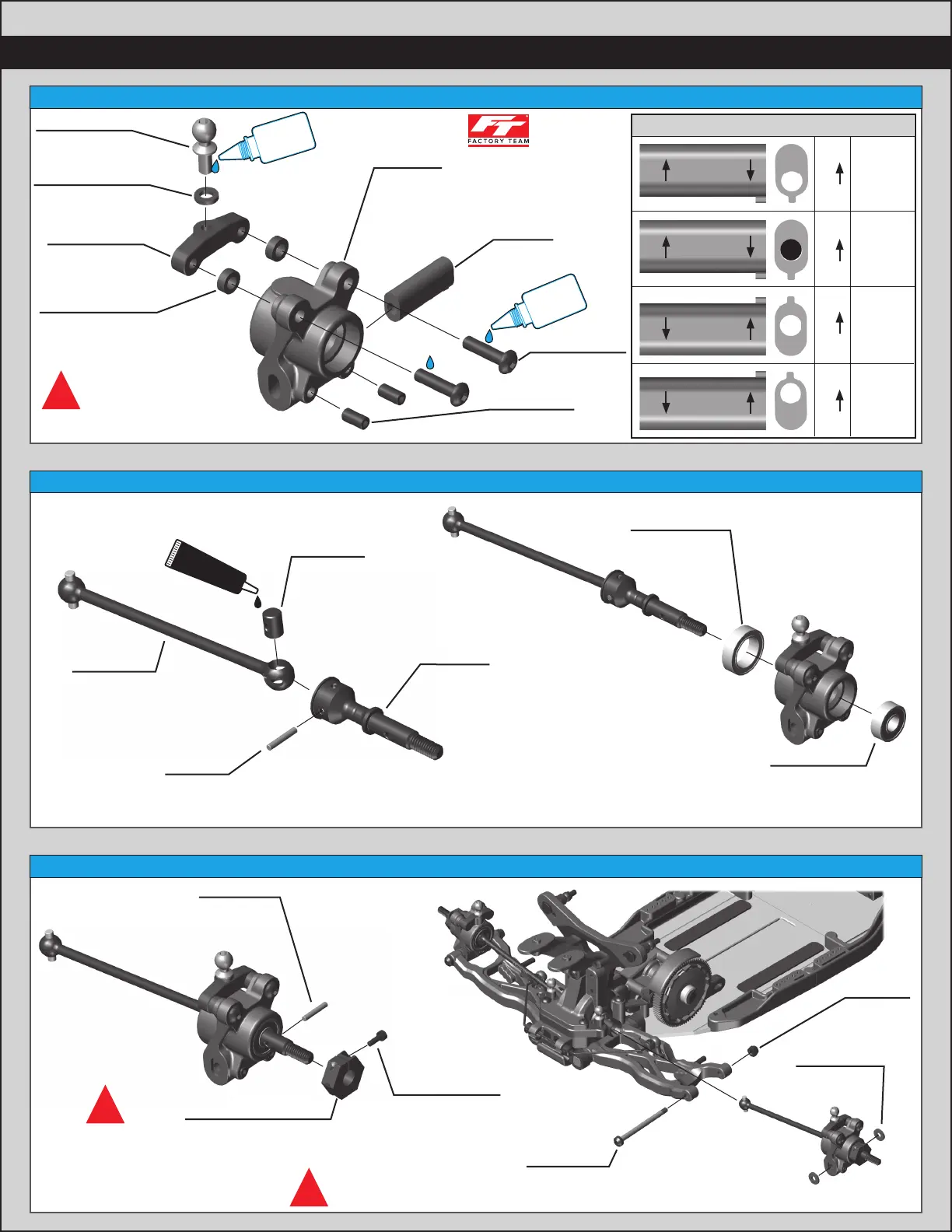

:: :: Bag 7 -Bag 7 - Step 1 Step 1
:: :: Bag 7 -Bag 7 - Step 2 Step 2
:: :: Bag 7 -Bag 7 - Step 3 Step 3
Build x2 (right and left side)
Build x2 (right and left side)
91611
M1.6 x 5mm
SHCS
91436
CVA Wheel
Hex Pin
91609
Clamping Wheel Hex,
5mm Off set (rear)
Do not overtighten the
1.6 x 5mm SHCS into the
Clamping wheel hex.
Note: HRC and Std hubs
included in Kit.
HRC allows for higher axle
heights (+2 positions)
Hinge Pin will be tight in the rear
hub, but should rotate freely
in the rear arms.
Build x2 (right and left side)Build x2
91563
10 x 15 x 4
Bearing
91567
5 x 12 x 4
Bearing
91859
CVA Axle,
+2mm
91438
CVA Pin
91438
CVA
Coupler
92454
HD CVA
Bone,
69mm
Build x2 (right and left side)
Rear Axle Height
1
0
3
2
+3mm
+2mm
Kit
Setup
+1mm
+0mm
0
3
1
2
1
2
0
3
92179
Rear Hub
Spacer
x2x2
92188
Rear Hub
Hinge Pin
25215
M3
Locknut
89202
M3 x 12mm
BHCS
81267
M3 x 6mm
Set Screw
x2x2
x2x2
91047
Heavy-duty
Ballstud, 6mm
92441
Rear Hub Link
Mount, +1mm
92412
B7 Rear
Hubs, HRC
92413
Carbon B7
Rear Hubs,
HRC
92179
Rear Hub
Inserts
31383
Ballstud Washers,
5.5x2.0mm, blue
31382
Ballstud Washers,
5.5x1.0mm, blue
x2x2
THREAD
LOCK
#1596
THREAD
LOCK
#1596
BLACK GREASE
#6588
!
!
!
