15

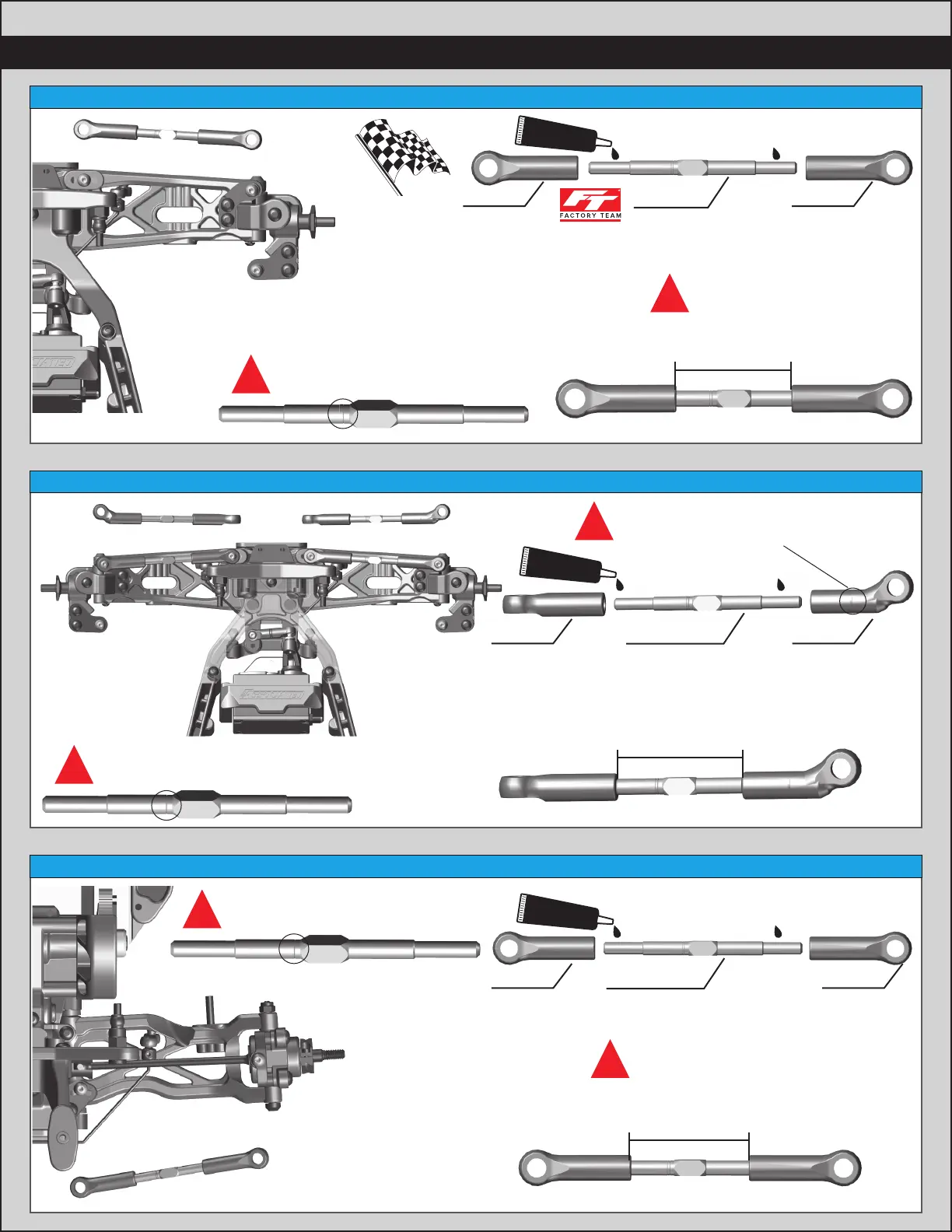

:: :: Bag 8 -Bag 8 - Step 1 Step 1
:: :: Bag 8 -Bag 8 - Step 2 Step 2
:: :: Bag 8 -Bag 8 - Step 3 Step 3
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92308
Ball Cup
92337
Turnbuckle
3.5x48mm
92360
Titanium
Turnbuckle
3.5x48mm
92337
Turnbuckle
3.5x48mm
92337
Turnbuckle
3.5x48mm
Racers Tip:
Use black grease
(#6588) on the
threads of the
turnbuckles for
easier ball cup
installation!
Build x2 (right and left side)
Build x2 (right and left side)
Build x2 (right and left side)
Front Camber Turnbuckle
Steering Turnbuckle
Rear Camber Turnbuckle
26.60mm
28.70mm
27.40mm
There are two off set ballcups labeled
“1” and “2”. The ballcup labeled “1”
goes on the right side of the vehicle.
Measurements given are
approximation. Camber
should be set with a gauge
at ride height.
BLACK GREASE
#6588
BLACK GREASE
#6588
BLACK GREASE
#6588
Orient the notch to the left throughout
the car. It indicates which end has the
left hand threads!
!
Orient the notch to the left throughout
the car. It indicates which end has the
left hand threads!
!
Orient the notch to the left throughout
the car. It indicates which end has the
left hand threads!
!
!
!
Measurements given are
approximation. Camber
should be set with a gauge
at ride height.
!
