Associated Electrics RC10 B7 TEAM KIT - Shocks, Body, and Tuning; Bag 9: Shock Assembly and Bleeding

16

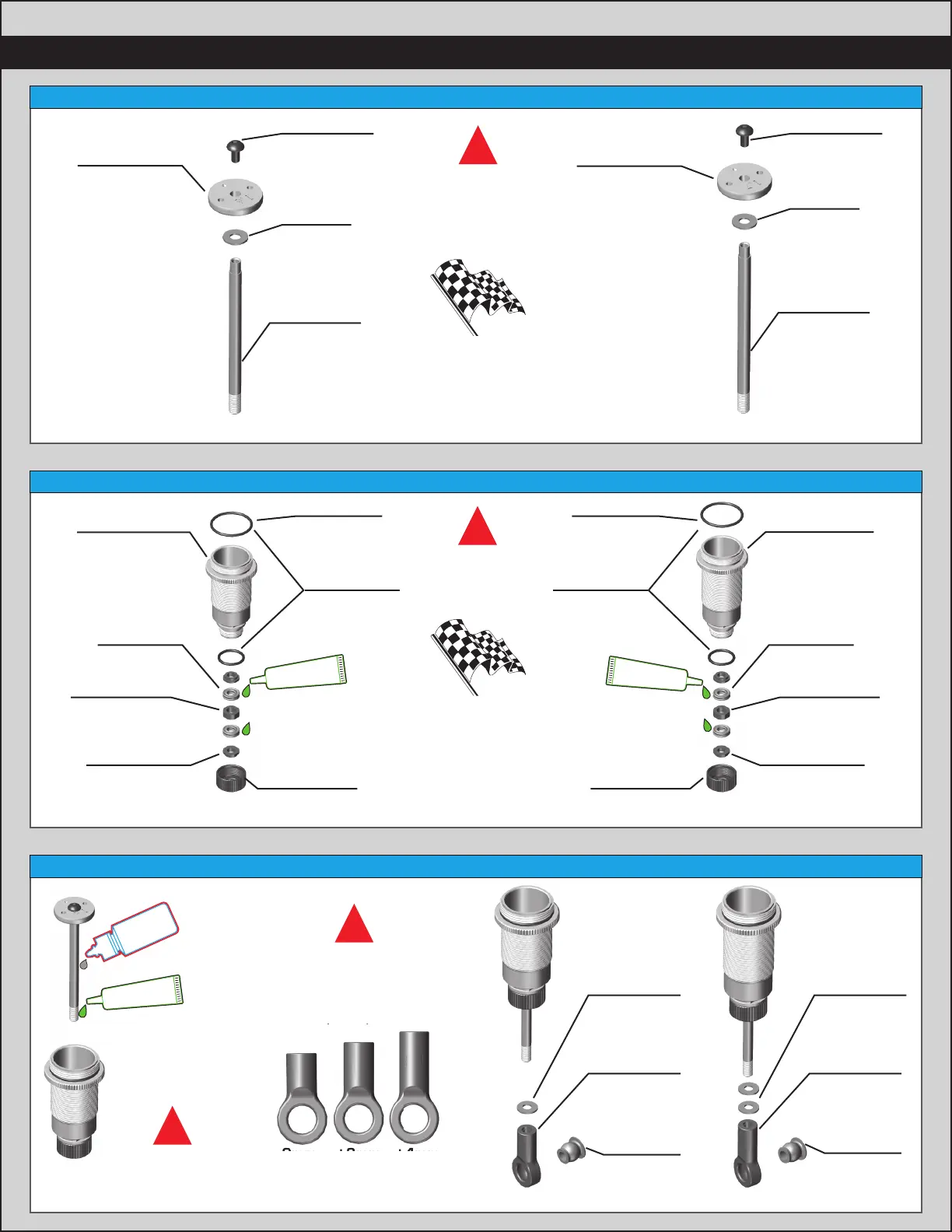

:: :: Bag 9 -Bag 9 - Step 1 Step 1
:: :: Bag 9 -Bag 9 - Step 2 Step 2
:: :: Bag 9 -Bag 9 - Step 3 Step 3
!
!
!
!
Build x2 front shocks
Build x2 front shocks
Build x2 front shocks
Build x2 rear shocks
Build x2 rear shocks
Build x2 rear shocks
Racers Tip:
Use a marker over the
numbers on the pistons to
make them easily visible!
Mount the shock
pistons with the
number facing up!
91932
FT 13mm Shock
Piston, 2.5mm
[2x1.6]
“front”
92428
FT 13mm
Shock Piston,
2.5mm [2x1.9]
“rear”
91617
V2 3 x 23
Shock Shaft TiN
“front”
31510
M2 x 4mm
BHCS
31510
M2 x 4mm
BHCS
89278
2.5mm
Washer
89278
2.5mm
Washer
91619
V2 3 x 27.5
Shock Shaft
TiN “rear”
Lightly rub shock oil on the
O-ring before installation!
Racers Tip:
Coating the O-rings with
green slime (#1105) helps
seal & reduce O-ring swell!
Green slime not included
in kit!
91920
13x23mm Shock
Bodies “front”
91922
13x27.5mm
Shock Bodies
“rear”
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Hat Bushing
91996
13mm Shock
Spacer
91996
13mm Shock
Spacer
91493
X-Ring
91493
X-Ring
31327
VCS3 Shock
Bottom Cap
31327
VCS3 Shock
Bottom Cap
91996
13mm Shock
Cap O-Ring
91996
13mm Shock
Cap O-Ring
x2x2 x2x2
x2x2 x2x2
There are 3 lengths of
shock eyelet in the kit.
Pay attention to length when
building as these aff ect your
droop and uptravel.
Lightly rub shock fl uid or
green slime on threads
92419
Shock Eyelets
Front Shocks
0mm
92419
Shock Eyelets
Front Shocks
+2mm
4187
Nylon
Washer
4187
Nylon
Washer
91819
Shock
Pivot Ball
91819
Shock
Pivot Ball
0mm +2mm +4mm
droop and uptravel.
0mm
+2mm
+4mm
+2
+4
0
FT GREEN SLIME
#1105
FT GREEN SLIME
#1105
FT GREEN SLIME
#1105
SHOCK
FLUID
x2x2
