:: :: Bag 9 -Bag 9 - Step 4 Step 4
:: :: Bag 9 -Bag 9 - Step 5 Step 5
:: :: Bag 9 -Bag 9 - Step 6 Step 6
Front Shock: 35wt
#5429
Rear Shock: 30wt
#5422
Steps 9-10Step 8Steps 6-7Steps 4-5Steps 2-3

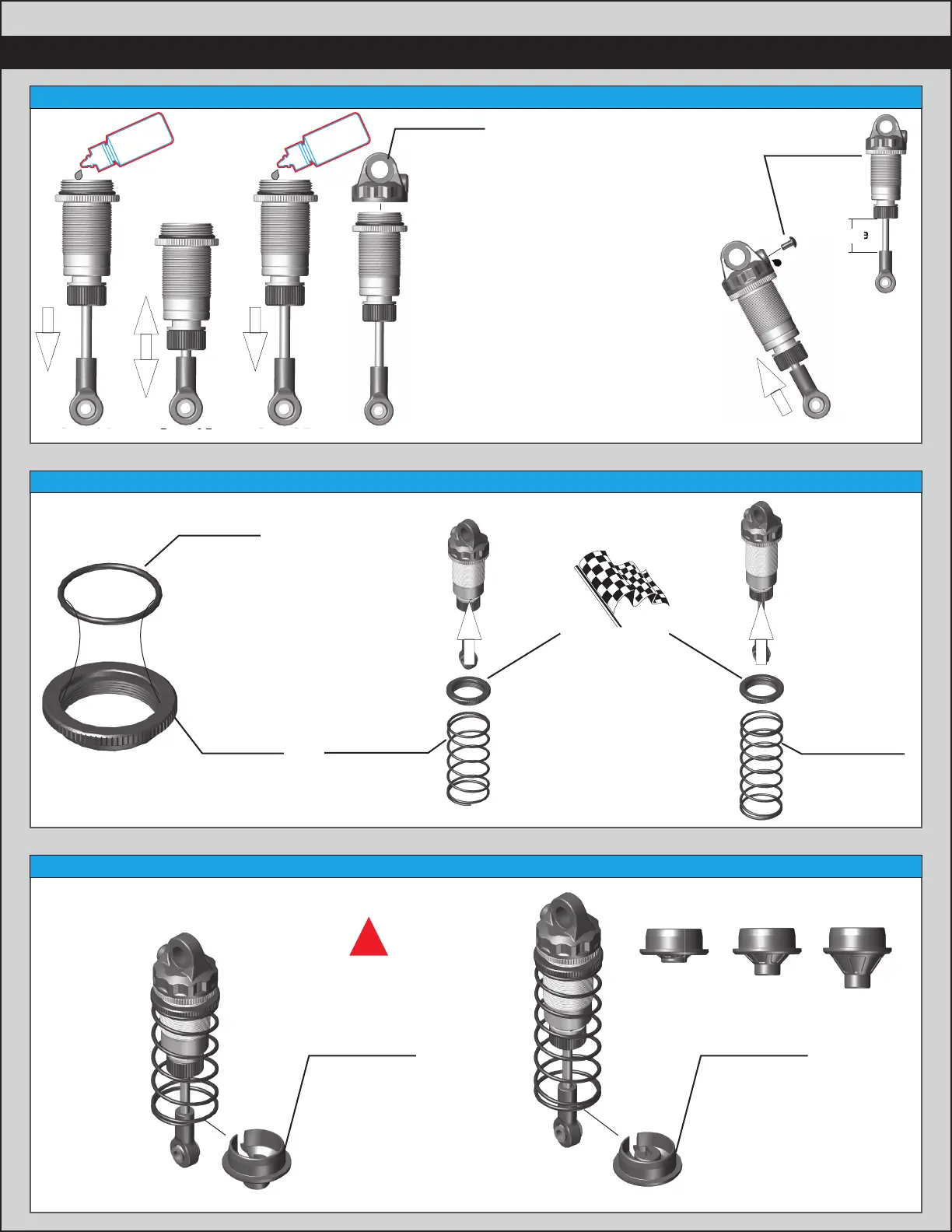

Shock Bleeding Steps:
1. Before assembly, get each bleed screw and thread
it 1-2 turns into the shock cap, then remove the
screw. This will make it easier when you are bleed-
ing your shocks.
2. Pull shock shaft down.
3. Fill shock body 3/4 full with silicone shock fl uid.
4. Slowly move the shock shaft up and down to
remove air from under the piston.
5. Wait for bubbles to come to surface.
6. Fill shock body to top with silicone shock fl uid.
7. Place a drop of oil in the cap and on cap threads.
8. Install cap (without bleed screw) and tighten
completely.
9. Slowly compress shaft all the way to bleed excess
silicone shock fl uid out the hole in the cap (use rag
around shock to catch excess fl uid).
10. Install M2x4mm button head screw until snug
while shaft is fully compressed.
Steps 2-3
Steps 6-7
Steps 4-5
31510
M2 x 4mm
BHCS
91926
13mm Shock
Cap
Stroke
Front: 23.5mm
Rear: 27.5mm
Stroke
Stroke
91928
13mm
Threaded
Collar
91996
13mm
Threaded
Collar
O-ring
x4x4
x4x4
Build x2 front shocks
Build x4
Build x2 rear shocks
91945
13mm Front
Spring, Orange
(4.30lb)
91949
13mm Rear
Spring, Gray
(2.00lb)
Racers Tip:
Use your fi nger to rub shock
fl uid on the O-ring for smoother
adjustment!
91966
13mm Shock Spring
Cup
(Rear - 0mm)
91966
13mm Shock Spring
Cup
(Front - 5mm)
#91966 13mm Shock Spring Cups
0mm 5mm 9mm
SHOCK
FLUID
SHOCK
FLUID
!
Screw collars to top.
Use to adjust ride
height.
