Associated Electrics RC10 B74.2D TEAM KIT - Page 18

18

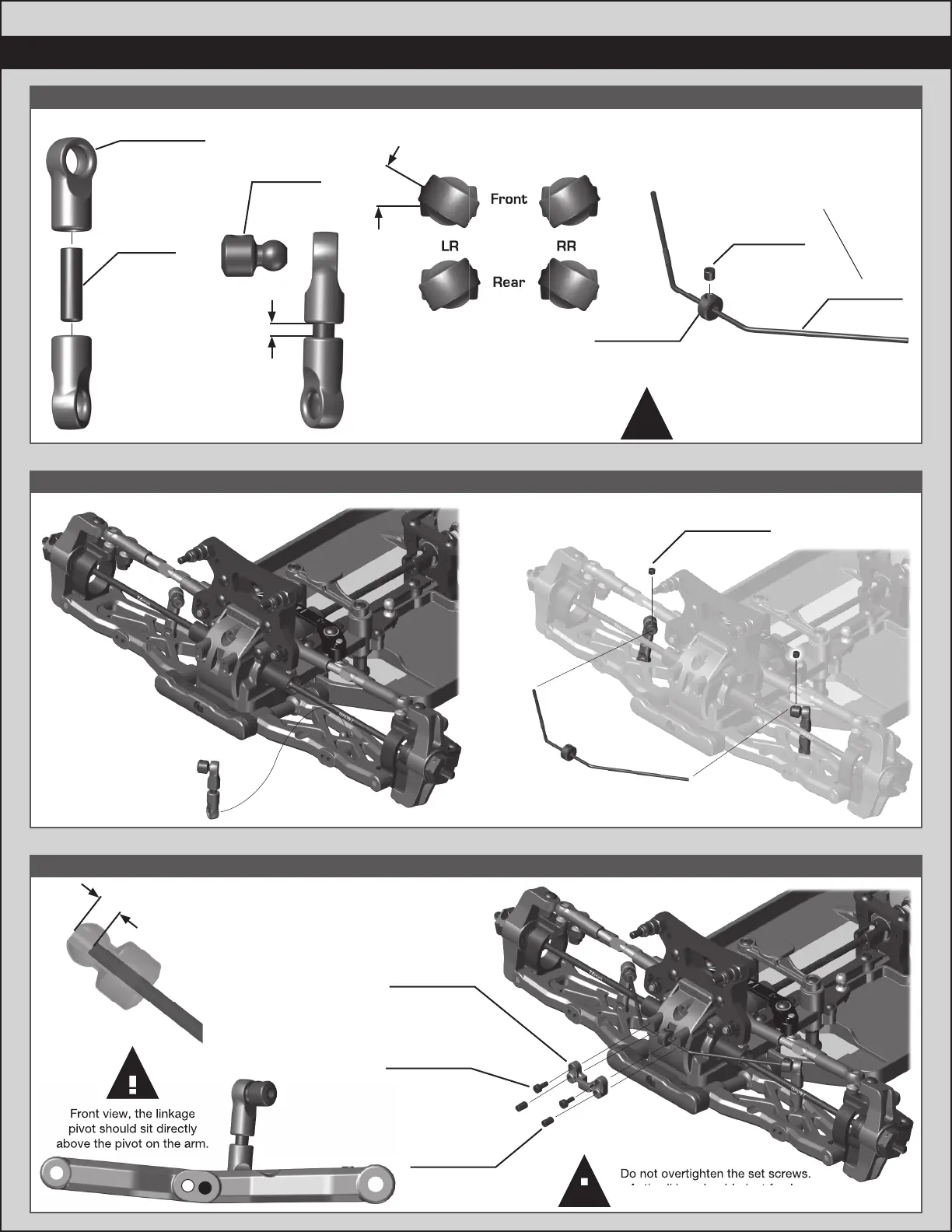

:: :: Bag 12 -Bag 12 - Step 1 Step 1
:: :: Bag 12 -Bag 12 - Step 2 Step 2
:: :: Bag 12 -Bag 12 - Step 3 Step 3
Do not overtighten the set screws.
Anti-roll bar should pivot freely.
Front view, the linkage
pivot should sit directly
above the pivot on the arm.
!
!
2mm
Do not overtighten the set screws.
Anti-roll bar should pivot freely.
!
x2x2
92164
Anti-roll bar
collet
92164
anti-roll
bar pivot
92291
Anti-roll bar
25225
M3x3mm
set screw
91997
B6.1 ball
ends
4671
M3x10mm
set screw
2mm
Front
RFLF
RRLR
Rear
Front
LR
Rear
Front
Front
LR
RR
Rear
RR
Rear
30°
Build x4
Put this screw at 45° angle so you can
easily access the screw while the bar
is installed.
1.3mm - Rear
1.2mm - Front
!
Front view, the linkage
pivot should sit directly
above the pivot on the arm.
!
x2x231500
M3x2.5mm
set screw
x2x2
x2x2
89219
M3x5mm
set screw
31511
M2x5mm
SHCS
92309
Gearbox
anti-roll bar
cap
