Associated Electrics RC10 Classic - Page 6

6

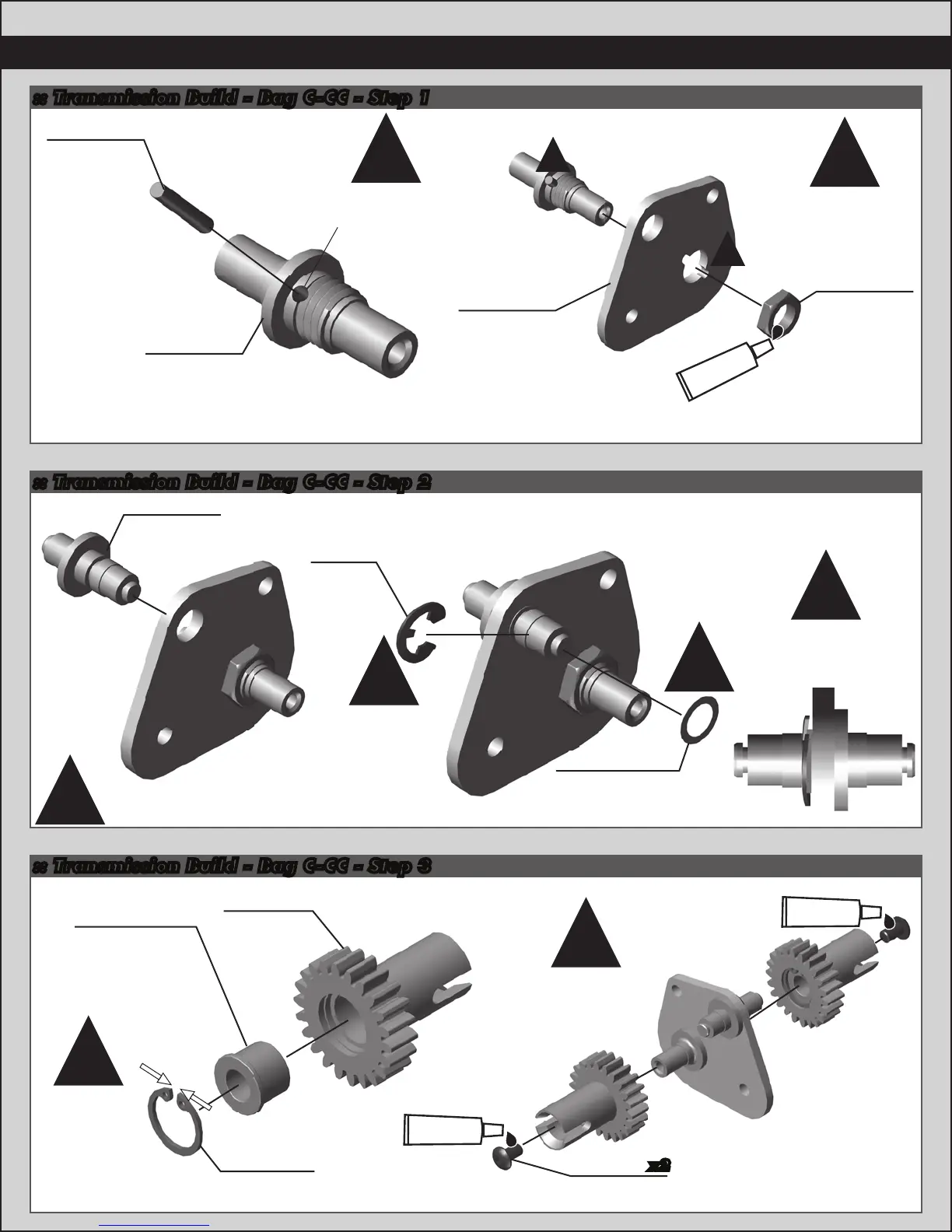

:: Transmission Build - Bag C-CC - Step 1
:: Transmission Build - Bag C-CC - Step 2
:: Transmission Build - Bag C-CC - Step 3
Build 2
Key drive gear pin
into slot on spine
plate!
!
6604
Drive gear
pivot pin
6609
Drive gear
pivot
6610
RC10 idler
gear pivot
6604
Bowed
e-clip
6604
Washer
5mmx 0.17mm
6630
Oilite bushing
3/16x5/16x1/4
6611
RC10
spine
plate
6609
Drive gear
pivot nut
!
!
1
2
Curved side of
bowed E-Clip
should point
outwards!
NOTE: Install washer (1)
before bowed e-clip (2)
!
6604
RC10 internal
retaining clip
6920
4-40 x 3/16
BHCS
6612
RC10 axle
drive gear
x2
Remove any burrs
if necessary with
hobby knife!
!
#1596
thread lock
#1596
thread lock
#1596
thread lock
Snap internal
retaining clip
into groove
with internal
snap ring
pliers!
Racer’s Tip:
Use a small amount of
CA glue on idle pivot hole.
A little in-out
play is normal on
the outdrives
!
!
!
