Associated Electrics RC10 Classic - Bag C-CC

8

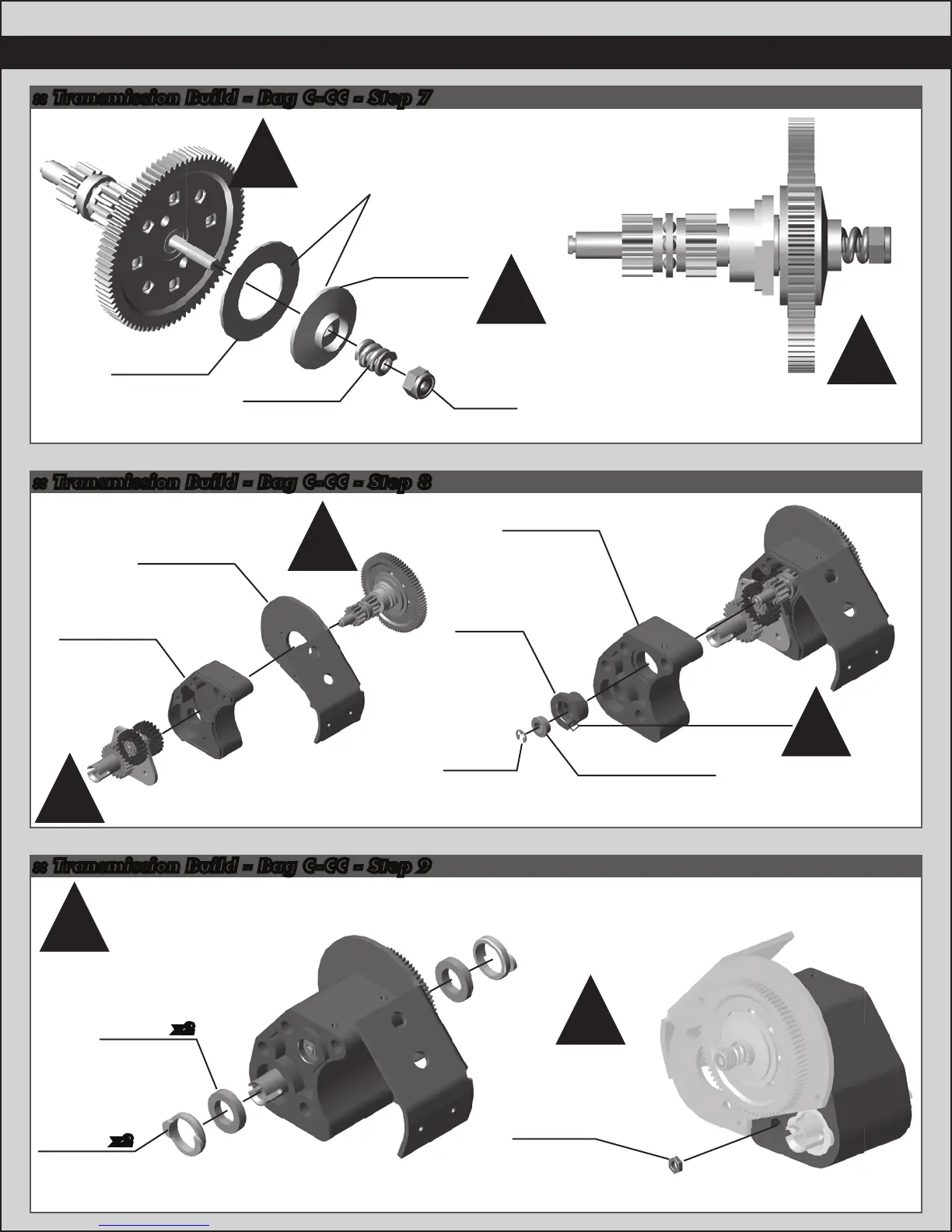

:: Transmission Build - Bag C-CC - Step 7
:: Transmission Build - Bag C-CC - Step 8
:: Transmission Build - Bag C-CC - Step 9
6624
RC10 diff
outer hub
6629
5-40
locknut
Press nut all the
way inside the
transmission
case.
Racer’s Tip:
Use a dab of CA glue
on the felt seals.
!
!
7260
4-40
plain nut
(small)
6625
Diff drive
rings
6605
RC10
transmission
case
(right)
6607
RC10
motor
plate
6628
RC10 diff
spring
6605
RC10
bearing
adapter
6630
Oilite bushing
3/16 x 5/16 x 1/8
6299
E-clip
(small)
6633
RC10 felt
seal
6633
RC10
felt
x2
x2
6605
RC10
transmission
case
(left)
Lock nut should
be flush with
shaft to start!
!
Make sure diff
rings sit flat on hub!
Cutting a slot in the
bearing adapter
will make e-clip
installation easier!
!
!
1
2
Caution:
Do not get any grease
on the back side of the
diff drive rings or the
outer hub.
!
