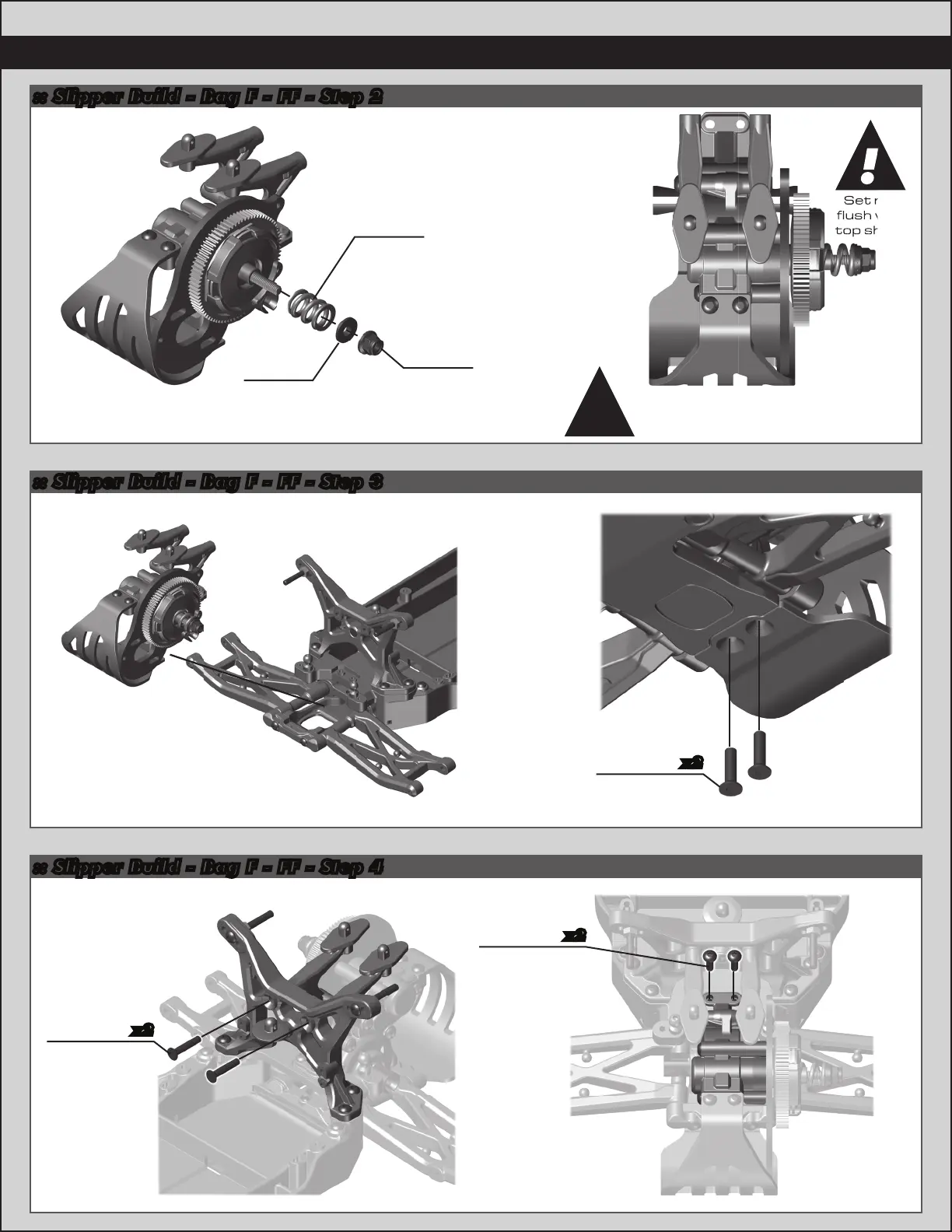

:: Slipper Build - Bag F - FF - Step 4
25204
M3 x 16mm
FHCS
25211
M3 x 10mm
BHCS
x2
x2
:: Slipper Build - Bag F - FF - Step 3
25203
M3 x 12mm
FHCS
x2
:: Slipper Build - Bag F - FF - Step 2
Set nut
flush with
top shaft.
See page 18 for gear
mesh, and slipper clutch
setting instructions!
!
!
9739
Slipper
Spring
91148
M4 Locknut,
with flange
and knurl
Set nut
flush with
top shaft.
!
91423
Slipper
Spring
Adapter
